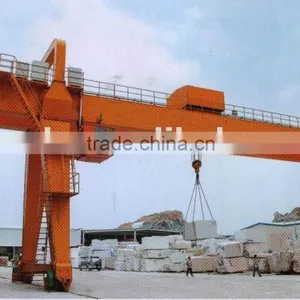

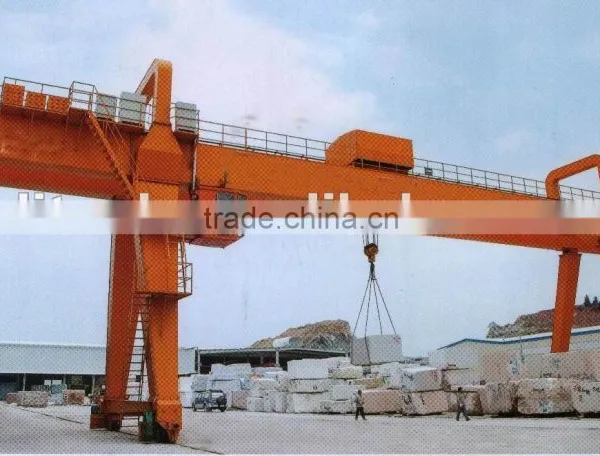

Help CenterTJQC-Crane(5-50/10T)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJ Four-claw Grinding Head,machine Part for Automatic Polishing MachineUS$ 990 - 1,290MOQ: 1 Unit -
Construction Machinery,Horizontal Thin Plate Cutting Machine,stone MachineUS$ 5,500 - 7,500MOQ: 1 Set
-
TJ-150 Drilling MachineNegotiableMOQ: 1 Set
-
TJ45 Stone Automatic Turnover MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
TJ Six-claw Multi-function Grinding Head for Cylinder Head Grinding MachineUS$ 1,200 - 1,800MOQ: 1 Piece
Condition
New
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJQC
Specifications
1.be used in stone factories to lifting stone blocks2.brazing diameter:30cm-2.3m
3.blade symmertry tolerance:less than 0.04mm
| lift weight | central | T | 10 | 20 | 32 | ||
| subaltern | 5 | 5 | |||||
| span | m | 18 | 18 | 18 | |||
| lift speed | central | 11 | 12 | 12 | |||
| subaltern | 14 | 14 | |||||
| working grade | intermediate(A5) | ||||||
| speed | lift | central | m/min | 7.4 | 5.8 | 7.7 | |
| subaltern | 12.6 | 15 | |||||
| dolly working | 45 | 44.6 | 38.6 | ||||
| cart working | 32.5 | 39.5 | 42 | ||||
| electromotor | lift | central | model(KW) | YZR200L-8/15 | YZR250M1-8/30 | YZR280M-8/55 | |
| subaltern | YZR180L-6/15 | YZR180L-6/15 | |||||
| dolly working | YZR132M2-6/3.7 | YZR132M2-6/3.7 | YZR160M1-6/55 | ||||
| cart working | YZR160M2-6/3.7*2 | YZR160L-8/15*2 | YZR160M-6/7.5*4 | ||||
| weight | T | 50.6 | 73.2 | 108 | |||
| max.wheel-pressure | T | 22.9 | 42.1 | 27 | |||
| recommendatory rail | 38KG/M 43KG/M 50KG/M | ||||||
| electrical source | 380V/ 50HZ, 3-phasaA.C. | ||||||
We are the total supplier of stone machine and tools. For more produncts,plesase see our company
website:.
