6" Ploy Solar Cell 3 Busbar

6" Ploy Solar Cell 3 Busbar thumbnail-1
6" Ploy Solar Cell 3 Busbar photo-1
US$ 1.12 - 1.12 MOQ: 1200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
suntech
Model Number:
P156
Contact Supplier Request Quote Chat Now
Unifit Industrial Supply Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
nanjing/nantong/zhangjiagang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name suntech
Model Number P156
Type Other

Specifications

*High efficiency and High power
*Long-term electrical stability
*Lowest price and Fastest delivery
*Good quality

Who are we?



Unifit Industrial Supply Co., Ltd. is a professional exporter of mechanical thermostats, digital thermostats,electric motorized valves, heating accessories, instruments, industrial filters, solar products,  plastic waste and spare parts.  Our main markets cover Asia, North America, the Middle East, Europe and Africa.



Specifications



1. High conversion efficiency
2.Superior quality
3.Lowest pric
4.Prompt delivery

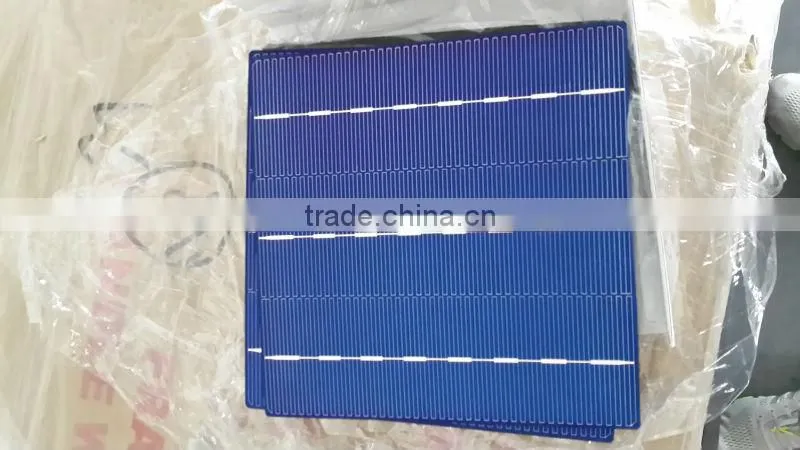

6'' Multi-Crystalline Silicon Solar Cell (3BB)
Physical Characteristics
Dimensions 156x156 mm
Diagonal 220 mm
Cell Thickness 180/200 ± 20μm
Front  Blue silicon nitride anti-reflective coatings
3x1.5mm silver busbar
Back Full-surface aluminum back-surface field
3x3.0mm (silver/aluminum) discontinuous soldering pads









TPB156 conversion rate conversion rate Voltage Current open circuit voltage open circuit voltage
Eff(%) Pm(Wp) Vm(V) Im(A) Voc(V) Isc(A)
TPB156157 15.75 3.856 ~0.502 ~7.683 0.615±5% 8.273±5%
TPB156155 15.5 3.77 ~0.497 ~7.581 0.611±5% 8.174±5%
TPB156152 15.25 3.71 ~0.494 ~7.519 0.608±5% 8.116±5%
TPB156150 15 3.651 ~0.491 ~7.438 0.606±5% 8.043±5%
TPB156147 14.75 3.591 ~0.488 ~7.364 0.604±5% 8.000±5%
TPB156145 14.5 3.529 ~0.487 ~7.242 0.603±5% 7.858±5%
TPB156142 14.25 3.469 ~0.485 ~7.158 0.602±5% 7.791±5%
TPB156140 14 3.409 ~0.482 ~7.072 0.600±5% 7.727±5%
TPB156137 13.75 3.348 ~0.480 ~6.974 0.598±5% 7.639±5%
TPB156135 13.5 3.287 ~0.478 ~6.881 0.596±5% 7.565±5%
TPB156132 13.25 3.227 ~0.476 ~6.779 0.595±5% 7.501±5%
TPB156130 13 3.165 ~0.474 ~6.683 0.594±5% 7.457±5%
TPB156127 12.75 3.104 ~0.472 ~6.583 0.593±5% 7.426±5%
TPB156120 12 2.873 ~0.466 ~6.171 0.591±5% 7.385±5%
Testing range 100mW/cm2,AM1.5,25°C









 6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar







Shipping



1. Goods only shipped after payment is received

2.Usually 1200pcs packed in one carton,10box per carton

3.Pls advise correct address in order to send production efficiency



Shipping will be via DHL,EMS,UPS,FEDEX







6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar6" Ploy solar cell 3 busbar
