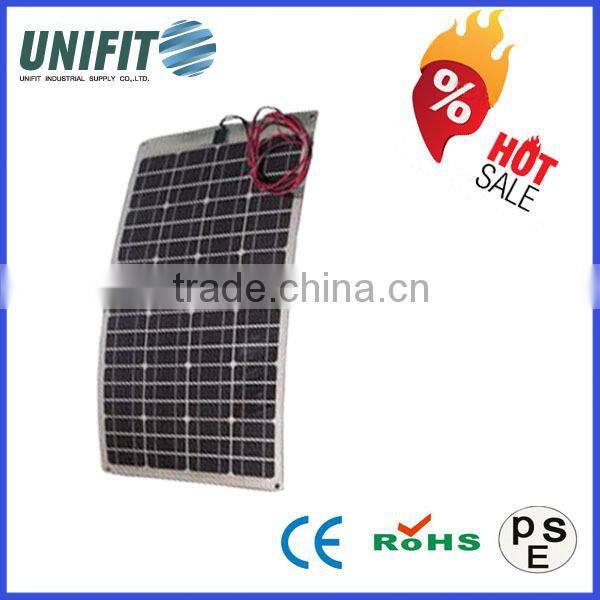

Amorphous Silicon Flexible Solar Panels For Boats & Poly Solar Module 250w With Thin Film
Manufacturer
1. 3.2mm high transmissive Low iron tempered glass.EVA Iaminate with Glass yield long life modules while enhancing cell perfomance
2.Power range 200Wp-250Wp.
3.Bypass diodes to avoid hot-spot effect.
Quality and Safety
1.Rigorous quality control meeting the highest international standards
2.High-transmissivity low-iron tempered glass, strong aluminium frame
3.Using UV-resistant silicon
4.ISO 9001:2008 and ISO 14001:2004
5.IEC61215, IEC61730, Safety Class in conformity to CE
Features
1.High conversion efficiencies resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions
3.Optimized design for ease of soldering and lamination
4.Long-term stability,reliability and performance
Warranties
1.25 years limited product warranty
2.15 years at 90% of the minimal rated power output
3.25 years at 80% of the minimal rated power output
Temperature Coefficient
NOTC(Nominal Operating Cell Temperature) 47 ± 2 ℃
Voltage temperature coefficient(Voc) -0.34% ℃
Current temperature coefficient(Isc) +0.09% ℃
Power temperature coefficient(Pmmp) -0.37% ℃
| Module Size(mm) | 1650×992×50MM | ||||
| Module Array(pcs) | 6×10PCS | ||||
| Size of Cells(mm) | 156× 156 | ||||
| Weight(kgs) | 19.5KGS | ||||
| Tolerance | ±3 % | ||||
| Operation Temp Scope( ℃ ) | -40/+85 ℃ | ||||
| Max. System Voltage | 1000V DC | ||||
| Model No. | Wp(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
| kpv 200p-60 | 200 | 28.5 | 7.02 | 34.2 | 7.80 |
| kpv 205p-60 | 205 | 28.5 | 7.19 | 34.2 | 7.80 |
| kpv 210p-60 | 210 | 29 | 7.24 | 36.0 | 7.82 |
| kpv 215p-60 | 215 | 29 | 7.41 | 36.0 | 8.01 |
| kpv220p-60 | 220 | 29 | 7.59 | 36.0 | 8.19 |
| kpv225p-60 | 225 | 29.5 | 7.63 | 36.6 | 8.24 |
| kpv230p-60 | 230 | 29.5 | 7.80 | 36.6 | 8.42 |
| kpv235p-60 | 235 | 30.0 | 7.83 | 37.2 | 8.46 |
| kpv240p-60 | 240 | 30.0 | 8.00 | 37.2 | 8.65 |
| kpv245p-60 | 245 | 30.0 | 8.17 | 37.2 | 8.74 |
| kpv250p-60 | 250 | 30.5 | 8.20 | 37.8 | 8.85 |
solar panel Pic. and drawing:
International Certification
Product Description
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Huzhou, Zhejiang, China, near Shanghai. You are warmly welcomed to visit us! Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
5. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.
6. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineers team. They can teach you how to install a solar system.
soler cell information
Payment Terms
T/T, L/C, Western Union, Paypal and Escrow are the payment methods we accept at present.
Shipping
Materials in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO, Mearsk and MSC ship to worldwide for safe shipping, so don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details, including your phone number, for easy contacting from shipping company officer.
Important Information
1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.
2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
Feedback
1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you. If you have any questions, please do not hesitate and feel free to contact us.
For more info about our company,please visit:
http://wxunifit.en.china.cn/
