Low Price 2BB/3BB The Solar Cell With 156mmx156mm Cheap Solar Cell For Sale
Manufacturer
1,Components,ultra-white Executed tempered glass+PVB+cell+PVB+tempered glass
Glass+PVB+Cell+PVB+Glass
2,Components with ultra-white Executed tempered glass+PVB+cell+PVB+tempered glass+of PVB+tempered glass
Glass+PVB+Cell+PVB+Glass+PVB+Glass
Quality and Safety
1.Rigorous quality control meeting the highest international standards
2.High-transmissivity low-iron tempered glass, strong aluminium frame
3.Using UV-resistant silicon
4.ISO 9001:2008 and ISO 14001:2004
5.IEC61215, IEC61730, Safety Class in conformity to CE
Features
1.High conversion efficiencies resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions
3.Optimized design for ease of soldering and lamination
4.Long-term stability,reliability and performance
Warranties
1.10 years limited product warranty
2.15 years at 90% of the minimal rated power output
3.25 years at 80% of the minimal rated power output
Format: 156mm x 156mm
Thickness: 190um+-20um
Front(-): 1.7mm bus bars(silver),blue anti-reflecting coating(silicon nirtride)
back(+): 3mm wide soldering pads(silver) back surface field(aluminium)
Size |
156mm x156mm ±0.5mm | |||||
| Thickness | 190um ± 20um | |||||
| Front surface(-) | 1.7mm bus bars(silver), blue anti-reflecting coating(Silicon nitride) | |||||
| Back surface (+) | 3mm wide soldering pads(silver) back surface field(Aluminum) | |||||
| TkVoltage | -0.351%/K | |||||
| TkCurrent | +0.035%/K | |||||
| TkPower | -0.47%/K | |||||
| Efficiency(%) | Pmp(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | FF(%) |
| 16.25-16.50 | 3.99 | 0.516 | 7.731 | 0.621 | 8.262 | 77.77 |
| 16.00-16.25 | 3.92 | 0.512 | 7.660 | 0.616 | 8.195 | 77.68 |
| 15.75-16.00 | 3.86 | 0.509 | 7.584 | 0.613 | 8.135 | 77.43 |
| 15.50-15.75 | 3.80 | 0.505 | 7.525 | 0.611 | 8.080 | 77.04 |
| 15.25-15.50 | 3.74 | 0.502 | 7.458 | 0.609 | 8.053 | 76.20 |
| 15.00-15.25 | 3.68 | 0.500 | 7.365 | 0.609 | 8.038 | 75.12 |
| 14.75-15.00 | 3.62 | 0.498 | 7.271 | 0.607 | 8.045 | 74.23 |
| 14.50-14.75 | 3.56 | 0.497 | 7.160 | 0.604 | 8.040 | 73.30 |
| 14.25-14.50 | 3.50 | 0.494 | 7.091 | 0.603 | 8.080 | 71.84 |
| 14.00-14.25 | 3.44 | 0.494 | 6.960 | 0.601 | 8.065 | 70.91 |

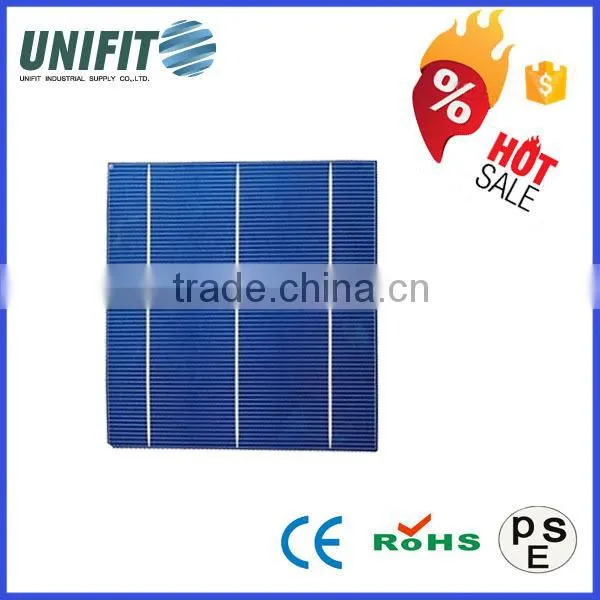

solar cell Pic. and drawing:
Product Description
Earnest Production
Shipping
Materials in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO, Mearsk and MSC ship to worldwide for safe shipping, so don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details, including your phone number, for easy contacting from shipping company officer.
Important Information
1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.
2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
Feedback
1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you. If you have any questions, please do not hesitate and feel free to contact us.
