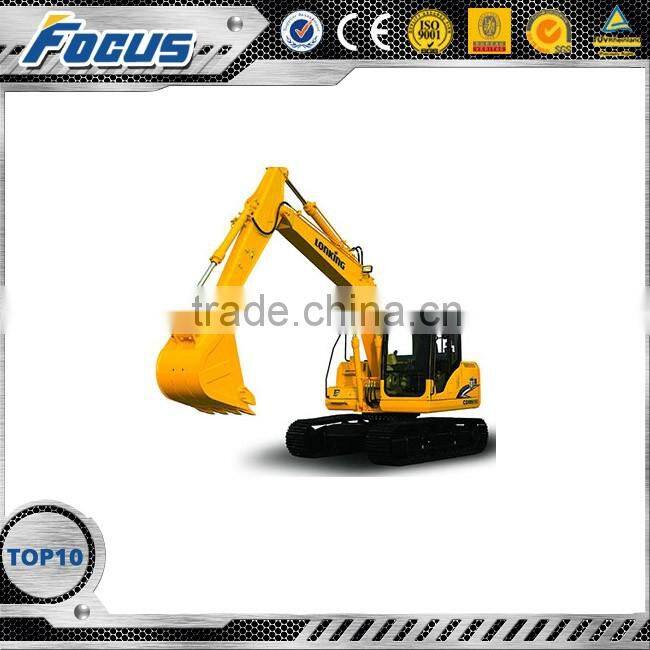

Help CenterCDM6150 Swing Speed 11.9 Rpm Compact Excavator
Related Products
-
CDM6150 Swing Drive Unit 1.8 L Used Excavators,compact Excavator AttachmentsUS$ 110,000 - 120,000MOQ: 1 Unit -
LG6300E SDLG Chinese Excavator With Traveling Speed 3.2/5.1km/hUS$ 110,000 - 120,000MOQ: 1 Unit
-
LG6300E Top-level Configuration SDLG Excavator for SaleUS$ 110,000 - 120,000MOQ: 1 Unit
-
2016 New LG6300E Crawler Excavator SDLGUS$ 110,000 - 120,000MOQ: 1 Unit
-
LG6300E Excavator SDLG With Overall Poerating Weight 29200~29330kgUS$ 110,000 - 120,000MOQ: 1 Unit
Lonking Crawler Excavator
Specifications |
CDM6150 |
||
Engine |
Model |
Cummins4BTAA3.9-C |
CumminsQSB4.5 |
Rated power |
86 kW (117hp) /2200 rpm |
90 kW (122hp) /2200 rpm |
|
Max. torque |
424 N.m/1600 rpm |
489 N.m/1500 rpm |
|
Bore× Stroke |
102mm×120mm |
107 mm×124 mm |
|
Displacement |
3.9 L |
4.5 L |
|
Comment |
Maintain the rated power at 2300m elevation. |
||
Operating weight |
Summary |
Operating weight:14000kg The operating weight includes the weight of 4600 mm standard boom, 2500 mm standard arm,0.56m3 standard bucket, the rest standard configuration units.. |
|
Ground pressure |
45 kPa |
||
Fluid capacity |
Fuel tank |
270 L |
|
Cooling system |
23 L |
||
Engine oil |
14 L |
||
Swing drive unit |
1.8 L |
||
Traveling gear |
2×2.5 L |
||
Hydraulic oil tank |
159 L |
||
Swing mechanism |
Summary |
High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by available when the swing control lever is in neutral position. |
|
Swing speed |
11.9 rpm |
||
Travel drive |
Summary |
The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged road surface. The motor inside is provided with running and stop and the reliable braking. |
|
Taveling speed |
3.34 -5.5 km/h |
||
Gradeability |
35°(70%) |
||
MaximumTraction |
113 kN |
||
Traveling mechanism |
Standard track shoe width |
500 mm |
|
No. of track shoe |
43 (each side) |
||
No. of carrierrollers |
2 (each side) |
||
No. of track rollers |
7 (each side) |
||
Hydraulic system |
Main pump |
Duplex axial variable plunger pump |
|
Pilot pump |
gear pump (integrated in main pump) |
||
Max. flow of system |
2×120 L/min |
||
Max. pressure of equipment |
34.3 MPa |
||
Max. pilot pressure |
3.9 MPa |
||
Operating equipment |
Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while foot pilot valve is provided with the lever The traveling gear shift adopts the solenoid switch control. |
||
Electrical system |
System voltage:24 V Battery:12 V,120 A×2 |
||
