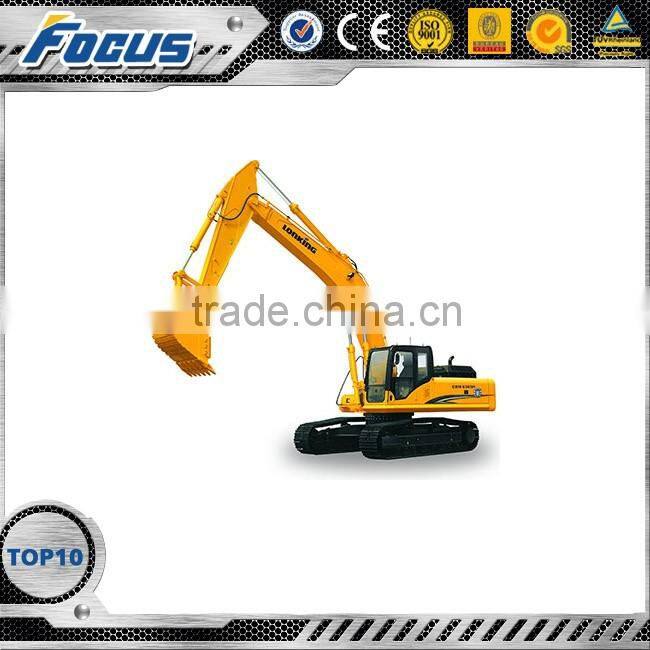

Help CenterCDM6485H Fuel Tank 655 L Smallest Excavator,used Excavator Sales
Related Products
-
CDM6485H Excellent Value Excavators Operating Weight 34000kgUS$ 110,000 - 120,000MOQ: 1 Unit -
CDM6485H Excellent Value for Money Excavator Truck,compact Excavators for SaleUS$ 110,000 - 120,000MOQ: 1 Unit
-
CDM6485H Engine Oil 40 L Excavator Prices Environmental Carbon ExcavatorUS$ 110,000 - 120,000MOQ: 1 Unit
-
CDM6485H Engine Oil 40 L Excavator Prices Operating Weight 34000kgUS$ 110,000 - 120,000MOQ: 1 Unit
-
CDM6485H Engine CumminsQSM11 Compact Excavator Sales,demolition Excavator for SaleUS$ 110,000 - 120,000MOQ: 1 Unit
Lonking Crawler Excavator
Specifications |
CDM6365H |
|
Engine |
Model |
Cummins6C8.3 |
Rated power |
197kW (265hp) /1950 rpm |
|
Max. torque |
1219/1300 |
|
Bore× Stroke |
114mm × 135mm |
|
Displacement |
8.3 L |
|
Comment |
Maintain the rated power at 2300m elevation. |
|
Operating weight |
Summary |
Operating weight:34000kg The operating weight includes the weight of 6470mm standard boom, oil, coolant, the full diesel oil tank and the rest standard configuration units. |
Ground pressure |
68 kPa (Lengthened type:70kPa) |
|
Fluid capacity |
Fuel tank |
580 L |
Cooling system |
33 L |
|
Engine oil |
35 L |
|
Swing drive unit |
7.2 L |
|
Traveling gear |
2×11 L |
|
Hydraulic oil tank |
530 L |
|
Swing mechanism |
Summary |
High torque plunger motor and 2-stage planetary reducer drive.Brake inside loading motor is applied by spring and released by hydraulic unit. neutral position. |
Swing speed |
9.5 rpm (Lengthened type:7.5 rpm) |
|
Travel drive |
Summary |
The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track motor inside is provided with the service brake and shock absorption |
Taveling speed |
3.25 - 5.43 km/h |
|
Gradeability |
35°(70%) |
|
MaximumTraction |
298kN |
|
Traveling mechanism |
Standard track shoe width |
600 mm |
No. of track shoes |
48 (each side) |
|
No. of carrierrollers |
2 (each side) |
|
No. of track rollers |
8 (each side) |
|
Hydraulic system |
Main pump |
Duplex axial variable plunger pump |
Pilot pump |
Gear pump (integrated in main pump) |
|
Max. flow of system |
2×340 L/min |
|
Max. pressure of equipment |
34.3 MPa |
|
Max. pilot pressure |
3.9 MPa |
|
Operating equipment |
Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever is provided with the lever joystick to control the machine the solenoid switch control. |
|
Electrical system |
System voltage:24 V Battery:12 V,120 A×2 |
|
