Specifications
Gang saw for granit1.Max. Block Size(mm) :3,300X4,500X2,100
2.Total weight (Kg) :85000
3.High quality and efficiency

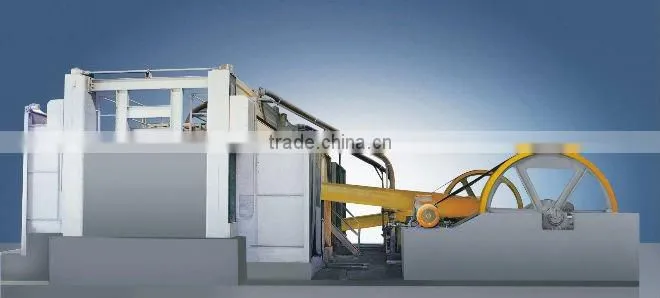

TJKD 60 Granite Gang Saw Machine
1.This device has a high-effciency,low power consumption main motor to enable long run times under a full load.
2.The big wheel improves running stability,reduces electricity consumption,and ensures high quality and efficiency.
3.The longer swinging arm and longer stroke of blade frame improve the cutting efficiency.
4.The PLC controller ensures that the motor runs under constant power.It can adust the speed of the blade frame according to the hardness of the stone.
5.The length of the pole is adustable to ensure stable cutting.
6.Advanced force analysis soft ware regulates the main components,and ensures the highest working efficiency.
| Model | TJKD-160 | ||||
| Max. Block Size(mm) | 3300X4500X2100 | ||||
| Number of blade saw | 160 | ||||
| Diameter of fly-wheel(mm) | 3920 | ||||
| Weight of fly-wheel(T) | 10 | ||||
| Stroke of blade frame(mm) | 700 | ||||
| Power of fly-wheel motor(kW) | 90 | ||||
| Power of rapid elevation(kW) | 5.5 | ||||
| Power of slip-pump pump(kW) | 45 | ||||
| Power of slow speed elevation(kW) | 1.5 | ||||
| Power for sand spreader(kW) | 3 | ||||
| Total installed power(kW) | 150 | ||||
| Overall dimensions(mm) | 17165×8340×6000 | ||||
| Total weight (Kg) | 85000 |
QUALITY CONTROL:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
We are the total supplier of stone machine and tools. For more produncts,plesase check out our company website:. Thanks for your attention to our company!
