The Best Ultrasonic Thickness Gauge Meter

Specifications

Specifications

ultrasonic thickness gauge meter

• Technique: pulse echo with dual probe

• Display: 4 digits LCD with backlight

• Measuring range: 0.8 to 225.0mm

• Resolution : 0.01mm 0.8-99.99mm, 0.1mm 100.0-225.0mm

• Velocity range: 500-9999m/sec.

• Display circle: 1 sec.

• Coupling indication

• Memory: 40 data can be stored and re-readable

• Units: mm or inch

• Low battery indicator on LCD

• Auto shut-off: after 5 min. of non-use

• Power: 2 ea. 1.5V AA alkaline cells

• Operating temperature: 0-40°C

• Operating humidity: 20-90%RH

• Size: 124x67x30mm

• Weight: 240g

ultrasonic thickness gauge meter

ultrasonic thickness gauge meter

ultrasonic thickness gauge meter

ultrasonic thickness gauge meter

Apply to

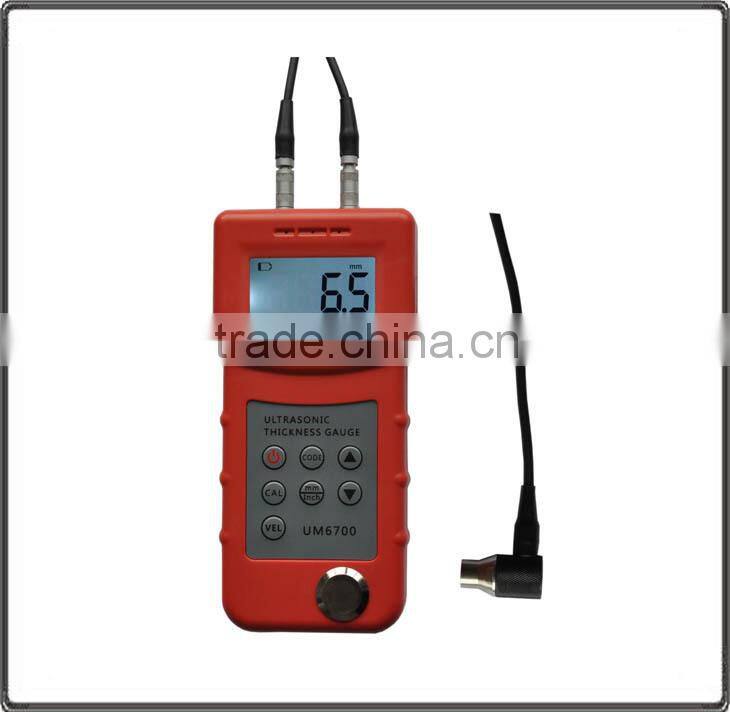

6700 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.
