Specifications
1. High frequency welding machine
2. automatic slide table
3. 2-station operation
Adv.: convenient, efficient, safe

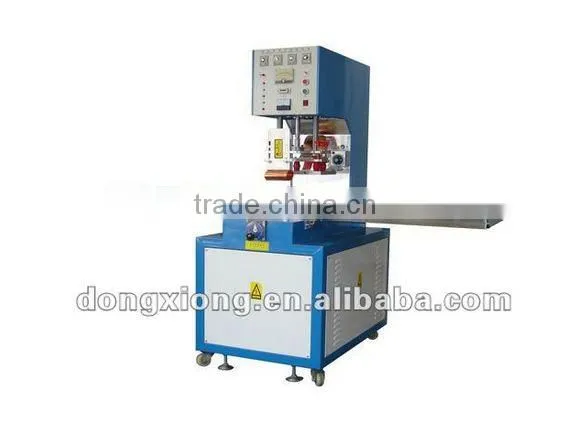

5KW High Frequency Blister Sealing Welding Machine
FEATURE:
1. Automatic high frequency welding machine
2. Pneumatic Cylinder
3. Automatic slide table
4. 2-station operation
5. special for pvc plastic welding
Adv.: convenient, efficient, safe, steady.
SPECIFICATION:
| Model | DXHT5-1-5KW | DXHT5-1-8KW | DXHT5-1-8KWA | DXHT5-1-10KW | |||
| Output power | 5KW | 8KW | 8KW | 10KW | |||
| Voltage | 380v | 380v | 380v | 380v | |||
| Frequency | 27.12MHZ | 27.12MHZ | 27.12MHZ | 27.12MHZ | |||
| Electron tube | 7T85 | 7T69 | 7T69 | E3069 | |||
| Welding capacity | 350 x 200mm | 600 x 400mm | 600 x 400mm | 650 x 450mm | |||
| Distance between two electrodes | 150mm | 150mm | 150mm | 150mm | |||
| Stroke | 200mm | 200mm | 200mm | 200mm | |||
| upper electrode | 350x200mm | 600X400mm | 600X400mm | 650 x 450mm | |||
| lower electrode | 600X400mm | 800X570mm | 650X450mm | 700X500mm | |||
| G.W. | 400.00 kgs | 470.00 kgs | 520.00 kgs | 700.00 kgs | |||
| Packing Size | 1180x800x1920mm | 1260x1180x1920mm | 1420x1260x1920mm | 1100x1200x2000mm | |||
Applications:

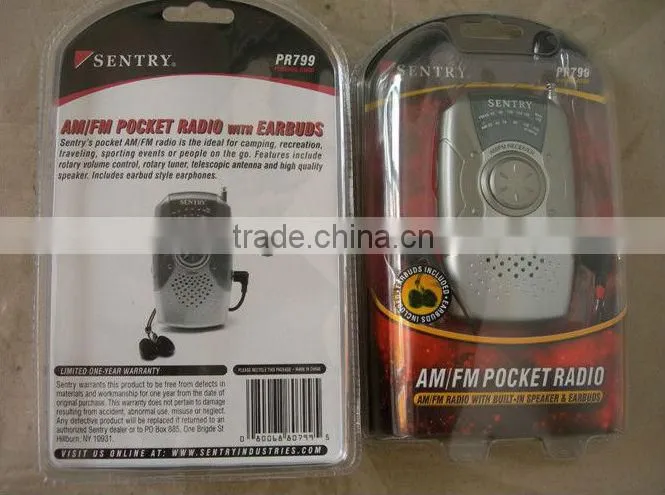

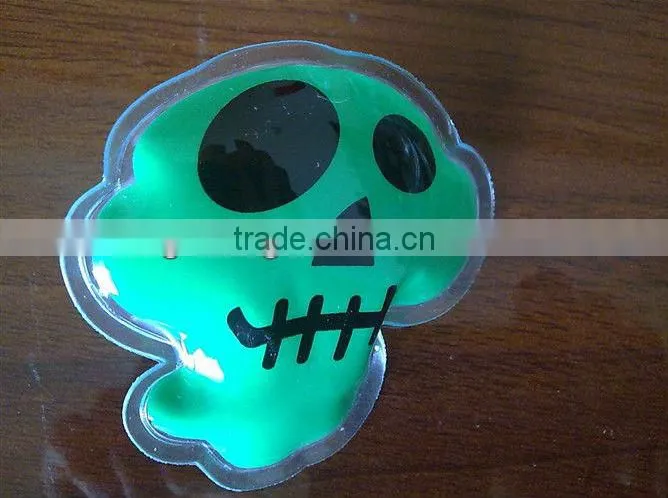

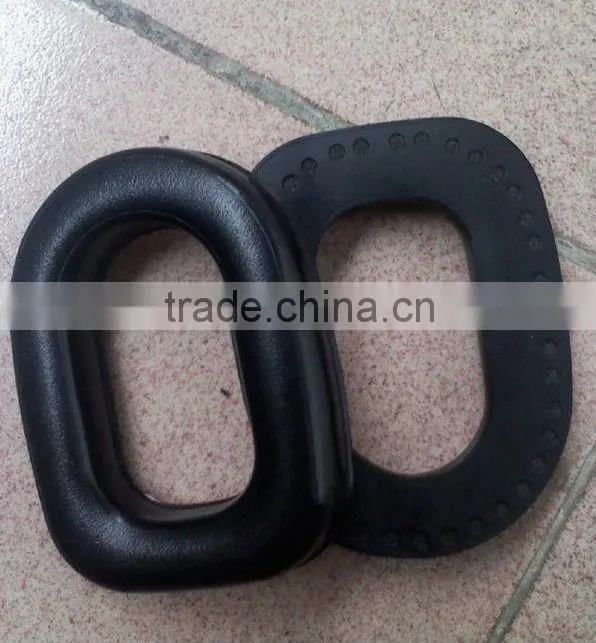

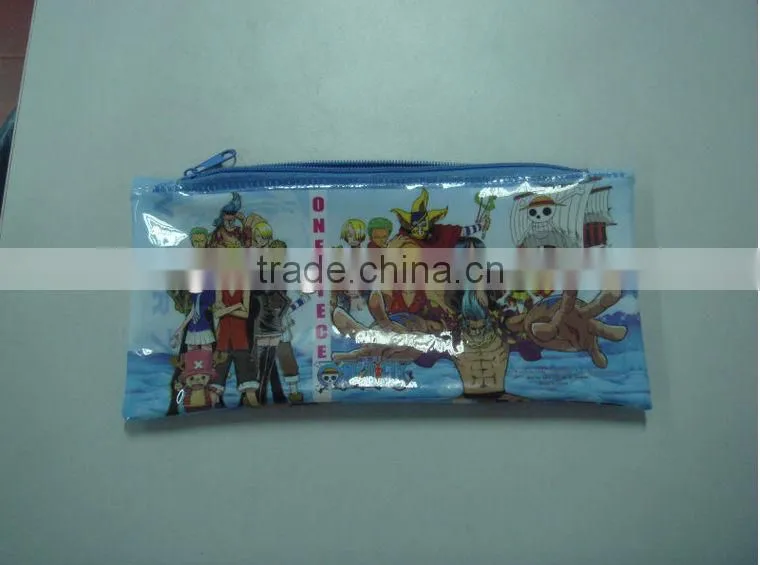

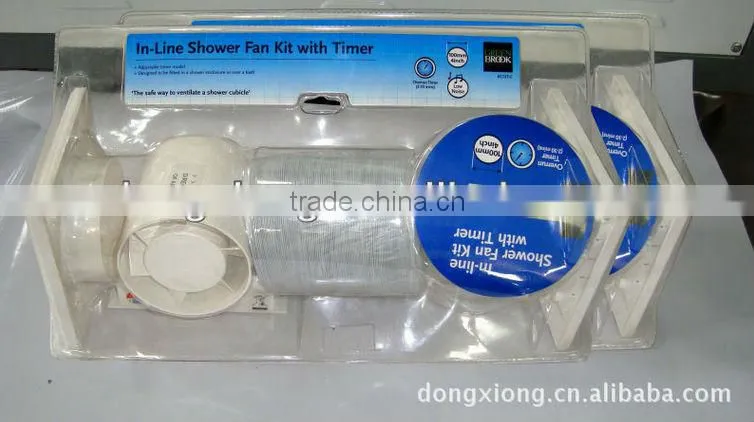

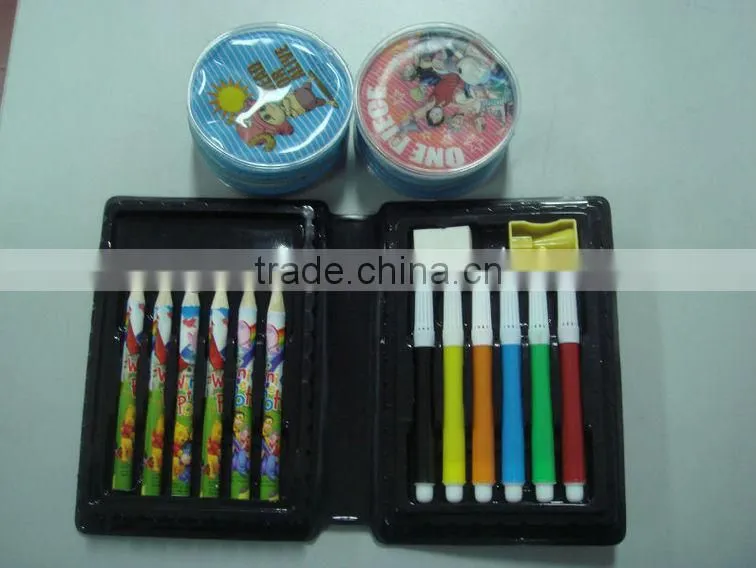

It is widely used in welding, stamping for PVC blister(blister with blister, blister with paper card), trademark, stationery, inflation toy, plastic cover, cooling cushion, and kinds of paking bag. Once installed some device, it can also gold stamp.
Packing :plywood + pallet (photos as below)
COMPANY INTRODUCTION:
Ningbo DAVISON Machinery Manufacture Co., Ltd. integrates research, production and sales such as below machines and parts:
1, high frequency plastic welding machines (high frequency machine),
2, ultrasonic plastic welders,
3, cutting machines,
4, packaging machines,
5, skin packaging films, stretch films, protective film, etc.
Various non-standard machinery equipment and imitation of imported equipment are available to the specific requirements of customers. Moreover the design and producing of moulds as well as sampling service can also be offered by us.
Since foundation in 1999, our company has constantly carried forward rigid quality control, guided by customers demand, aimed for customers' satisfaction, persisting on "quality first, customers utmost", and striving to offer optimal products and efficient after-sales service for customers domestic and oversea!
