Gas Cookstove Battery Non-rechargeable Dry Cell Size D/R20

Quality

With over 18 years' experience in battery business, we guarantee each single piece of battery is reliable in quality.

Service

Efficient and excellent service is the basic requirement you can expect from us.

Responsibility

Your satisfaction with our batteries and our service is our responsibility.

Art.

No.

Type

Nominal Voltage
(V)

Shelf Life

(Month)

Test Conditions

Discharge Time

IEC Standard(IEC 60085-2:2007)

EVERBRIGHT

1131

R20S

D

UM-1

1.5

24

20±2°C,3.9Ω, 24h/d, E.P.V. 0.9V

-----

≥240 Min

20±2°C,10Ω, 4h/d, E.P.V. 0.9V

1080 Min

≥1140 Min

Shrink pack

2 PCS

Inner Box

20 PCS

Colorful carton

240 PCS

Gross weight

18.00KGS

Net weight

19.00KGS

Measurement

345X280X205MM

1X20’FCL container

1,300 Cartons

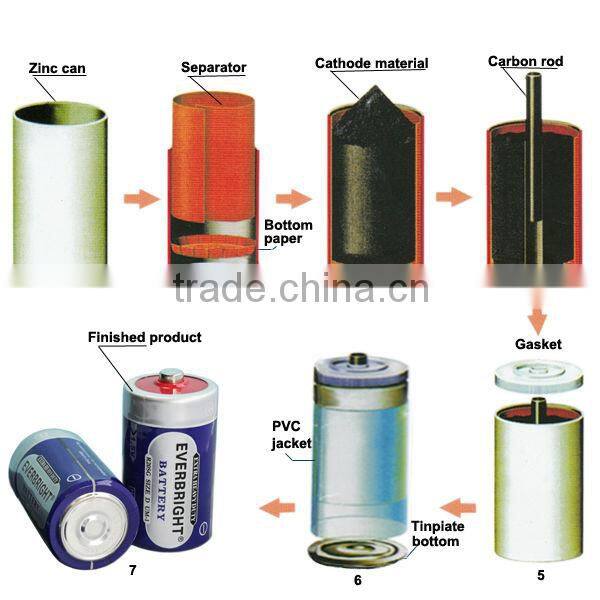

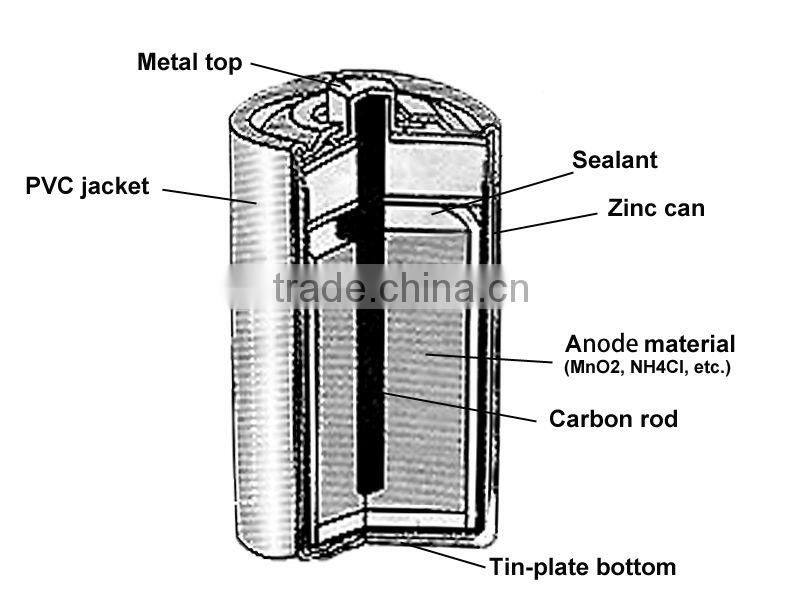

1

Zinc can

The zinc can is the negative terminal and anode material

2

Inserting the separator

The separator and the bottom paper are inserted to prevent battery short-circuit between the positive and the negative electrode.

3

Filling cathode material

The mixture of manganese dioxide, electrolyte and others are filled as the cathode material

4

Inserting carbon rod

The carbon rod for collecting electricity is inserted into the middle of the battery

5

Sealing

The plastic gasket for sealing is fitted to prevent leakage and water evaporation

6

Fitting tinplate bottom and metal jacket

The tinplate bottom and washer are placed on the bottom of zinc can and covered by metal jacket

7

Finished product

The finished battery is packed by shrink after inspecting on its voltage, current and appearance
