Specifications
Newest Universal Electrical Rotating Cam SwitchWith Keys1, 1P, 2P, 3P, 4P cam switch
2, Kinds of Handles
3, OEM service
Newest Universal Electrical Rotating Cam SwitchWith Keys 20A,25A,32A and 63A
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Introduction:
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
We can equip protective box for 20A,25A,32A and 63A.
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Brief Show:
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Technical Data:
No. |
Tech Parameters |
requirement |
1 |
rated voltage |
below 440V |
2 |
rated current |
10A,20A,25A,32A,63A,125A,160A,315A |
3 |
frequency |
AC50HZ |
4 |
No.of poles |
1P, 2P,3P,4P |
5 |
No.of layers |
make as required with circuit diagram |
6 |
panel size |
48*48mm, 64*64mm |
7 |
Working temperature |
-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
8 |
Working height |
≤2,000m |
9 |
Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
10 |
Instalation conditions |
polution class III |
11 |
colour of handle |
black,white,red,grey |
12 |
Mechanical life |
0.1*106times |
13 |
Electrical life |
0.03*106times |
14 |
Operative frequency |
120times/hour |
15 |
transform angle |
90° |
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Details Show:
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch

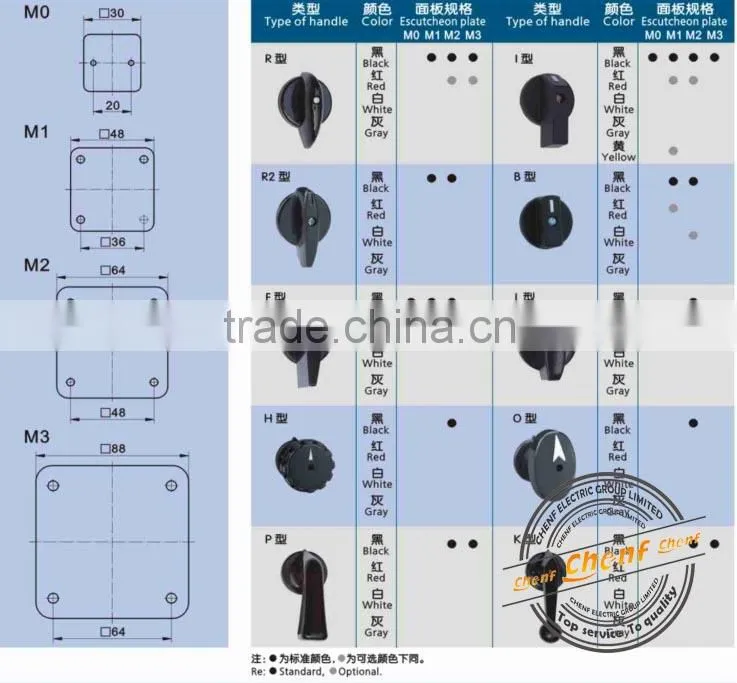

-Plate and Handle:
There have many kinds of Escutcheon Plate annd Handle for your choice.
Handle Type: R, I, F,L, K, P, S, O and So On.
Plate Size: 48*48MM, 64*64MM, 88*88MM, Or can be round Plate.
For more information, pls check the below.
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Mainly Feature:
Current rating: 10A,20A,25A,32A,63A,125A,160A,315A
Function: break and close circuit, changeover circuit.
Application: control switch of switch gear, instrument, manchinery and welding machine.

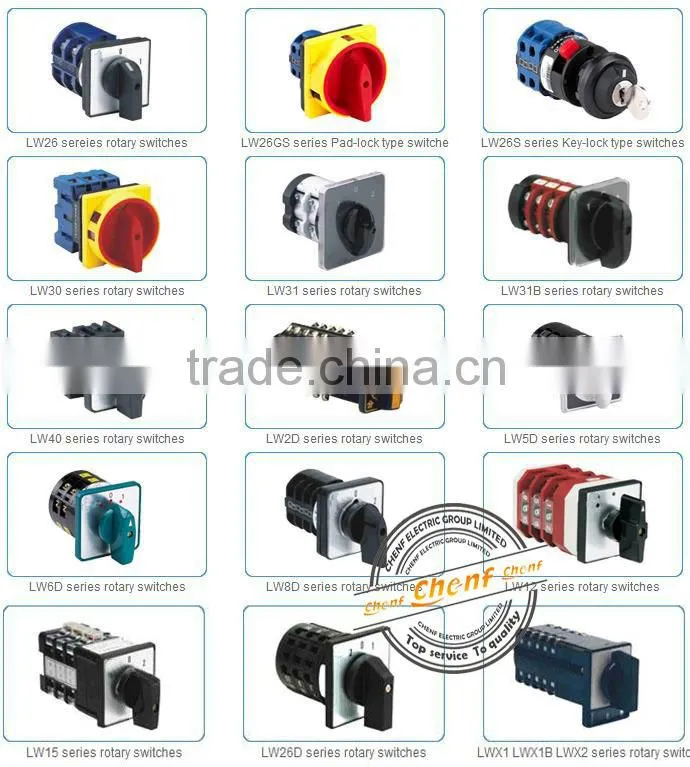

-Other Series:
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-About Us:
- Chenf Electric Group Limited. (called "Chenf" for short) is a wholly owned subsidiary of Chenf Electrical Group Limited. Founded in 2008, we are a modern enterprise specialized in offering one-stop service to customers.
- Chenf concentrates on the design, production and sales of renewable energy product, hi-voltage product, low-voltage product, pneumatic actuator, etc
- Chenf will continue to take "create value for customers.
Enterprise Vision: To create electrical products airline carrier.
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
rotary switch, cam switch, rotary cam switch, changeover switch, universal rotary switch, universal cam switch
-Payment and Shipping:
Q1: Are you a manufacturer?
A1:yes. We have 8 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 48 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the received product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
