Conference System Wireless Microphone Uhf



Oscillation: PLL synthesized

Mode: 2 Channel Receiver, 32 signal channel IR pairing, 0.5MHz step per channel

Support 20 groups or 40 mic transmitters use simultaneously

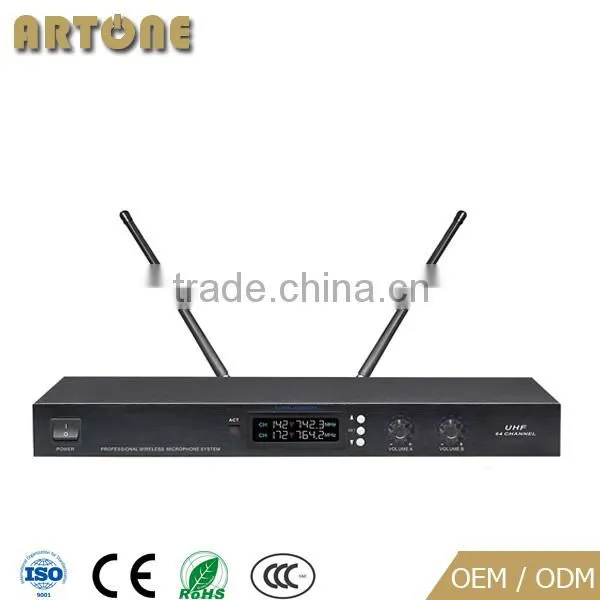

Receiver LCD display shows working channel, frequency, signal indicator,

Carrier Ferquency Range:UHF 500MHz~900MHz

Frequency Stability:±0.001%

Max.eviation Range:±50KHz

Modulation Mode:FM

S/N Ratio:>105dB

T.H.D:<0.5%@1KHz

Sensitivity:1.2/UV @S/N=12dB

Power Supply:DC:12V~17V

Audio Output: Independent Free standing 0~400mV     Mixed style 0~300mV

Transmitter parameter:

Power Supply:DC 3V (1.5V AA*2)

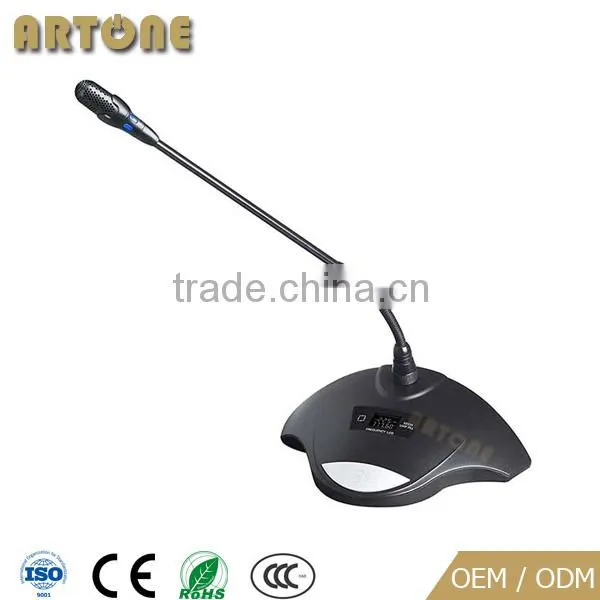

Transmitter LCD display shows working channel, frequency and battery level;

Consume an electricity: 100mA

Carry a frequency:UHF 500MHz~900MHz

Frequency stability:±25KHz

S/N Ratio:>105dB

F/N Ratio:>80dB

Dynamic range:≥100dB

Type: capacitance

polar psttern: One direction

Frequency Response:40Hz~20KHz

Sensitivity:-47±3dB@1KHz

Specification

First Packing: Plastic Bag (to prevent it from scratch);

Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)

Third Packing: Carton Box (For easier delivery and selling)

Forth Packing: General Packing for 5 pieces amplifier, for fast loading and handling
