Specifications
1.Remote control2.light weight, low noise
3.running stability, small size,
4.easy maintenance
Electric Pressure Test Unit Series
Product Description

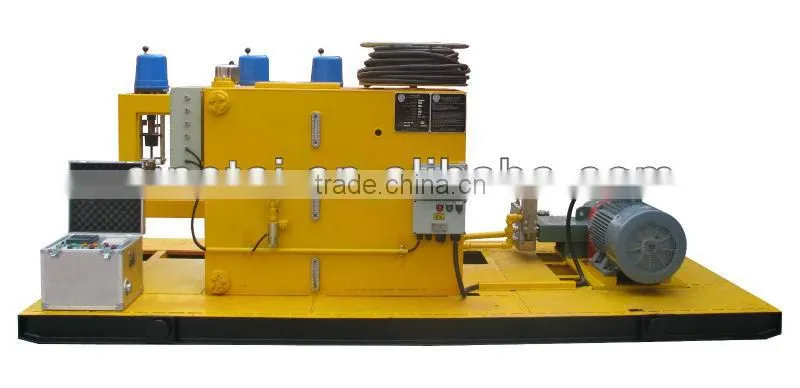

1.DST35-J electric pressure test unit is newly developed large displacement high pressure test equipment and its power system is high pressure plunger pump, which is produced with Germany technology.
2.The plunger pump has much advantage such as running stability, small size, light weight, low noise, easy maintenance and high efficiency.
3.It can be used as effusions in the oil field, power for hydraulic pressure, transportation for liquid, desulfurization and denitrification, cleaning task.

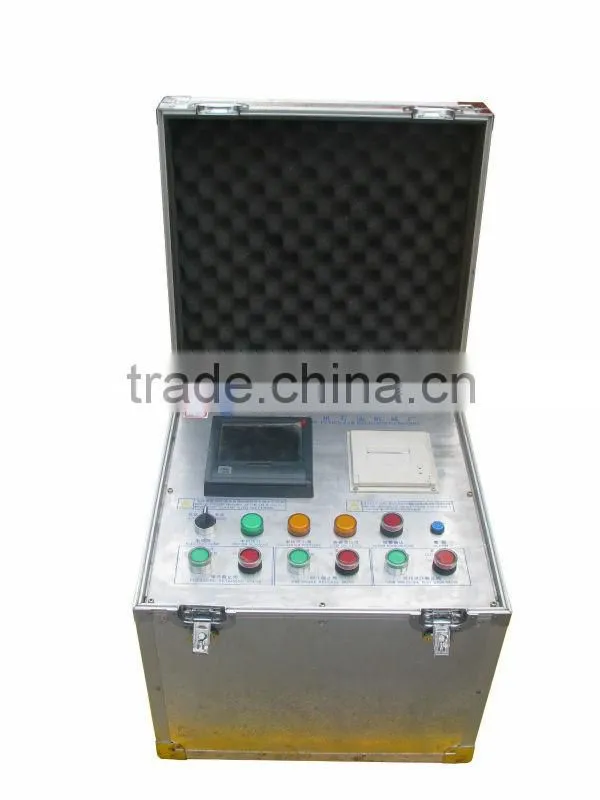

4.This unit is equipped with a remote control panel and a microcomputer recorder.
5.It can be controlled locally and remotely, and monitor, record, print and track the recording value.
It also has overpressure and low liquid level alarm functions to improve the safety of the unit. Attached u-flash disc can transfer the data to a computer so that solve the problem of memory limit. The unit can be used not only in the factory but also in field.
Technical specification and parameter
Item |
Specifications |
Working Pressure |
35MPA(5000PSI) |
Supply Power Voltage |
380VAC,3 Phase 4 Wire |
Motor Power |
30Kw |
Displacement of Electric Pump |
2300L/H |
Transmitter signal |
4~20mA |
Ambient temperature |
-30~55°C |
Ambient humidity |
10~85%RH(Non-condensing) |
Opening pressure of relief valve |
38MPa |
Outlet |
NPT1 Male |
High pressure hose |
Working Pressure:70MPa; ID:12.7mm Outlet:NPTI Female |
Recording time |
Recording gap 1s Recording time 12d |
