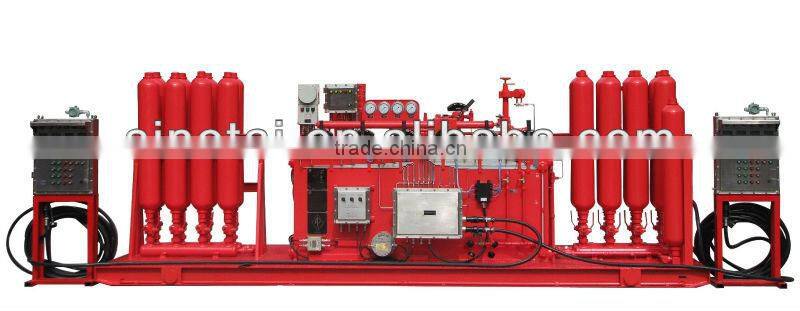

FKDY Electro-Hydraulic Control for Surface Mounted BOP

plywood or iron sheet box

Specifications

FKDY electro-hydraulic control

Product Description:

1.The control system for surface mounted BOP (blowout preventer) stacks is special equipment, which is used to control BOP, hydraulic chock, kill system and diverter equipment, and indispensable equipment for blowout preventer during drilling or workover in petroleum and natural gas industry.

2.The function of the control system for surface mounted BOP stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the control system will renew the hydraulic oil automatically, to keep the pressure in a certain high value.

Main features of the FKDY electro-hydraulic control

1. Remote control distance can reach 200 meters;

2. the control delay time is less than 0.5 second;

3. Whether the BOP is open or close station can be shown real-time.

4. Maintenance operator should be trained professionally.

5. It can record curves of all kinds of pressure on the remote control panel.

Product type and Technical parameters:

FKDY640-6 Control Systems for the BOP

1.Rated pressure: 21MPa

2.Manifold output pressure: 0~14MPa

3.Nitrogen pressure: 7±0.7MPa

4.Range of the manual pressure regulator:0~14 MPa

5.Range of the manual pneumatic regulator:0~18 MPa

6.Air supply pressure: 0.65~0.8MPa

7.Power supply: 380±19V/50HZ

8.Ambient temperature: -40~+40

9.Electric pump power: 42L/M

10.Pneumatic pump power: 175×2 M/ punch

11.Motor Power: 18.5KW
