Help CenterPQ-L20 Relief Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Regulating
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Regulating
Pressure
Medium Pressure
Power
Pneumatic
Material
Brass
Temperature of Media
Medium Temperature
Media
Oil
Place of Origin
China
Model Number
PQ-L20
Brand Name
SINOTAI
PQ relief valve |
|
Features In pressure transmission system,pressure relief valve is used to limit the maxiumum pressure in return circuit,in case the pneumatic device,equipment and pipeline cannot work normally.When the pressure exceed the maxiumum pressure ,relief valve begin to exhaust automatically until the pressure below the MAX pressure, when the pressure is lower than max, the valve close automatically. |
Parameter
model |
PQ |
||||
diameter mm |
10mm |
15mm |
20mm |
25mm |
40mm |
pressure range MPa |
0.05---1.00MPa |
||||
temperature |
5---60°C |
||||
I.Symbol
II.Model code

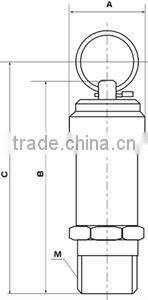

III.Appearance and installing
model |
PQ-L10 |
PQ-L15 |
PQ-L20 |
PQ-L25 |
PQ-L40 |
A |
Ø25 |
Ø27 |
Ø45 |
Ø80 |
|
B |
75 |
130 |
287 |
||
C |
82 |
135 |
300 |
||
M |
ZG3/8" ZG1/2" |
ZG1/2" ZG3/4" |
ZG3/4" |
ZG1" |
ZG11/2 |
