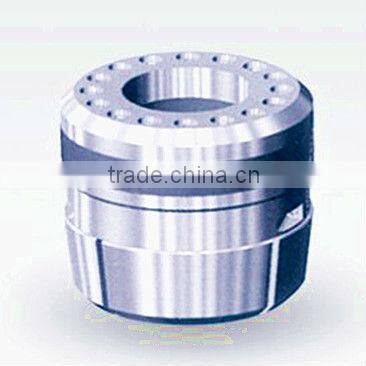

High Quality Slip-type Casing Hanger
- Tianjin Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SINOTAI | |
| Model Number | Model G | Type | Other, Slip-type casing hanger | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Well Drilling |
Standard export package or as consumer's need
Product Description
Specifications
1.Casing hanger2.API Spec 6A
3.Best service,.good quality
4.Competive price
Slip-type casing hanger Model G
Features
1.there are two major types of casing hangers,i.e.the threaded (mandrel) type and the slip-type.
2.the slip-type casing hanger comprises a number of models such as G.W. WD and WE.
3.the model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force.
4.the model W hangers are structured to enable the dead-weight of the casing to energize the seal to function.
5.both the model WE and model G hangers operate by energizing the seal manually.
Product types and specifications:
Rated operating pressure | Nominal bore diameter | Bypass bore diameter | Outer diameter of the casing for the hangerin(mm) |
2000(13.8) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
3000(20.7) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
5000(34.5) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
10000(69.0) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
15000(103.5) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
20000(138.0) | 11"~21 1/4" | 1 13/16"~4 1/16" | 5 1/2"~20" |
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment. Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories. The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
