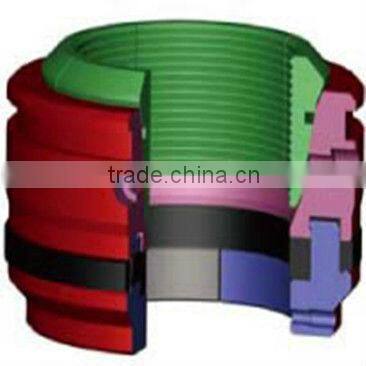

W Type Casing Hanger

Sinotai Petroleum Equipment Co., Ltd.
5Yrs
W Type Casing Hanger thumbnail-1
W Type Casing Hanger photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SINOTAI
Model Number:
Model W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SINOTAI
Model Number Model W
Type Other, Slip-type casing hanger
Machine Type Drilling Equipment
Certification API
Material Carbon Steel
Processing Type Casting
Use Well Drilling

Specifications

1.Slip-type casing hanger
2.API Spec 6A
3.Best service,.good quality
4.Competive price

Slip-type casing hanger Model W

Features

1.there are two major types of casing hangers,i.e.the threaded (mandrel) type and the slip-type.

2.the slip-type casing hanger comprises a number of models such as G.W. WD and WE.

3.the model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force.

4.the model W hangers are structured to enable the dead-weight of the casing to energize the seal to function.

5.both the model WE and model G hangers operate by energizing the seal manually.

Product types and specifications:

Rated operating pressure
psi(MPa)

Nominal bore diameter
in(mm)

Bypass bore diameter
in(mm)

Outer diameter of the casing for the hangerin(mm)

2000(13.8)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)

3000(20.7)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)

5000(34.5)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)

10000(69.0)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)

15000(103.5)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)

20000(138.0)

11"~21 1/4"
(280~540)

1 13/16"~4 1/16"
(46~103)

5 1/2"~20"
(139.7~508)



W Type Casing Hanger
