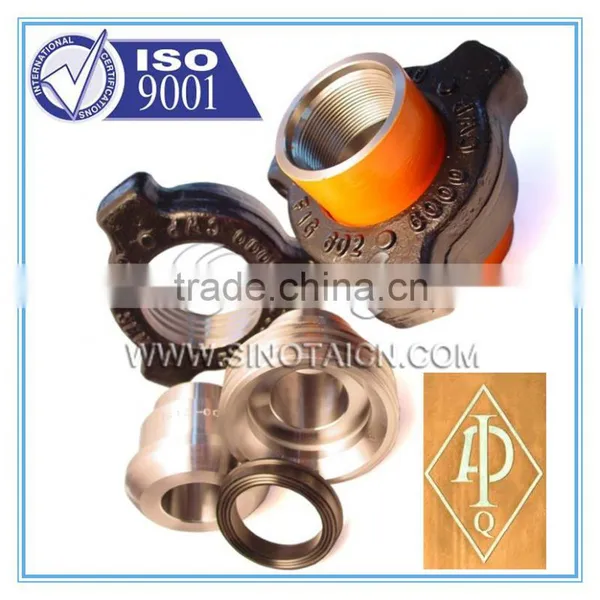

HAMMER UNION
Brief Introduction:
High-pressure union, importing international advanced technology, is forged with high-strength alloy steel, strict heat treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI Standard and the technology indexes conform to API Spec 6A, the product adopts some end connections of pipeline thread, tubing thread, butt-weld and compress-seal.
Usage:
The Hammer Union can be used for cementing trucks, all kinds of manifolds and other high pressure equipment, and pipes. It is an important part for transporting oil. Water, fracturing fluid and mixed fluid . These products are all made of high quality steel by forging and finishing cut .They are of good Mechanical performance and sealing property. Especially they can operate under the bad weather condition. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure , structural length drift diameter. the product adopts some end connections of pipeline thread, tubing thread, butt-weld.
Model: Figure100, Figure 200, Figure 206, Figure 400, Figure 600,Figure 602, Figure 1002, Figure 1003,Figure 1502 and Figure 2002.
- FIGURE 100 HAMMER UNION
Pressure Rating: 1000psi cwp; 1500 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
- FIGURE 200 HAMMER UNION
Sour Service Models to NACE MR-01-75.
- FIGURE 206 HAMMER UNION
Nominal pipe Size: 1, 2, 3, 4, 6, 8, 10;
Pressure Rating: 2000psi cwp; 3000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 400 HAMMER UNION
Nominal pipe Size: 2, 2-1/ 2, 3, 4, 6, 8, 10, 12;
Pressure Rating: 4000psi cwp; 6000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 600 HAMMER UNION
Nominal pipe Size: 1, 2, 3, 4;
Pressure Rating: 6000psi cwp; 9000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 602 HAMMER UNION
Nominal pipe Size: 1, 2, 3, 4;
Pressure Rating: 6000psi cwp; 9000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 1002 HAMMER UNION
Nominal pipe Size: 1, 2, 3, 4, 5, 6;
Pressure Rating: 1 to 4 10000psi cwp; 15000 psi test; 5 to 6 7500psi cwp; 12000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 1003 HAMMER UNION
Nominal pipe Size: 2, 3, 4, 5;
Pressure Rating: 2 to 3 10000psi cwp; 15000 psi test; 4 to 5 7500psi cwp; 12000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 1502 HAMMER UNION
Nominal pipe Size: 2, 3, 4;
Pressure Rating: 15000psi cwp; 22500 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75. - FIGURE 2002 HAMMER UNION
Nominal pipe Size: 2, 3;
Pressure Rating: 20000psi cold working pressure;
Connections Type: butt-weld;
Component Parts: Detachable Nut, Male Sub, Female Sub, Seal Ring, Retainer Segment, Retainer Ring;
Sour Service Models to NACE MR-01-75.
To order pls specify:
1.Model 2. Pressure level nnect type
