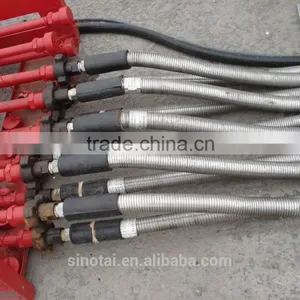

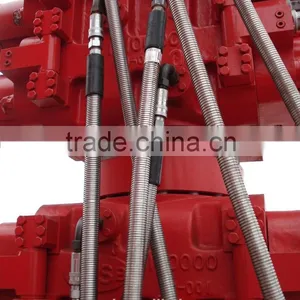

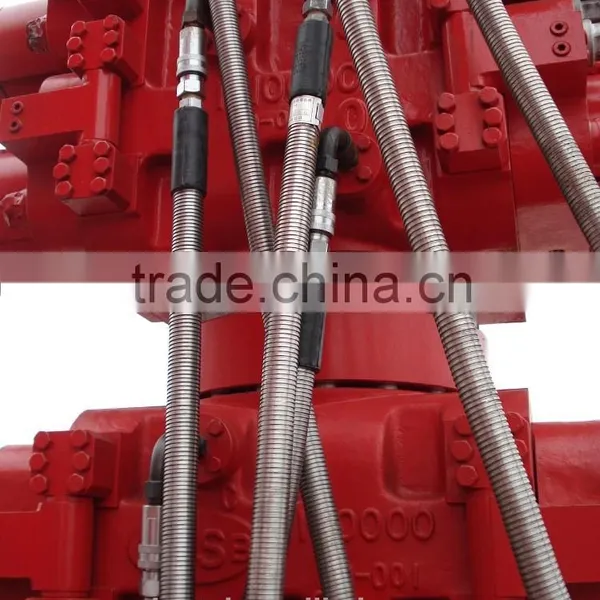

BOP armored hose
Applicability:
Hydraulic control pipeline for BOP control equipment.
Temperature range:
-20°C~+82°C
Structure:
Tube: Nitrile rubber, featuring oil resistant, abrasion resistant, acid & alkali resistant
Reinforcement: 2-6 layers of single high strength steel wire spiral
Cover: Neoprene, featuring oil resistant, abrasion resistant, low temperature, weather proof and anti-aging.
Coupling type:
Welded or integral union, flange or clamp connection form. Special end fittings can be available upon customers' request.
Main parameters:
|
I.D. in. mm |
O.D. mm |
W.P. Mpa(psi) |
T.P. Mpa(psi) |
Min bending radius mm |
Weight kg/m |
| 2 51 | 99 | 34.5(5000) | 69.0(10000) | 1.2 | 15.0 |
| 2½ 64 | 115 | 34.5(5000) | 69.0(10000) | 1.2 | 19.6 |
| 3 76 | 133 | 34.5(5000) | 69.0(10000) | 1.6 | 24.9 |
| 3½ 89 | 146 | 34.5(5000) | 69.0(10000) | 1.7 | 27.8 |
| 4 102 | 169 | 34.5(5000) | 69.0(10000) | 1.7 | 41.6 |
| 2 51 | 108 | 69.0(10000) | 103.4(15000) | 1.4 | 19.2 |
| 2½ 64 | 130 | 69.0(10000) | 103.4(15000) | 1.4 | 30.2 |
| 3 76 | 146 | 69.0(10000) | 103.4(15000) | 1.7 | 35.0 |
| 4 102 | 183 | 69.0(10000) | 103.4(15000) | 1.8 | 55.3 |
| 2 51 | 118 | 103.4(15000) | 155.3(22500) | 1.6 | 26.2 |
| 2½ 64 | 146 | 103.4(15000) | 155.3(22500) | 1.6 | 41.8 |
| 3 76 | 160 | 103.4(15000) | 155.3(22500) | 1.8 | 50.6 |
Package details:
All finished products are well packed in carbons or iron crates before shipment, any particular package type can be available upon customers' requests.
