9-5/8" Cup Pressure Tester for BOP Testing (TSQ245)

Name: 9-5/8" Cup Pressure Tester for BOP Testing (TSQ245)
Brand: SINOTAI
Availability: InStock

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	SINOTAI
Model Number	TSQ178	Type	Bop
Machine Type	Drilling Tool	Certification	API
Material	Other	Processing Type	Casting
Use	Well Drilling

Packaging Details

steel box or naked

Product Description

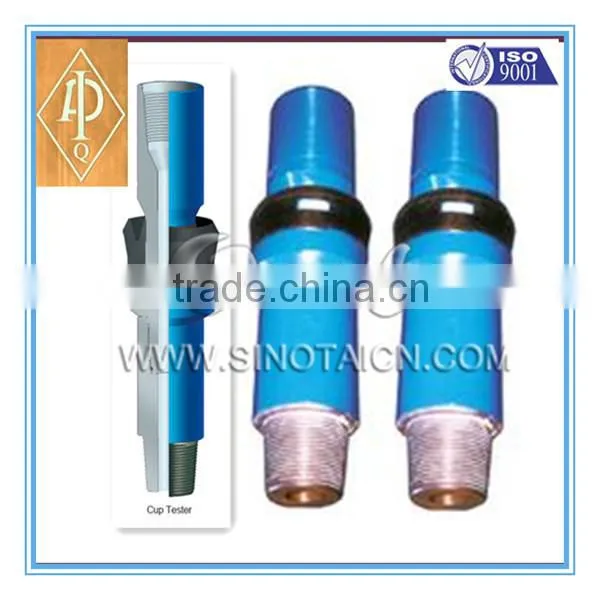

Cup Tester

Cup tester is designed to be attached to the drill string and then lowered into the casing beneath the wellhead to pressure test the blowout preventer stack and the wellhead. When the cup tester is lowered into the casing beneath the wellhead, pressure is applied to either a test pump, or by hoisting type cup after filling the hookup with water. The latter method is fast and accurate.

The cup tester assemblies are rated to the API standard mill test pressure for casing sizes up to 10,000 psi.

Special reinforcing can be offered on all cup sizes and casing weight ranges to hold up to 15,000 psi.

When ordering please specify:

Casing size & weight;
Connection.

Specifications - Cup Tester

Model	Thread	Applicable casing dimensions				Rubber cup O.D. (mm)	Bearing area of plug (cm²)	Pressure (MPa)	Length (mm)
		O.D. (in)	I.D.
			(mm)	W.H. (mm)	ppf
TSQ127	NC26	5	114.1-112.0	6.43-7.52	13.0-15.0	A 117		70	640
			108.6-104.8	9.19-11.1	18.0-21.4	B 112
TSQ140	NC31	5 1/2	125.7-124.3	6.98-7.72	15.5-17.0	A 129	82	70	700
			121.4-118.6	9.17-10.54	20.0-23.0	B 125	74
TSQ178	NC38	7	164.0-159.4	6.91-9.19	20.0-26.0	A 167	148	70	700
			157.1-152.5	10.36-12.65	29.0-35.0	B 160	130
TSQ245	NC50	9 5/8	226.6-224.4	8.94-10.03	36.0-40.0	A 230	302	35	840
			222.4-216.8	11.05-13.84	43.5-53.5	B 226	287
TSQ273	NC50	10 3/4	255.3-250.1	8.89-11.43	40.5-51.0	A 259	413	35	840
			247.9-242.8	12.57-15.11	55.5-65.7	B 251	381
TSQ339	NC50	13 3/8	320.4-317.9	9.65-10.92	54.0-61.0	A 325	628		840
			315.3-313.6	12.19-13.06	68.0-72.0	B 320	602
TSQ508	NC50	20	485.7-482.6	11.13-12.70	94-106.5	A 490	1570	35	1010
