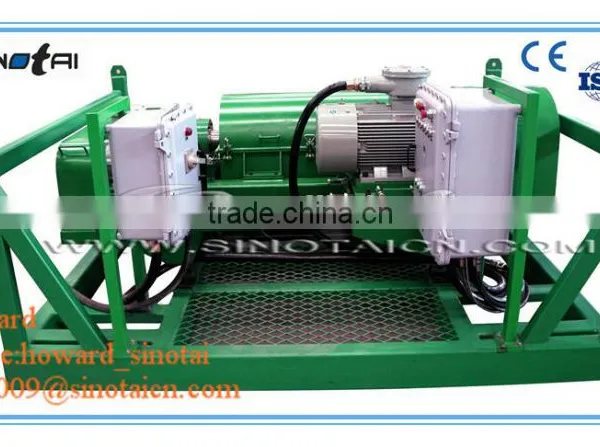

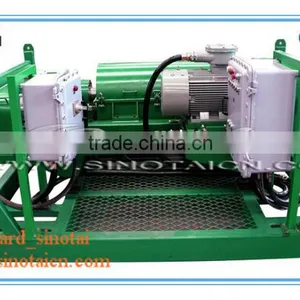

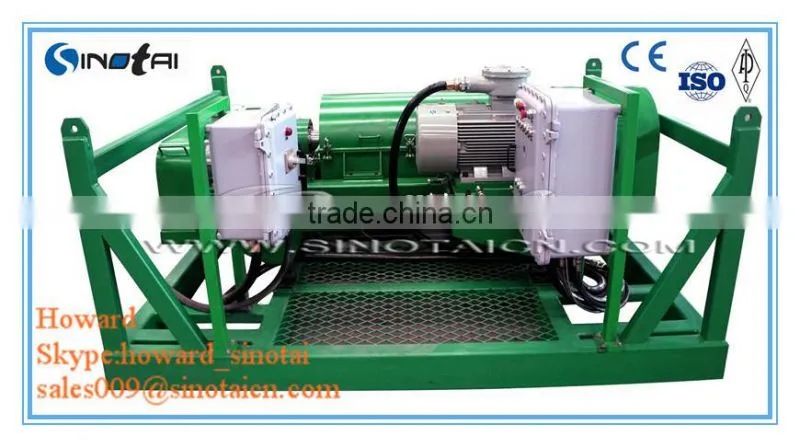

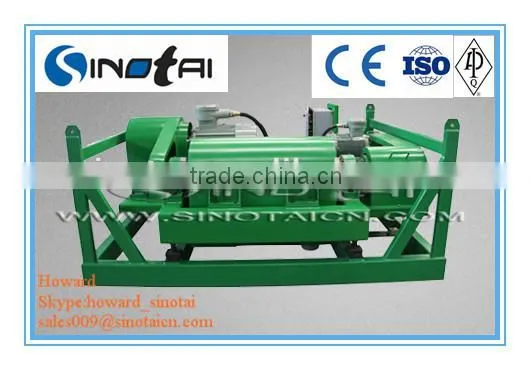

D Series Decanter Centrifuge
D Series Decanter Centrifuge is used in separating suspension of solids phase with particle ≥2μm in diameter for drilling mud and fluids handling.
Application:
- D Series Decanter Centrifuge is used in separating suspension of solids phase with particle ≥2μm in diameter for drilling mud and fluids handling.
- It is especially effective when used in oilfield service industry, industrial service industry and especially in environmentally sensitive areas.
- This type of centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management.
- It is a very sophisticated dynamic balancing machine, able to operate stably with the whirling speed ranging from 0 to 3900 and generate centrifugal force of 3000G.
Working Principle:
D Series Decanter Centrifuge Features and Benefits:
1. Innovative design includes longer bowl, allowing drilling fluids to thread through more slowly, thus resulting in drier solids and finer separation point;
2. Big bowl offers big volume. It also generates high-G force;
3. Stainless steel bowl, scroll, compartment are available and covered with corrosion-proof coating so as to have longer lifespan;
4. Tungsten carbide scroll points with wide spacing flights at tapered end create a finer layer of conveyed solids for consistent, uniform separation and maximum solids control efficiency.
5. German FAG or Swedish SKF brand bearings are available;
6. Electrical Components complies with SIEMENS/Schneider ATEX or IEC Ex.
7. Screw pump and submersible slurry pump are provided to meet liquid feeding requirements of centrifuge of various customers
Technical Parameter:
Model |
D450 |
D355 |
I355 |
||
Fixed Speed |
VFD |
Fixed Speed |
VFD |
Fixed Speed |
|
|
Bowl Diameter (mm)/(in) |
450/18 |
450/18 |
355/14 |
355/14 |
355/14 |
|
Bowl Length (mm)/(in) |
1000 / 39 |
1000 / 39 |
1257 / 49 |
1257 / 49 |
1422 / 56 |
Max. Bowl Speed(RPM) |
3200 |
3900 |
3900 |
3900 |
3900 |
Typical Bowl Speed(RPM) |
1700 & 2200 |
~3300 |
2000 & 3200 |
~3200 |
2000 & 3200(60Hz) |
G-Force |
728 & 1215 |
~2745 |
794/2032 |
794/2032 |
794/2032(60Hz) |
|
Max Capacity (m³/h) |
45m³/h |
45m³/h |
35m³/h |
35m³/h |
35m³/h |
Separation point (μm) |
4~7 |
2~7 |
2~7 |
2~7 |
2~7 |
Main Motor(kW) |
30 |
30 |
30 |
30 |
37 |
Back Drive Motor(kW) |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
Type of Gearbox |
planery1:57 |
planery1:57 |
planery1:57 |
planery1:57 |
planery1:57 |
Dimension: L×W×H(mm)/(in) |
2900×2200×1285 /114x87x51 |
2900×2200×1285 /114x87x51 |
2960×2200×1470 /117x87x58 |
2960×2200×1350 /117x87x53 |
3350×2200×1285 /132x87x51 |
Weight(kg) |
2870 |
3450 |
2940 |
3520 |
3310 |
Power |
460V/60Hz or 380V/50Hz or Customized |
||||
