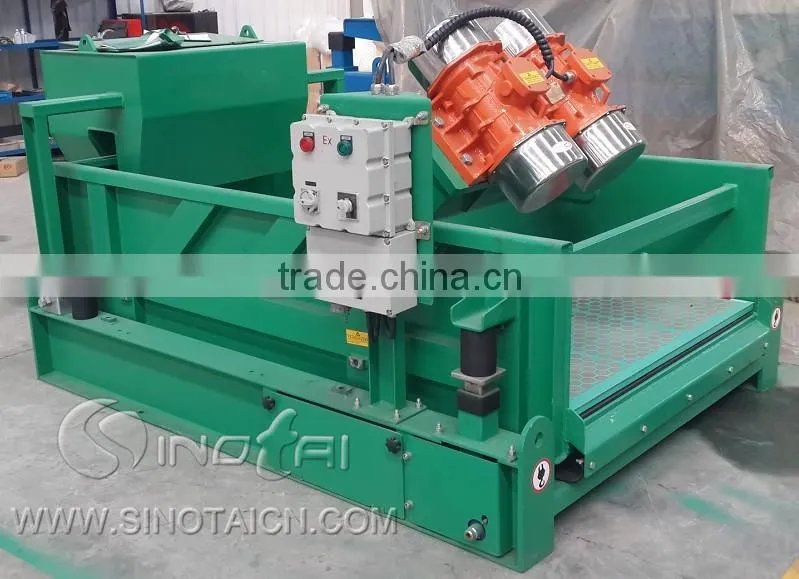

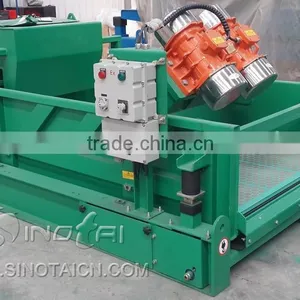

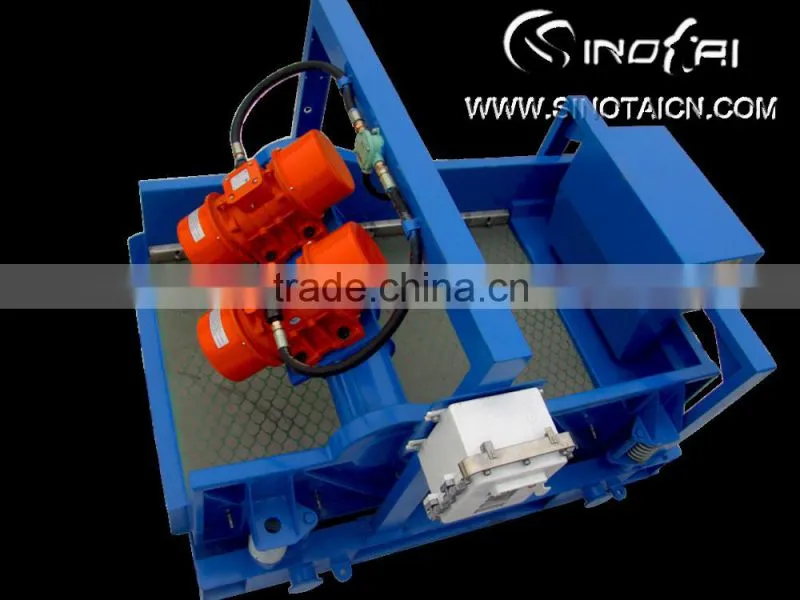

Shale Shaker
Main feature:
The shale shaker is the first grade of solids control equipment in drilling purification system.
It can remove cuttings above 75μm brought from the drilling well and the liquid with smaller particles will flow into tanks from where the fluid will flow into next grade solids control equipment to be treated.
Vibrating Mode: Linear motion.
The main technical performance and specification for the shale shaker:
Model | ZS833 | ZS633 | ZS703 | ZS852 | ZS832 |
Vibrating Mode | Linear motion | Linear motion | Linear motion | Linear motion | Linear motion |
Motor Power | 2×1.8/1.72KW | 2×1.5KW | 2×1.5KW | 2×1.0KW | 2×1.0KW |
Vibrating Strength | ≤7.0G | ≤7.0G | ≤7.6G | ≤7.6G | ≤6.5G |
Double Amplitude | 5.5~6.0mm | 5.5~6.0mm | 6.0~7.2mm | 6.0~7.2mm | 5.5~6.0mm |
Treating Capacity | 140m3/h615GPM | 120m3/h528GPM | 120m3/h528GPM | 90m3/h396GPM | 80m3/h352GPM |
Deck Adjustment | -1°~5° | -1°~5° | -1°~5° | -1°~5° | 0°~3° |
Power | 380V/50HZ,460V/60HZ | ||||
Screen area | 2.7 | 2.4 | 2.6 | 2.1 | 1.8 |
Screens of Deck | 830×1080mm×3 | 630×1250mm×3 | 700×1050mm×3 | 850×1080mm×2 | 830×1080mm×2 |
Amount of screen | 3 | 3 | 3 | 2 | 2 |
Weir Height | 746mm | ||||
Decibels | <85db | ||||
Starter | Magnetic force starter | ||||
weight | 1880kg | 1680kg | 1680kg | 1480kg | 1300kg |
Remarks | Treating capacity test from mud:1.2g/cm3density & viscosity 45s & 40 mesh screen | ||||
