Specifications
Newest DC to AC 1000W Micro Grid Tie Inverte Pure Sine Wave1, Pure Sine Wave Form
2, For Wind and Solar System
3, CE/Rohs
Newest DC to AC 1000W Micro Grid Tie Inverter, With Pure Sine Wave For Wind Solar Generator
---------Grid Tie Inverter DC to AC Inverter---------
----------Suitable for solar and wind system----------
---------Easy to install-----------
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter
-Specification:
- High-Frequency High Conversion Rate
- Directly connected to the solar panels (do not connect the battery)
- AC 0 angle with high precision auto-detection
- Synchronous High-frequency Modulation
- Pure Sine Wave Output
- Automatic Sensing Function Solar Luminosity
- Power Automatically Locked (APL)
- Maximum Power Point Tracking (MPPT)
- automatically Adapt To Different Load Power Factor
- Constant Current, Constant Power
- Automatically Shut Down When The Power Output Of a Fault
- Current Limit Protection

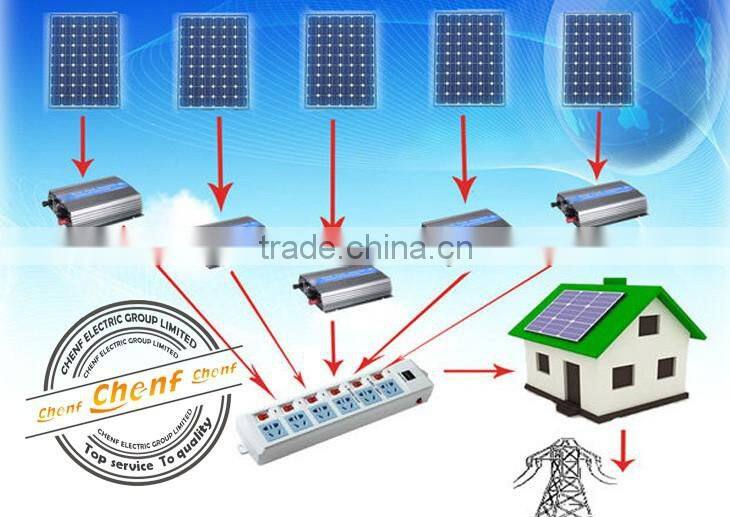

- Stack Multiple Machines (in the parallel machine used)grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter
-Description:
| MGI-1000W Grid Tie Inverter | ||||
| Input Voltage Range | 18V(10.5-28V)or24V(20-40V)or36V(24-45V) | |||
| Output Voltage Range | 110V(90-140V) | |||
| 220V(180-260V) | ||||
| Output Frequency | 50-60HZ | |||
| Output Power | 1000 WATT | |||
| Wave Form | Pure Sine Wave | |||
| System Operation | (APL) | |||
| (MPPT) | ||||
| Islanding Protection | Yes | |||
| Over/Low Voltage Protection | Yes | |||
| Converse Protection | Yes | |||
| Short-Circuit Protection | Yes | |||
| Over Load Protection | Yes | |||
| Over Temperature Protection | Yes | |||
| Communication | N/A | |||
| Waterproof | N/A | |||
| Net Weight | 2.0 KG | |||
| Dimension | 30*20.3*11.3 CM | |||
| Conversion Effiency | 88% | |||
| High Frequency Grid Tie Microinverter | ||||
| For Wind Power, Solar Power Generation System | ||||
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine inverter, inverter
- Product Show:
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter

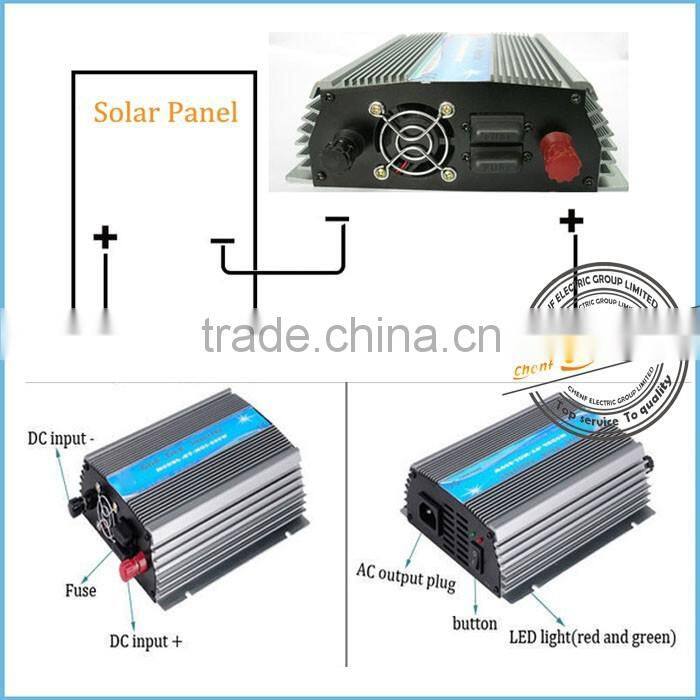

-Details:
-- Red terminal: Connect DC positive, black terminal: Connect DC negative.

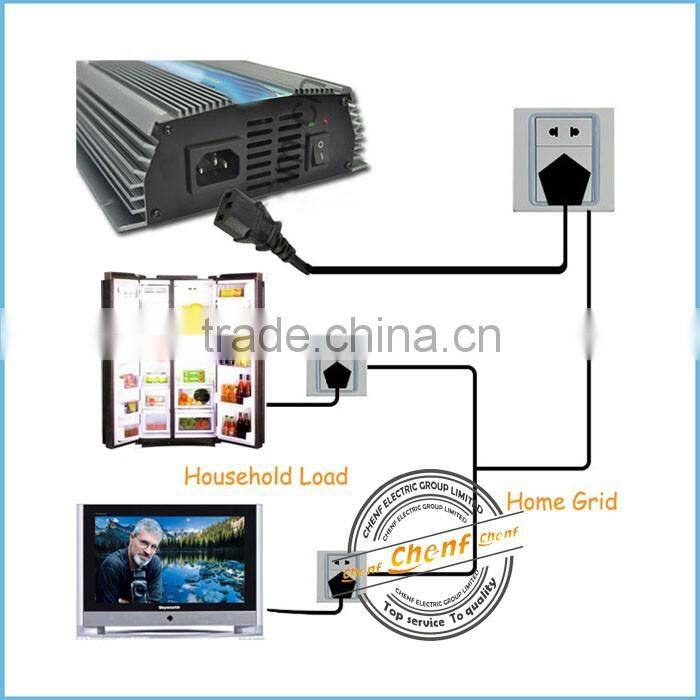

-- AC socket: Connection to the mains. The AC cord to the inverter 3 foot outlet, then the AC cord to home 3PIN AC outlet.
-- Switch: power properly connected, turn on the switch, the inverter to work

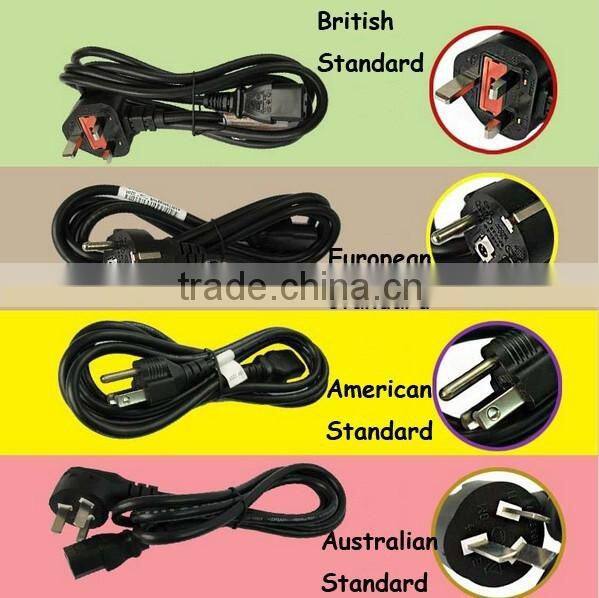

-Available Plug:
Pls show which plug u need when you make a order!
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter

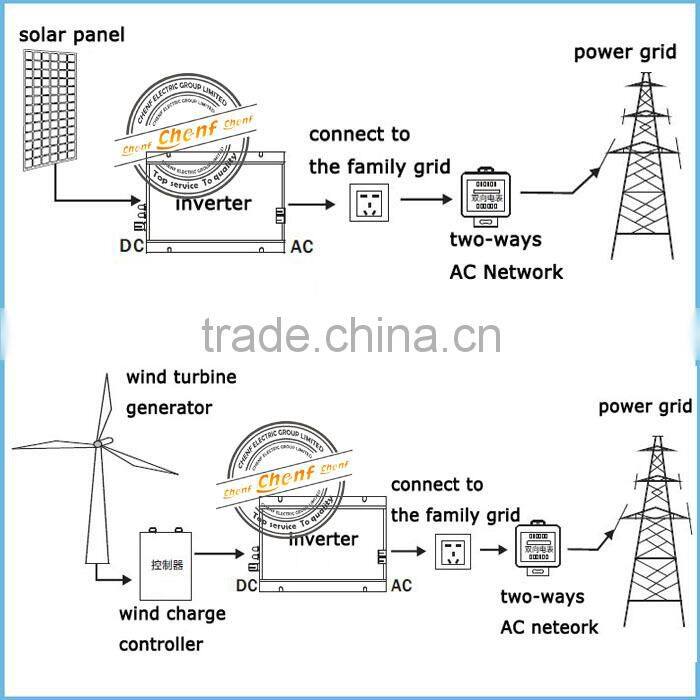

-Application:
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter

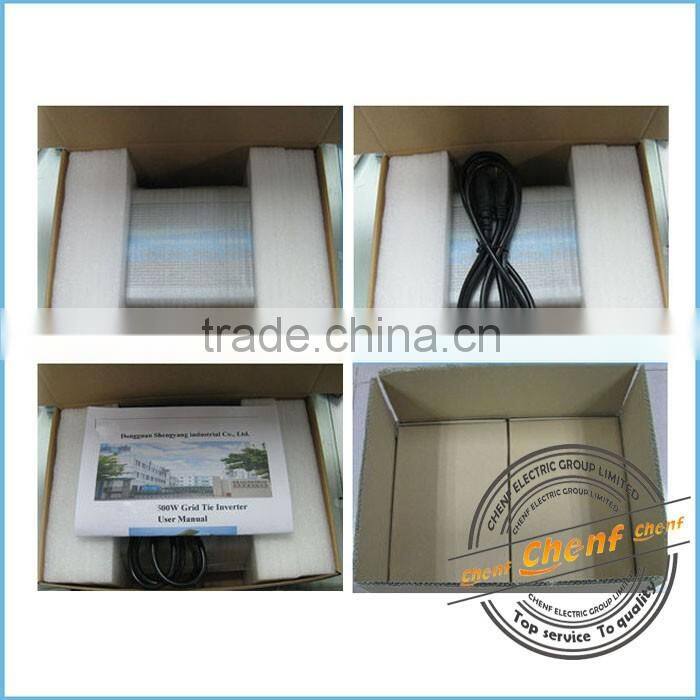

-Package:
Model |
200W |
300W |
400W |
500W |
600W |
800W |
1000W |
Net Weight |
1.3 KGS/PCS |
2.0KGS/PCS |
|||||
Gross Weight |
2.0 KGS/PCS |
2.7KGS/PCS |
|||||
Inner Box (LxWxH) |
30*20.3*11.3 CM |
39*20.3*11.3CM |
|||||
Carton (LxWxH) |
42*31.5*35.5CM, 6 PCS/CTN |
42*40.5*24.2CM /PC/CTN |
|||||
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter
-About Us:
- Chenf Electric Group Limited. (called "Chenf" for short) is a wholly owned subsidiary of Chenf Electrical Group Limited. Founded in 2008, we are a modern enterprise specialized in offering one-stop service to customers.
- Chenf concentrates on the design, production and sales of renewable energy product, hi-voltage product, low-voltage product, pneumatic actuator, etc
- Chenf will continue to take "create value for customers.
Enterprise Vision: To create electrical products airline carrier.
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter
grid tie inverter, dc to ac inverter, solar grid tie inverter, 220c grid tie inverter, 110v grid tie inverter, pure sine wave inverter, inverter
-Payment and Shipping
Q1: Are you a manufacturer?
A1:yes. We have 8 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 48 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the received product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
Whising you a great Shopping Time!
