Home > Products > Chervon conveyor belt > V-shape/U-shape/herringbone patterned conveyor belt/chevron conveyor belt

V-shape/U-shape/herringbone patterned conveyor belt/chevron conveyor belt

FOB Price

USD $10 - $60 / Meter

100 Meters(Min.Order)

Supply Ability 3000 Meter / Meters per Month
Port tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	zhonghui
Model Number	HD5113-4

Packaging Details

woven bag packing

Product Description

Main Products

1	CC conveyor belt	8	Chemical resistant conveyor belt
2	Polyester conveyor belt(ep)	9	Cold resistant conveyor belt
3	Nylon conveyor belt(NN)	10	Whole-core flame retartant conveyor belt
4	Steel cord conveyor belt	11	oil resistant conveyor belt
5	chevron conveyor belt	12	high temperature resistant conveyor belt
6	heat resistant conveyor belt	13	patterned conveyor belt
7	Common Flame retartant conveyor belt	14	sidewall conveyor belt

Product Description

Chevron belts

Pictures:

Specifications of rubber conveyor belt

Belt type	Fabric type	Single Fabric strength (N/mm)	Rubbercover thickness (mm)		Ply	Belt width (mm)
			Top rubber	Bottom rubber
Cotton Canvas (CC) conveyor belt	CC-56	56	3.0 4.5 6.0	1.5 3.0 6.0	2-10	300-2500
Nylon (NN)/Polyester(EP) conveyor belt	NN/EP-100	100
	NN/EP-125	125
	NN/EP-150	150
	NN/EP-200	200
	NN/EP-250	250
	NN/EP-300	300
	NN/EP-400	400
	NN/EP-500	500
	NN/EP-600	600

Technical Standard of rubber conveyor belt

Adhesion & Elongation of the Belt
Belt Carcass	Adhesion			Elongation
	Between Plies N/mm	Between Rubber and Carcass		Longitudinal Elongation at Break %>=	Longitudinal Elongation at Referenc Load %<=
	Between Plies N/mm	Rubber thickness <=1.5mm	Rubber thickness >1.5mm	Longitudinal Elongation at Break %>=	Longitudinal Elongation at Referenc Load %<=
Cotton	>=3.2	>=2.1	>=2.7	10	4
NN	>=4.5	>=3.2	>=3.5	10	4
EP	>=4.5	>=3.2	>=3.5	10	4

Longitudinal Tensile Strength of Rubber Cloth (per ply) N/mm
Cotton		NN		EP
CC	100—500	NN100	>=98	EP100	>=98
		NN150	>=147	EP150	>=147
		NN200	>=196	EP200	>=196

Our company :

Company Information

Lixian Huadu Rubber Belts Co., Ltd. is a professional manufacturer of rubber conveyor and conveyor roller for 20years , located near to Beijing & Tianjin.

Conveyor Belt Standards:

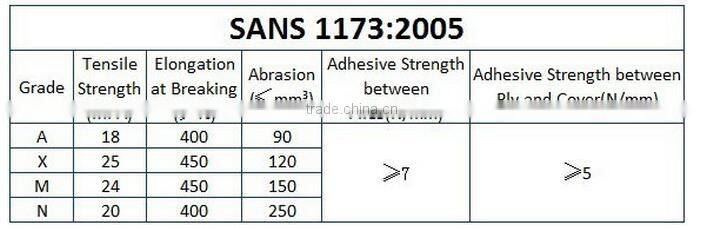

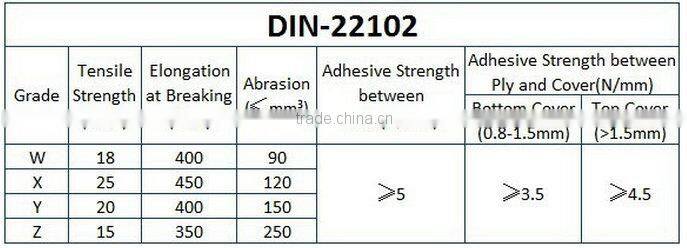

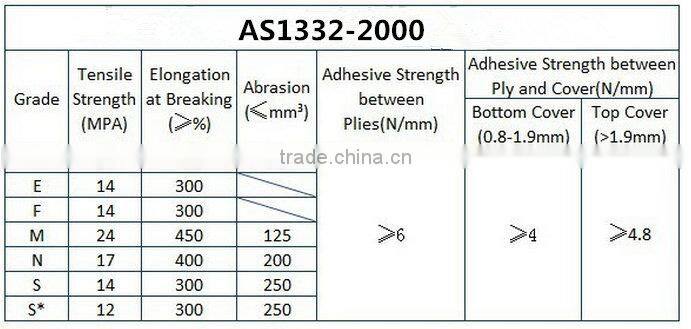

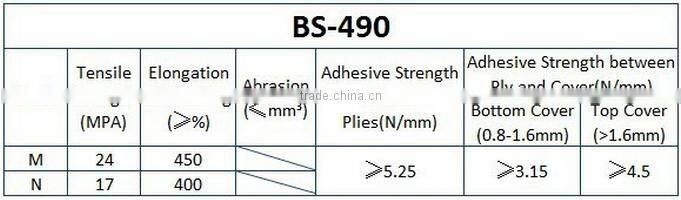

GB/T 7984-2001,DIN22102,AS1332,BS490,RMA,JISK6322,SANS1173,etc

Our Company:

Testing:

Certification:

For more details,please inquiry us!

Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)

Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts

Conveyor roller, idler

Conveyor Pulley, frame,bracket etc

WELCOM TO INQUIRY US.

Company Profile

Lixian Huadu Rubber Belts Co., Ltd.

Lixian Huadu Rubber Belts Co., Ltd. is a professional supplier of rubber products, located near to Beijing & Tianjin. We are near to Beijing-Guangzhou & Beijing-Kowloon railways and Beijing-Shenzhen Expressway, enjoying convenient transportation. Since inception, we have introduced advanced production equipment and testing instruments, and strived to produce high quality rubber products. Our main products are: a variety of general conveyor belts, steel cord conveyor belts, flat belts, etc. Our products are sold to more than 31 large and medium-sized cities and regions, well received by consumers. Our company insists on "Quality is Life". We won titles like "Trustworthy Unit" & "Product Quality Trustworthy Enterprise". We have has a high reputation in the industry. We warmly welcome friends to cooperate with us to create a brilliant tomorrow.
