Help CenterSpecial Pattern Rubber Conveyor Belt
Related Products
-
Special Designed Rubber Conveyor BeltingsUS$ 10 - 70MOQ: 100 Meters -
Chevron Pattern Black Rubber Conveyor BeltUS$ 10 - 70MOQ: 100 Meters
-
Chevron Belt for Asphalt Milling MachineUS$ 10 - 70MOQ: 100 Meters
-
China Chevron Pattern Conveyor Belt for SaleUS$ 10 - 70MOQ: 100 Meters
-
High Quality Special Pattern Chevron Conveyor BeltsUS$ 10 - 70MOQ: 100 Meters
Main Products
| 1 | CC conveyor belt | 8 | Chemical resistant conveyor belt |
| 2 | Polyester conveyor belt(ep) | 9 | Cold resistant conveyor belt |
| 3 | Nylon conveyor belt(NN) | 10 | Whole-core flame retartant conveyor belt |
| 4 | Steel cord conveyor belt | 11 | oil resistant conveyor belt |
| 5 | chevron conveyor belt | 12 | high temperature resistant conveyor belt |
| 6 | heat resistant conveyor belt | 13 | patterned conveyor belt |
| 7 | Common Flame retartant conveyor belt | 14 | sidewall conveyor belt |

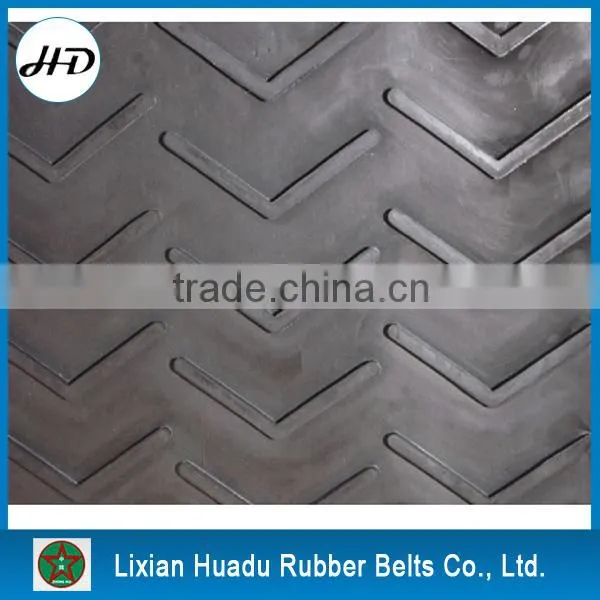

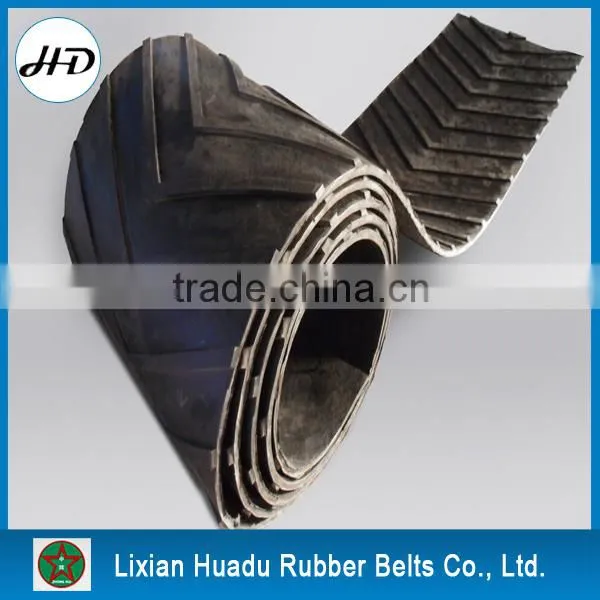

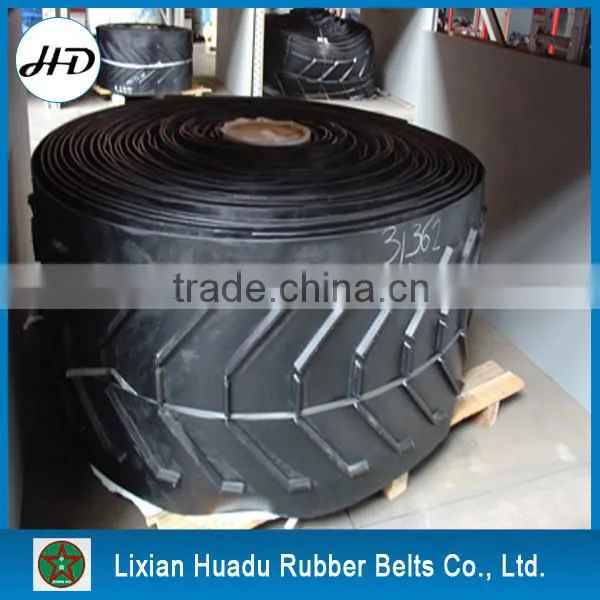

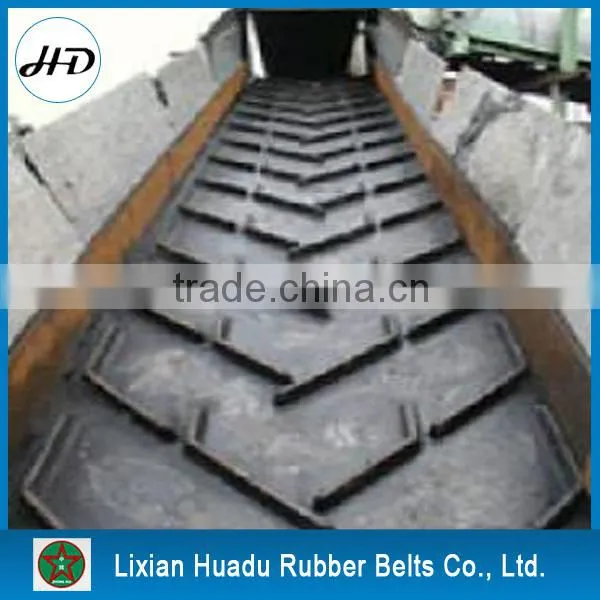

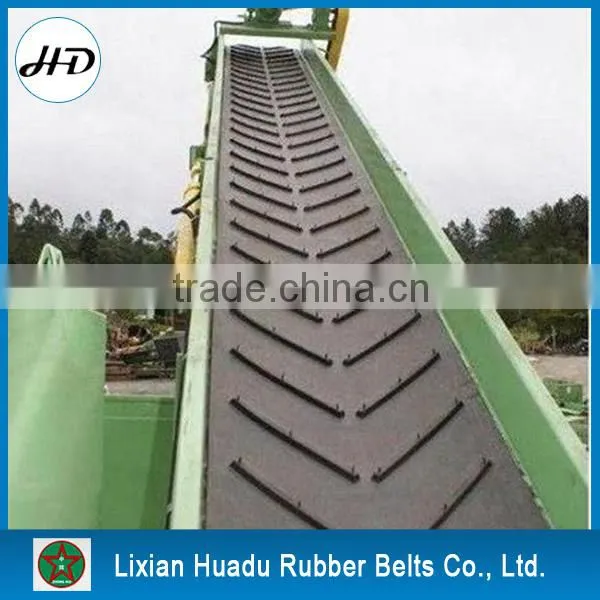

Chevron belts
Pictures:
Specifications of rubber conveyor belt
|
Belt type
|
Fabric type
|
Single Fabric strength (N/mm)
|
Rubbercover thickness (mm)
|
Ply
|
Belt width (mm)
|
|
Top rubber |
Bottom rubber |
|||||
|
Cotton Canvas (CC) conveyor belt |
CC-56 | 56 |
3.0
4.5
6.0 |
1.5
3.0
6.0 |
2-10 | 300-2500 |
|
Nylon (NN)/Polyester(EP) conveyor belt |
NN/EP-100 | 100 | ||||
| NN/EP-125 | 125 | |||||
| NN/EP-150 | 150 | |||||
| NN/EP-200 | 200 | |||||
| NN/EP-250 | 250 | |||||
| NN/EP-300 | 300 | |||||
| NN/EP-400 | 400 | |||||
| NN/EP-500 | 500 | |||||
| NN/EP-600 | 600 |
|||||
Technical Standard of rubber conveyor belt
Adhesion & Elongation of the Belt | |||||
|
Belt Carcass |
Adhesion |
Elongation |
|||
|
Between Plies N/mm |
Between Rubber and Carcass |
Longitudinal Elongation at Break %>= |
Longitudinal Elongation at Referenc Load %<= |
||
Rubber thickness <=1.5mm |
Rubber thickness >1.5mm |
||||
Cotton |
>=3.2 |
>=2.1 |
>=2.7 |
10 |
4 |
NN |
>=4.5 |
>=3.2 |
>=3.5 |
10 |
4 |
EP |
>=4.5 |
>=3.2 |
>=3.5 |
10 |
4 |
|
Longitudinal Tensile Strength of Rubber Cloth (per ply) N/mm
| |||||
|
Cotton
|
NN |
EP |
|||
CC |
100—500 |
NN100 |
>=98 |
EP100 |
>=98 |
|
NN150 |
>=147 |
EP150 |
>=147 |
||
NN200 |
>=196 |
EP200 |
>=196 |
||
Lixian Huadu Rubber Belts Co., Ltd. is a professional manufacturer of rubber conveyor and conveyor roller for 20years , located near to Beijing & Tianjin.
Conveyor Belt Standards:
GB/T 7984-2001,DIN22102,AS1332,BS490,RMA,JISK6322,SANS1173,etc
Our Company:
Testing:
Certification:
For more details,please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc
WELCOM TO INQUIRY US.
