The products are mainly used for the determination of the density of the drilling fluid and other liquid substance density special equipment. Widely used in major oil fields, geological exploration and laboratory analysis and determination of liquid density. With a durable, impact surface fine, stable measurement data, high accuracy.
Model and specifications
Item |
Models |
Measuring range |
1 |
YM-1mud balance |
0.96-2.0g/cm3(8.0-171b/gal) |
2 |
YM-2 mud balance |
0.96-2.5g/cm3(8.0-211b/gal) |
3 |
YM-3 mud balance |
0.96-3.0g/cm3(8.0-251b/gal) |
4 |
YM-5 mud balance |
0.7-2.4g/cm3(5.8-201b/gal) |
5 |
YM-7 mud balance |
0.1-1.5g/cm3(0.8-131b/gal) |
Main technical parameters
Item |
Models |
Measuring range |
Measuring precision |
Cup volume |
1 |
YM-1 |
0.96-2.0g/cm3(8.0-171b/gal) |
0.01g/ cm3 (0.1lb/gal) |
140 cm3 |
2 |
YM-2 |
0.96-2.5g/cm3(8.0-211b/gal) |
0.01g/ cm3 (0.1lb/gal) |
140 cm3 |
3 |
YM-3 |
0.96-3.0g/cm3(8.0-251b/gal) |
0.01g/ cm3 (0.1lb/gal) |
140 cm3 |
4 |
YM-5 |
0.7-2.4g/cm3(5.8-201b/gal) |
0.01g/ cm3 (0.1lb/gal) |
140 cm3 |
5 |
YM-7 |
0.1-1.5g/cm3(0.8-131b/gal) |
0.01g/ cm3 (0.1lb/gal) |
140 cm3 |
Working principle

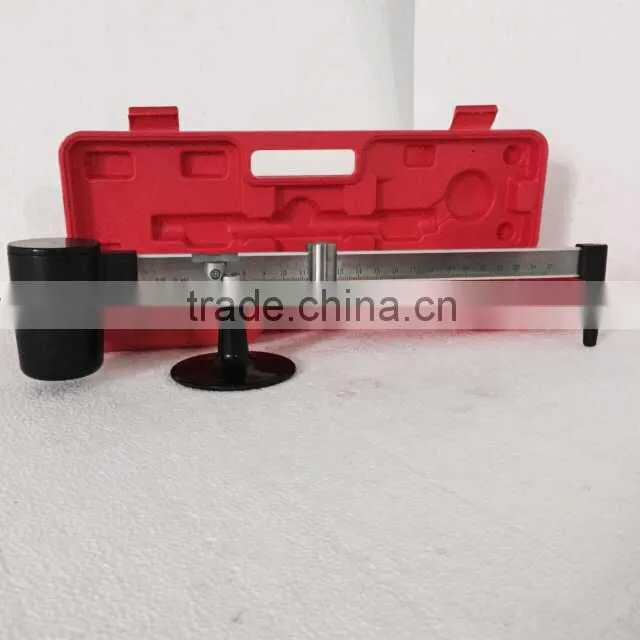

YM mud balance consists of a graduated beam with a bubble level and a weight slider along its length and a cup with a lid on one end. The cup is used to hold a fixed amount of fluid so it can be weighed. A slider-weight can be moved along the beam, and a bubble indicates when the beam is level. Density is read at the point where the slider-weight sits on the beam at level.
Calibration is done using a liquid of known density (often water) by adjusting the counter weight. Typical balances are not pressurized, but a pressurized mud balance operates in the same manner.
standard export package, within 15 days
1year warranty
