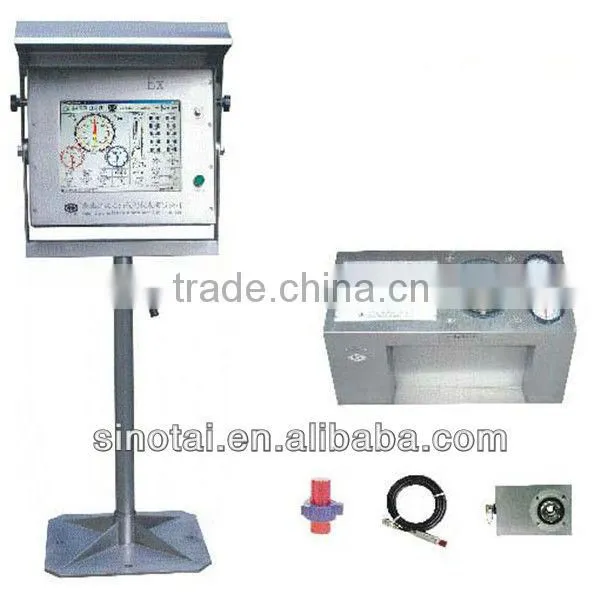

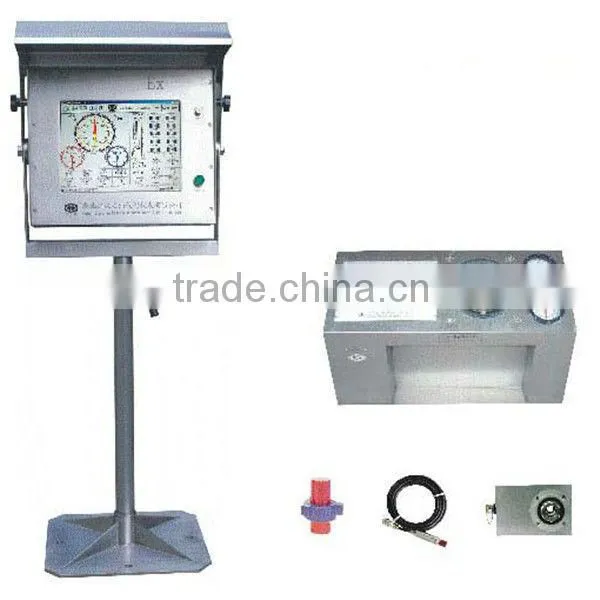

SZJ-II Multi-parameter Drilling Instrumentation System
1.Wide TFT LCD touch screen, human-machine dialog operation and ideal visual effect.
2. Back-end monitoring software can perform real-time monitoring, acoustic and optical alarming and remote display; reports and curves of all the parameters can be displayed (in real time), saved and printed.
3.As all the composing parts of system are connected through CAN bus, it is easy to conduct field installation, adjustment and maintenance.
4. The system enjoys a wide range of working voltage, excellent stability, strong anti-jamming capacity and long-term trouble-free service.
Parameters |
Measuring Range |
Accuracy |
Hookload and WOB |
0~500×10kN |
±1.5F.S |
Rotary torque |
0~40kN·m or 0~500scale |
±5F.S |
Tong torque |
0~100kN(in tail line pull) |
±2.5F.S |
Mud pressure |
0~40MPa |
±1.5F.S |
Depth |
0~9999.9m |
|
RPM |
0~300r/min |
|
SPM of Pump 1 and 2 |
0~300storkes/min |
|
Mud flow |
0~100 |
±2F.S |
Mud pit volume |
0~999.9m3 |
|
Mud densit; |
0.8~2.0g/cm; |
±0.02g/cm; |
Total ga; |
0~100LE; |
±0.5F.; |
H2; |
0~100pp; |
±0.5F.; |
Working temperatur; |
-30~70; |
|
Relative humidit; |
0~90 |
|
Working voltag; |
220VAC±10,47~63Hz |
