Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > High Quality! API 5CT Casing Pup Joint(1~5m for Opetion )

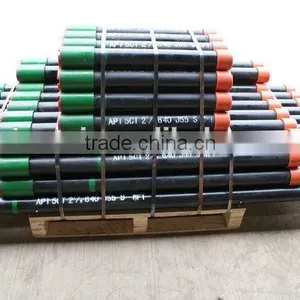

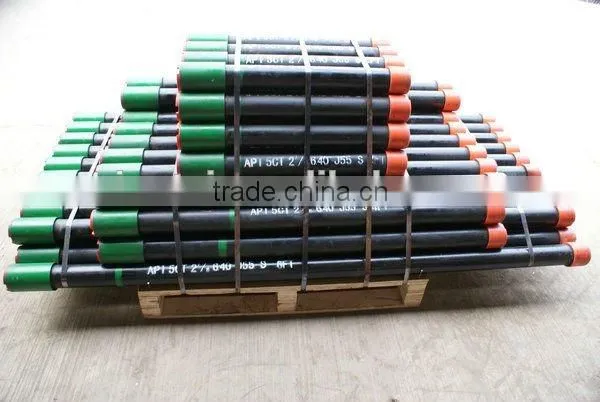

High Quality! API 5CT Casing Pup Joint(1~5m for Opetion )

Name: High Quality! API 5CT Casing Pup Joint(1~5m for Opetion )
Brand: SINOTAI
SKU: 119542387
Availability: InStock

High Quality! API 5CT Casing Pup Joint(1~5m for Opetion ) thumbnail-1

High Quality! API 5CT Casing Pup Joint(1~5m for Opetion ) photo-1

US$ 50 - 200 MOQ: 100 Sets

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

SINOTAI

Type:

Other

Contact Supplier Request Quote Chat Now

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name SINOTAI

Type Other

Machine Type Drilling Tool

Certification API

Material Carbon Steel

Processing Type Casting

Use Well Drilling

API 5CT Casing Pup Joint

Detailed introduction to Casing Pup Joint:

1. Technical standard:API SPEC 5CT,API SPEC 5B,ISO 11960:2004

2. Product grade:H40,J55,N80-1,N80Q,L80,C90,T95,P110

3.Specification range:

Specification range:OD114.3~339.7mm, WT5.21~22.22mm(4 1/2"~13 3/8")

4.Thread types:

Casing Couplings:
Short round thread(STC).Long round thread(LC).Buttress thread(BC)

Note: Some Premium Thread Casing Couplings is also available.

5 The range of length:< R1 (4.88m)

6. Usage: Casing of length shorter than R1, Used to regulate casing surface location, and connect cement head

7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers

8.Quality Control:

1. 100% quality test before delivery.

2. Test report will show to users.

8.Technical Parameter:

ISO/API Casing pup joint list

Size, wall thickness, grade and applicable end-finish

labels^a		Outside diameter	Wall thickness	Type of end-finish^b				Length
labels^a		D mm	t mm	J55 K55	L80	N80 1,Q	P110	m
1	2	D mm	t mm	J55 K55	L80	N80 1,Q	P110	m
1	2	3	4	6	8	9	11
4-1/2 4-1/2	11.60 13.50	114.30 114.30	6.35 7.37	PSLB -	PLB PLB	PLB PLB	PLB PLB	1,2,3,4,5,6……
5 5	15.00 18.00	127.00 127.00	7.52 9.19	PSLB -	PLB PLB	PLB PLB	PLB PLB	1,2,3,4,5,6……
5-1/2 5-1/2 5-1/2	15.50 17.00 20.00	139.70 139.70 139.70	6.98 7.72 9.17	PSLB PSLB -	- PLB PLB	- PLB PLB	- PLB PLB	1,2,3,4,5,6……
6-5/8 6-5/8	24.00 28.00	168.28 168.28	8.94 10.59	PSLB -	PLB PLB	PLB PLB	PLB PLB	1,2,3,4,5,6……
7 7 7	23.00 26.00 29.00	177.80 177.80 177.80	8.05 9.19 10.36	PSLB PSLB -	PLB PLB PLB	PLB PLB PLB	- PLB PLB	1,2,3,4,5,6……
7-5/8	29.70	193.68	9.52	-	PLB	PLB	PLB	1,2,3,4,5,6……
7-3/4	46.10	196.85	15.11	-	P	P	P	1,2,3,4,5,6……
8-5/8	32.00	219.08	8.94	PSLB	-	-	-	1,2,3,4,5,6……
9-5/8 9-5/8 9-5/8 9-5/8	32.30 36.00 40.00 43.50	244.48 244.48 244.48 244.48	7.92 8.94 10.03 11.05	- PSLB PSLB -	- - PLB PLB	- - PLB PLB	- - - PLB	1,2,3,4,5,6……
10-3/4 10-3/4	45.50 51.00	273.05 273.05	10.16 11.43	PSB PSB	- PSB	- PSB	- PSB	1,2,3,4,5,6……
11-3/4 11-3/4	47.00 54.00	298.45 298.45	9.53 11.05	PSB PSB	- -	- -	- -	1,2,3,4,5,6……
13-3/8 13-3/8 13-3/8	54.50 61.00 68.00	339.72 339.72 339.72	9.65 10.92 12.19	PSB PSB PSB	- - PSB	- - PSB	- - PSB	1,2,3,4,5,6……
P——Plain end; S——Short round thread(STC); L——Long round thread(LC); B——Buttress thread(BC)
^a Labels are for information and assistance in ordering. ^bPup Joint and accessories shall be furnished with threaded ends without coupling unless otherwise specified.
