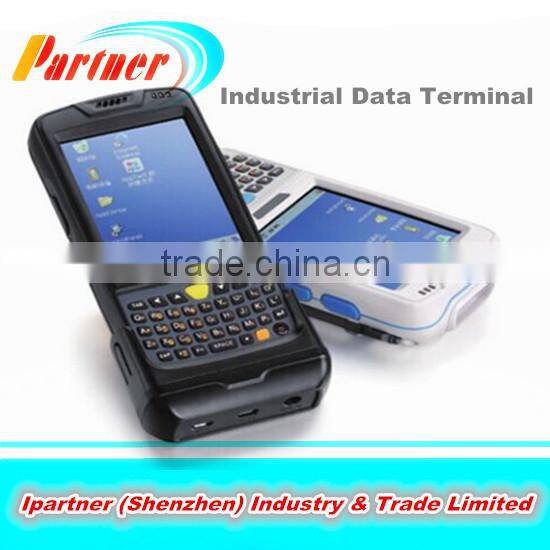

Mobile data collector, for RFID Reader,Barcode scanner,PDA with 3G WCDMA Handheld mobile terminal
The basic configuration include : WiFi , Bluetooth
The optional functions can be added as below:
Cradle--(USD45)
UHF--(USD475)
HF RFID reader--(USD45)
Dual band GPRS--(USD35)
Quad band GPRS--(USD40)
GPS--(USD20)
Camera--(USD10)
1D laser barcode scanner--(USD90)
2D barcode scanner--(USD150)
Products DetailS:
CPU |
Freescale 800MHz |
Operating system |
Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core (optional) |
Memory |
256 MB RAM/4 GB Flash,MicroSD/TF card,maximum 32G |
Expansion Memory |
Expansion Memory |
Screen |
3.5” QVGA backlight TFT-LCD, 65K colors, 240 W x 320 L (QVGA size) |
Key Pad |
numeric, QWERTY keyboard (optional) |
Input method |
touch input and keyboard input |
Expansion slots |
PSAM, SIM/PSAM, MicroSD/TF card slot under the battery |
Programming environment |
C++, C#, VB.NET using Microsoft Visual Studio 2005&2008 or higher Software Development Kits (SDK) provided |
Interfaces |
USB port for sync with PC (set USB as OTG, |
|
|
1D laser scanner (Optional) |
SE655 CCD or SE955 laser; Types- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS |
2D scan engine (Optional) |
Brand- Symbol SE4500 CMOS Types- 1D- all major codes; 2D- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; etc. |
LF (Optional) |
Operating frequency- 125 kHz, 134.2 kHz Protocol- ISO11784, ISO11785 Read/write range up to- 3.15 in (8cm) |
HF (Optional) |
Operating frequency- 13.56 MHz Protocol- ISO14443A/B, 15693 (optional) Read/write range up to- 3.15 in (8 cm) |
UHF (Optional) |
Operating frequency- China- 920 ~ 925MHz Europe- 865 ~ 868MHz (ETSI EN 302 208) Other- 840 ~ 960MHz (for customization) Protocol- EPC, GEN2/ISO18000-6C Read range up to- 98.425 in (250 cm) Antenna- 3dBi Power- +10dBm ~ +30dBm |
Wireless WAN (Optional) |
Network (WWAN)- EDGE/GPRS/GSM 900/1800 MHz; 850/900/1800/1900 MHz (optional) ,GPS (Optional) |
Wireless |
WiFi- muRata IEEE802.11b/g Bluetooth- Class II, 3-5 M(Optional) |
Camera (Optional) |
automatic focus 5.0 mega pixels |
Language |
Chinese(GB2312 or GB18030),English,French,German, Latin, Russian, Arabic |
Battery |
rechargeable li-ion polymer battery (3.7 V/3,200 mAh) |
|
Environmental |
Operating temperature- -20 °C ~ 50 °C Storage temperature- -25 °C ~ 70 °C Humidity- 5% RH ~ 95% RH (non-condensing) Dropping survive- 1.5-meter drop test on six sides (concrete floor, under operating temperature range) Rolling survive- 1,000 times, 0.5 meter, rolling by six contact surfaces Environmental sealing- IP64 |
Dimension |
15.3 cm * 7.5 cm * 2.9 cm |
Weight |
330g |
Optional Accessories |
Standard- battery, charger/adapter, data cables, stylus, hand strap. Optional: Carrying Case |
|
|
Application Scenarios:
A, Ticket Verification (Barcode scanners) & Car Park Charging (POS terminals)
B, People Verification & Authentication (Fingerprint Sensors, ID Card Readers)
C, Driving License & Car Verification (Police Affairs Terminals)
Our Advantage:
Free SDK :
No special training required. Customers can also set up the handheld system in other languages
(beside Chinese & English).
Open API:
Free SDK, open software platform for secondary application development and customized programs.
Our Services:
1 |
Trade terms : |
FOB,FCA,EXW,CIF,CNF |
2 |
Payment way : |
T/T, West Union, Money Gram, L/C |
3 |
Payment condition : |
30% deposit in advance, 70% balance before delivery |
4 |
Shipping way : |
DHL, EMS, FEDEX,UPS |
5 |
Delivery time : |
Sample order after ensure the payment in 2- 5 days, |
Batch order could negotiate basic on quantity. | ||
6 |
Package : |
Neutral carton |
7 |
Warranty : |
1 year warranty for main device as well as 24 hours on line service to help you out. |
