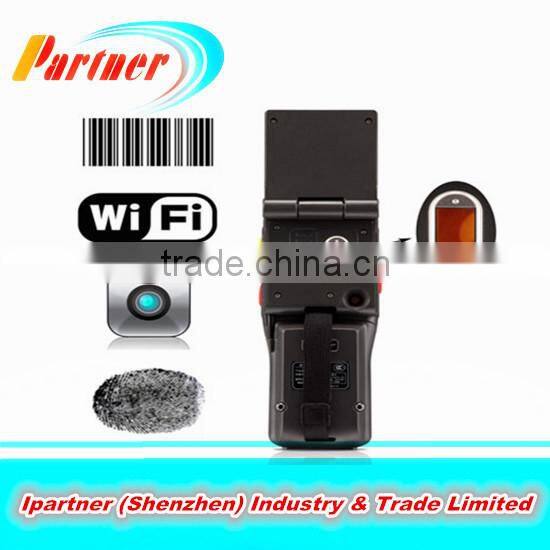

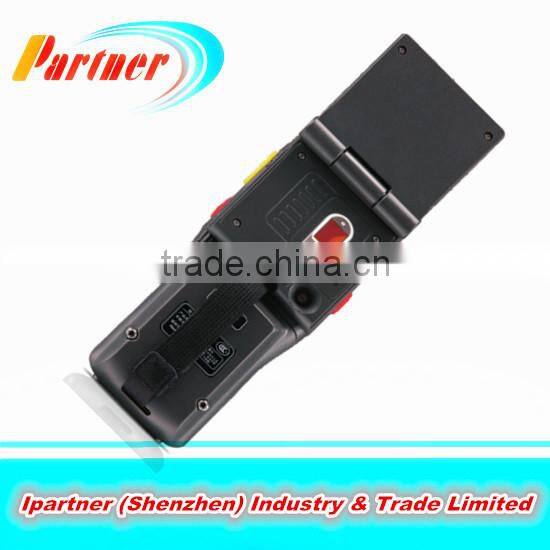

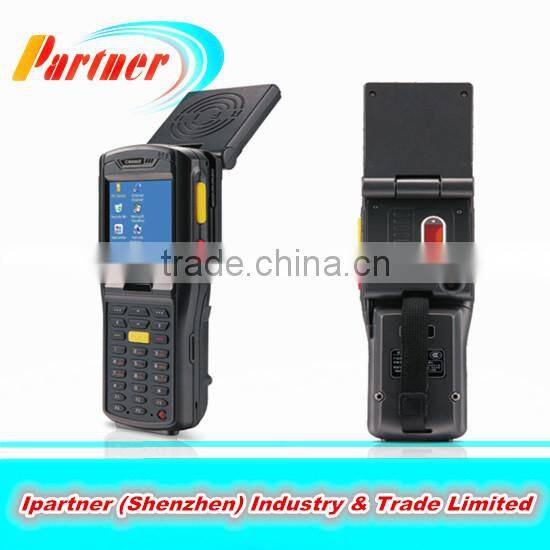

factory Low price Handheld biometric computer with fingerprint reader BT5600

FOB Price

USD $400 - $1,200 / Piece

5 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Hong kong Shenzhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Operating System:	Other, Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core	Processor Type:	Other, freescale, for Samsung
Style:	Handheld Computer	Memory Capacity:	128MB	Screen Size:	3.2"
Weight:	350g	Brand Name:	ipartner	Model Number:	BT5600
Place of Origin:	Guangdong, China	Color:	Black

Product Description

factory Low price Handheld biometric computer with fingerprint reader BT5600

1.Windows CE 6.0 OS Rugged Handheld PDA Terminal support Barcode scanner,WIFI,BT,RFID reader
2.Windows CE 6.0
3.GPRS/GSM,GPS

Products DetailS:

CPU	Samsung ARM920T@533 MHz
Operating system	Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core (optional)
Memory	128 MB RAM/1 GB Flash
Expansion Memory	Expansion Memory
Screen	3.2” QVGA backlight TFT-LCD, 65 K colors. 240 x 320 (QVGA size)
Key Pad	numeric, full alphanumeric (optional)
Input method	touch input and keyboard input
Expansion slots	SIM/SAM, Micro SD (TF) card
Programming environment	.NET and C++ programming using Microsoft Visual Studio 2005&2008 or higher
Programming environment	Software Development Kits (SDK) provided
Interfaces	USB 2.0; RS232
Fingerprint (Optional)	Sensor type- induction type
	Function- fingerprint enrollment, process, acquisition, compare, delete etc.
	Performance- FRR < 0.1%; FAR < 0.001%
	Math time(1-1)- < 0.1 sec
	Math time(1-N)- < 0.5 sec
1D laser scanner (Optional)	Brand- Symbol SE955
1D laser scanner (Optional)	Types- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS
2D scan engine (Optional)	Brand- Symbol SE4500
	Types- 1D- all major codes;
	2D- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; etc.
LF (Optional)	Operating frequency- 125 kHz, 134.2 kHz
	Protocol- ISO11784, ISO11785
	Read/write range up to- 3.15 in (8cm)
HF (Optional)	Operating frequency- 13.56 MHz
	Protocol- ISO14443A/B, 15693 (optional)
	Read/write range up to- 3.15 in (8 cm)
UHF (Optional)	Operating frequency-
	China- 920 ~ 925MHz
	Europe- 865 ~ 868MHz (ETSI EN 302 208)
	Other- 840 ~ 960MHz (for customization)
	Protocol- EPC, GEN2/ISO18000-6C
	Read range up to- 98.425 in (250 cm)
	Antenna- 3dBi
	Power- +10dBm ~ +30dBm
Wireless WAN (Optional)	Network (WWAN)- EDGE/GPRS/GSM 900/1800 MHz;
Wireless WAN (Optional)	850/900/1800/1900 MHz (optional) ,GPS (Optional)
Wireless	WiFi- muRata IEEE802.11b/g
Wireless	Bluetooth- Class II, 3-5 M(Optional)
Camera (Optional)	Samsung 3.2 mega pixels, 2048 (H)*1536 (V), QXGA
Language	Chinese(GB2312 or GB18030),English,French,German, Latin, Russian, Arabic
Battery	rechargeable li-ion polymer battery (3.7 V/4,000 mAh)
	Operating temperature- -20 °C ~ 50 °C
	Storage temperature- -25 °C ~ 70 °C
	Humidity- 5% RH ~ 95% RH (non-condensing)
Environmental	Dropping survive- 1.5-meter drop test on six sides (concrete floor, under operating temperature range)
	Rolling survive- 1,000 times, 0.5 meter, rolling by six contact surfaces
	Environmental sealing- IP64
Dimension	186.57548 mm (L × W × H)
Weight	Weight- < 500 g (with battery)
Optional Accessories	Standard- battery, charger/adapter, data cables, stylus, hand strap, 4G micro SD (TF) card, protective film
	Optional- cradle, thermal printer
	Refer to Accessories Appendix
Thermal printer(external)	1138248 mm
	Communication- Bluetooth 2.0; RS232
	Paper width- 48 mm
	Accessories- thermal paper, carrying case, power adapter, battery

Application Scenarios:

A, Ticket Verification (Barcode scanners) & Car Park Charging (POS terminals)

B, People Verification & Authentication (Fingerprint Sensors, ID Card Readers)

C, Driving License & Car Verification (Police Affairs Terminals)

Our Advantage:

Free SDK :

No special training required. Customers can also set up the handheld system in other languages

(beside Chinese & English).

Open API:

Free SDK, open software platform for secondary application development and customized programs.

Our Services:

1	Trade terms :	FOB,FCA,EXW,CIF,CNF
2	Payment way :	T/T, West Union, Money Gram, L/C
3	Payment condition :	30% deposit in advance, 70% balance before delivery
4	Shipping way :	DHL, EMS, FEDEX,UPS
5	Delivery time :	Sample order after ensure the payment in 2- 5 days,
5	Delivery time :	Batch order could negotiate basic on quantity.
6	Package :	Neutral carton
7	Warranty :	1 year warranty for main device as well as 24 hours on line service to help you out.
