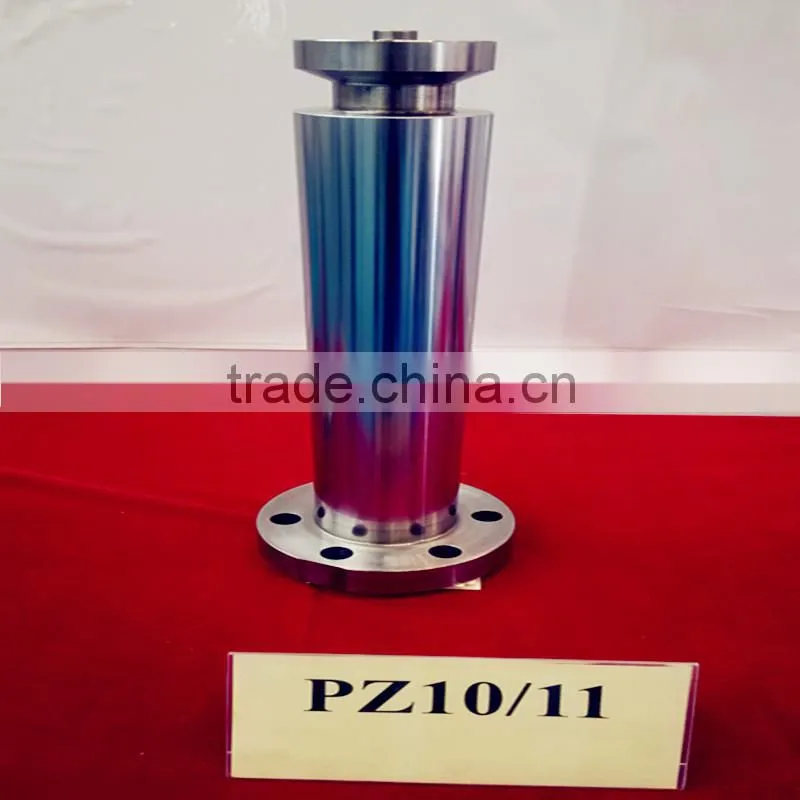

PZ10/11series Mud Pump Piston RodsNegotiableMOQ: 1 Piece
-

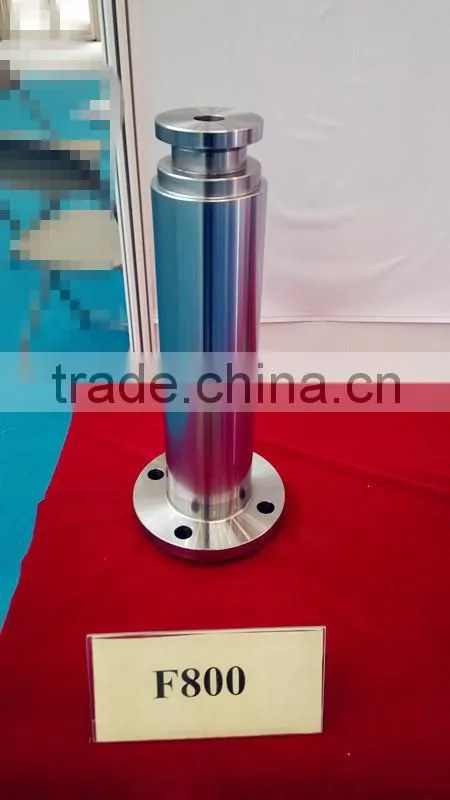

F800 Series Mud Pump Piston RodsNegotiableMOQ: 1 Piece
-
10% Discount!!!Mud Pump Piston Rods/Mud Pump Spare Parts for OilfieldNegotiableMOQ: 1 Piece

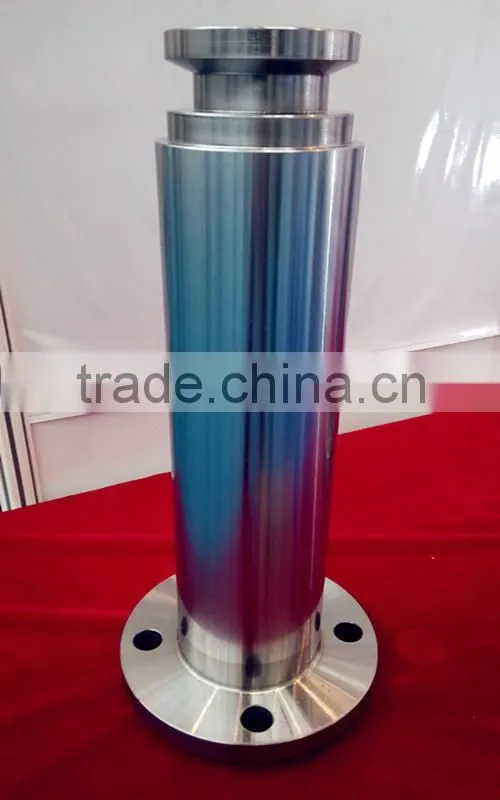

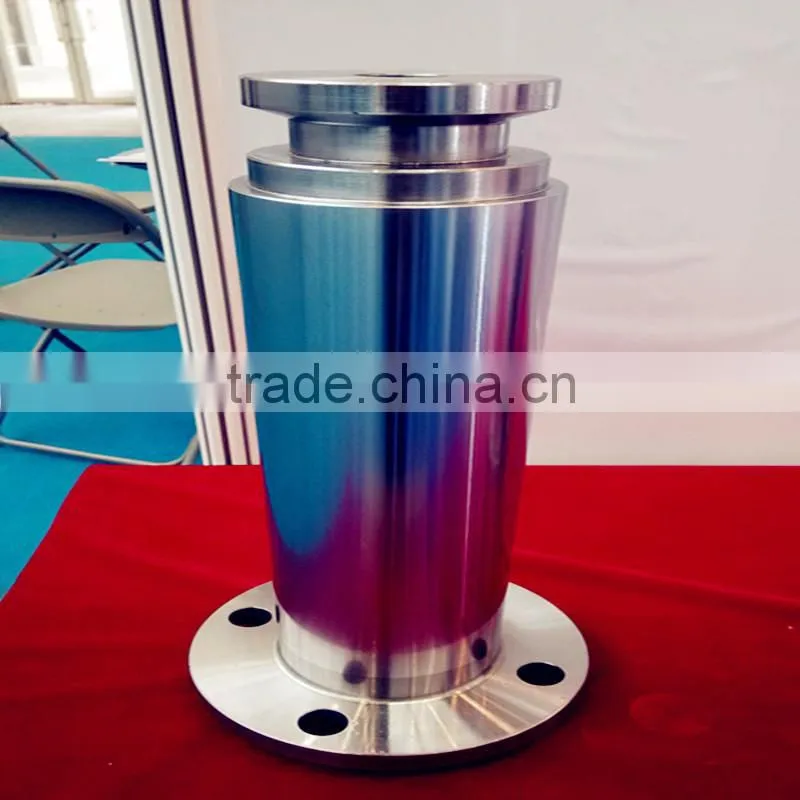

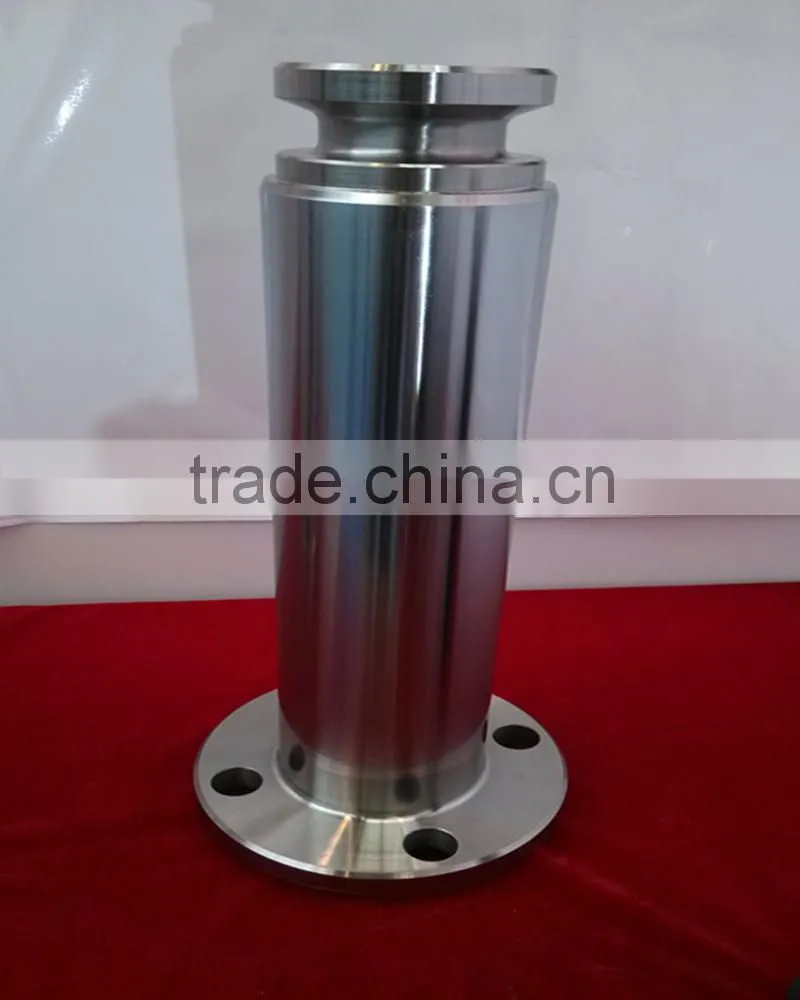

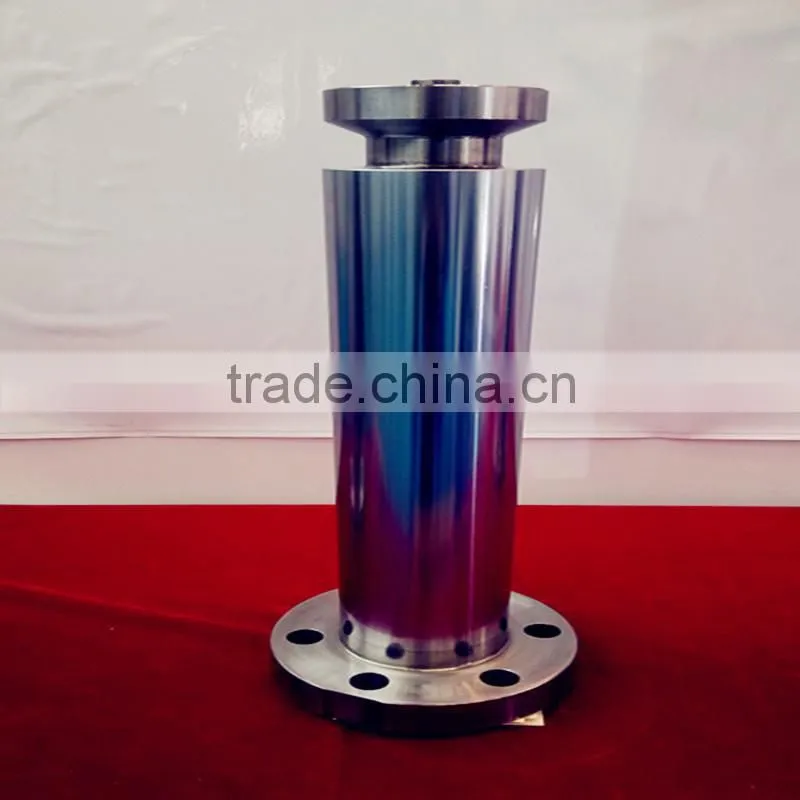

API certified mud pump parts piston rod
1.There material of piston rod is 45# steel or 35GrMo. It's used with piston together. And the size of core is included 1 5/8" and 1 1/2''.
2. Piston rods are forged using alloy steel.the intension of products is improved after heat treatment.
3. The surface of product is zincification,nickel-plate,and plating with decorating chrome.
4. After numerical control processing,the products can meet various demands of clients.
Name |
Technical parameters |
Remarks |
Diameter |
Φ9-Φ200 |
|
Diameter tolerance |
F6-f9 |
Customized |
Thickness of chromium coating (μm) |
Δ=0.015-0.05 |
Customized |
Surface roughness |
Ra0.2-Ra0.4 |
|
Cylindricity (mm) |
≤0.01 |
|
Straightness (mm) |
≤0.15/1000 |
|
Surface hardness |
HB220-HB260 |
|
Neutral salt spray test (NSS) |
Class 9,120h |
Refer to GB6458-86 standard, equivalent to ISO3768-1976 |
*One year quality assurance
* Training: operation manual, overseas installation is also available;
* Spare parts are available in our factory at cost price for former customers;
* 24 hour on-line guidance for operation and maintenance.
Packaging: standard export package or as consumer’s request
Shipping: air transportation, water way transportation, railway transportation, road transportation
