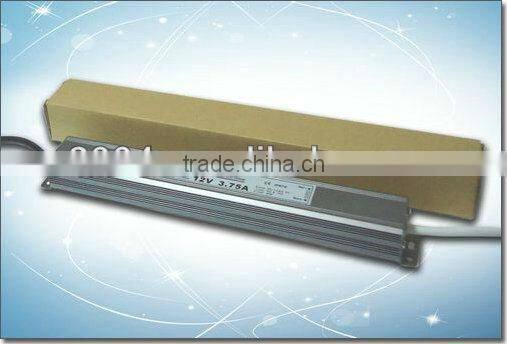

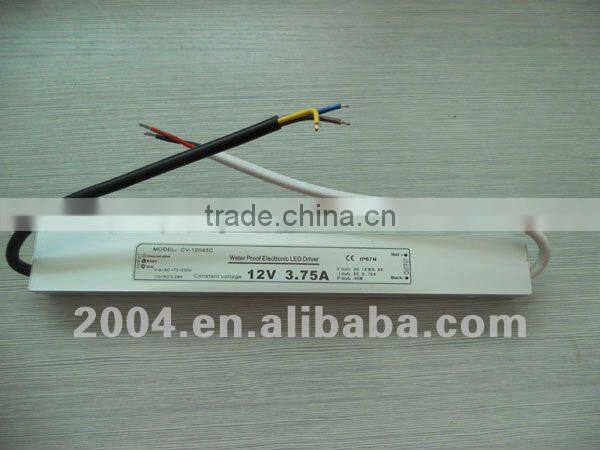

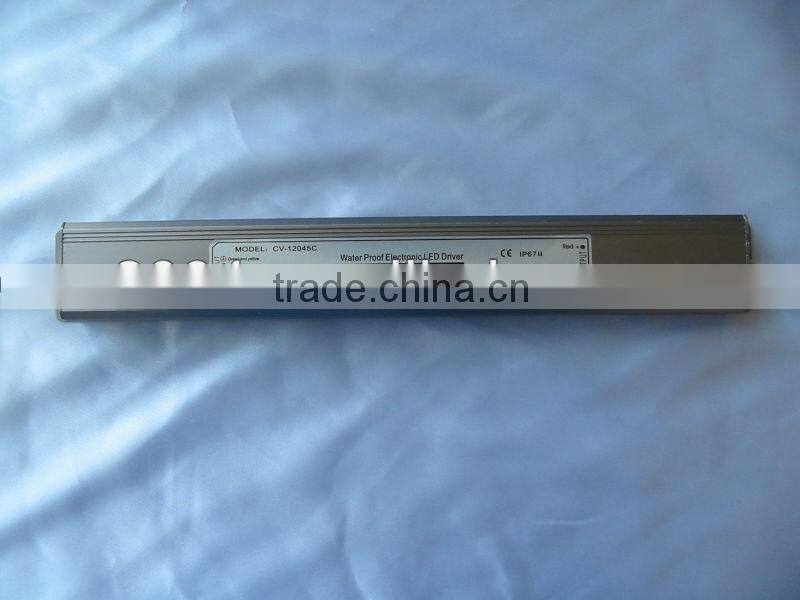

Waterproof Outdoor LED Power Supply 45W 12V IP67
USD $6.4 - $8.4
/ Piece
10 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
You May Like
-
ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
-
MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
-
Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
-
Power Supplies TVD1.3-15-03 Original Stock
-
10W 2.5KV Isolation Wide Input AC/DC Converters
-
30W Wide Voltage Input DC/DC Converters power supply
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ST | Model Number: | CV-12045C |
| Output Power: | Other, 45W | Output Type: | Single | Input Voltage: | Other, AC 170~250V |
| Output Voltage: | DC 12±0.5V | Output Current: | DC 3.75A |
Product Description
Specifications
Waterproof Outdoor LED Power Supply 45W 12V IP671.AC 170-250V 47~63HZ
2.DC 45W 12V 3.75A
3.CE,ROHS,SAA,C-TICK
Waterproof Outdoor LED Power Supply 45W 12V IP67
1.AC 170-250V 47~63HZ
2.DC 45W 12V 3.75A
3.CE,ROHS,SAA,C-TICK
AC/DC LED Power Supply constant voltage series
Technical Parameters:
Working Voltage(V) | AC 170-250V | Efficiency | ≥83% |
Input Current(A) | AC 0.28A | Power Factor | ≥0.92 |
Output Voltage(V) | DC 12±0.5V | Maximum Output Power(W) | 45W |
Maximum Output Current(A) | DC 3.75A |
|
|
Voltage Resistance(KV) | AC 2KV/3mA 3S | Short-circuit Protection | Yes |
Temperature Rise(°C) | ≤28°C | Temperature Protection | Yes |
Waterproof Rate | IP67 | Overload Protection | Yes |
Certificate | CE(EMC+LVD) | Working Temperature(°C) | -25°C~45°C |
N.W(g) | 330g |
|
|
