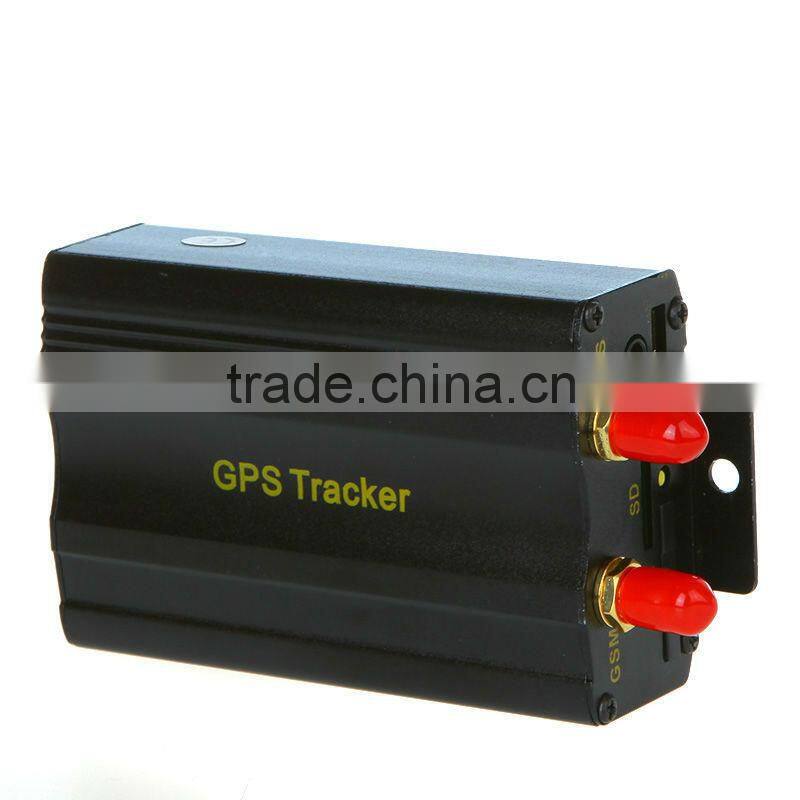

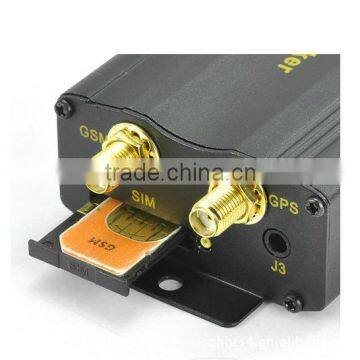

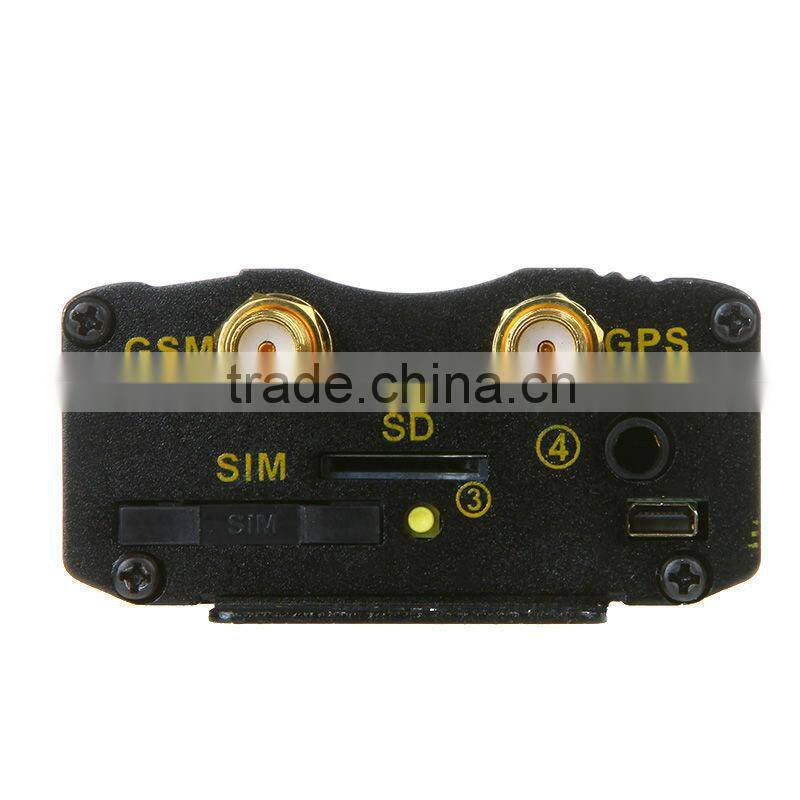

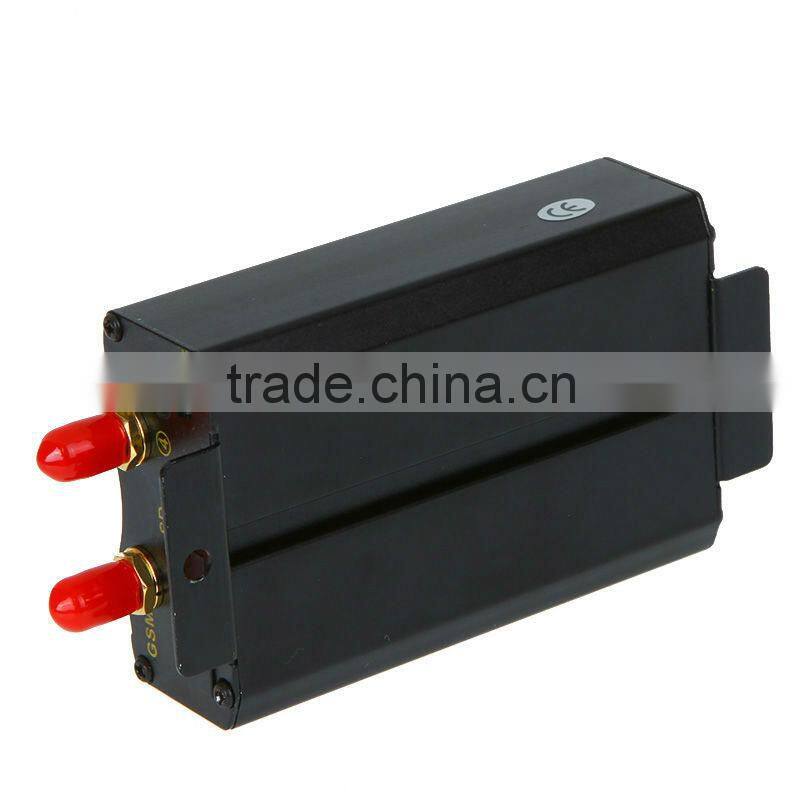

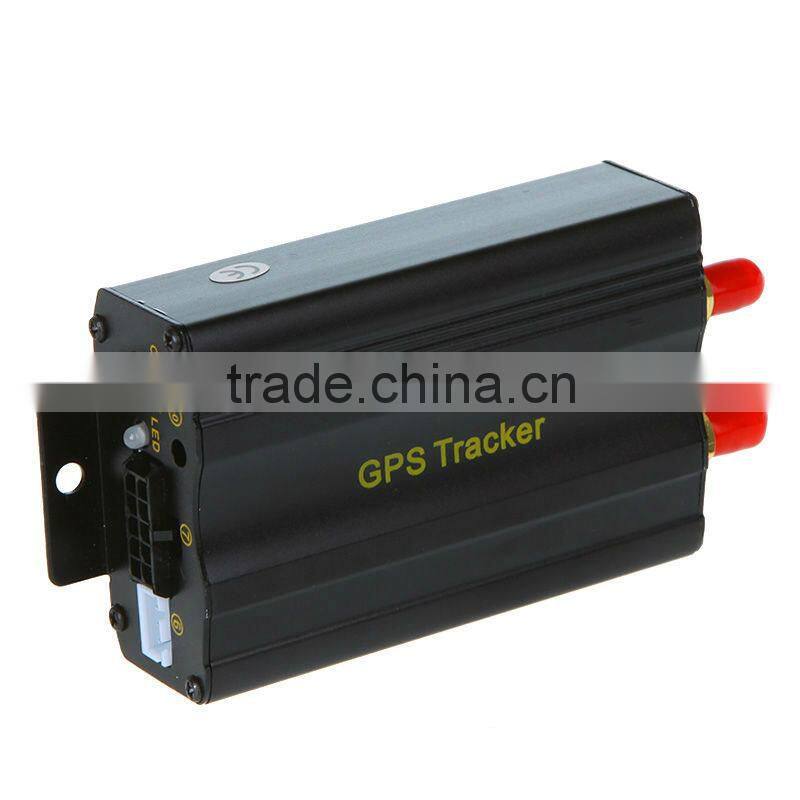

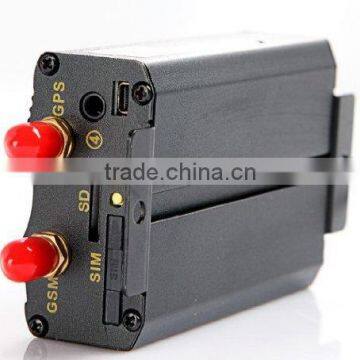

gps vehicle tracker TK103A with GSM Alarm SD Card Slot Anti-theft Real-time tracking
Overview:
This tracker GPS103A is a new product based on the GSM / GPRS network and GPS satellite positioning system. It provides multiple functions, such as security, positioning, surveillance, emergency alarms and so on.
Features:
GPS/GSM station positioning.
SMS/GPRS/internet network data transfer.
Point-to-point, point to group, group-to-group monitoring.
Continuously auto track upon different time and distance intervals.
Absolute street address with GSM network.
SD card for data logging.
Can be installed on Bus, taxi, truck, car, etc.
Maximum 5 cell phone numbers are allowed to admin the tracker.
Other functions: SOS, Geo-fence, movement alarm, over speed alarm, accident alarm, voice monitoring etc.
Cut off the oil and power system.
The on-line web page tracking software has one month free trial, afterwards cost about 10USD per year.
Optional accessories:
Shock sensor and siren.
Note: the optional accessories are not include, to purchase them, please contact the seller.
Specifications:
| Content | Specifications |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS module | SIM900B |
| GPS module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s |
| Voltage of car power system | 12V ~ 24V |
| Backup battery | Rechargeable 3.7V 800mAh Li-ion battery |
| Storage Temperature | -40°c~ 85°c |
| Operation Temperature | -20°c ~ 65°c |
| Humidity | 5% ~ 95% non-condensing |
| Item size | 10.5 * 5.5 * 2.5cm (4.1 * 2.2 * 1.0in) |
| Item weight | 105g / 3.7oz |
| Package size | 19 * 13 * 5.8cm (7.5 * 5.1 * 2.3in) |
| Package weight | 567g / 1.25Lbs |

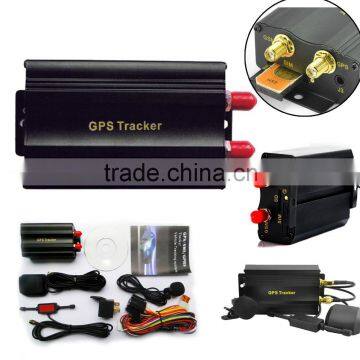

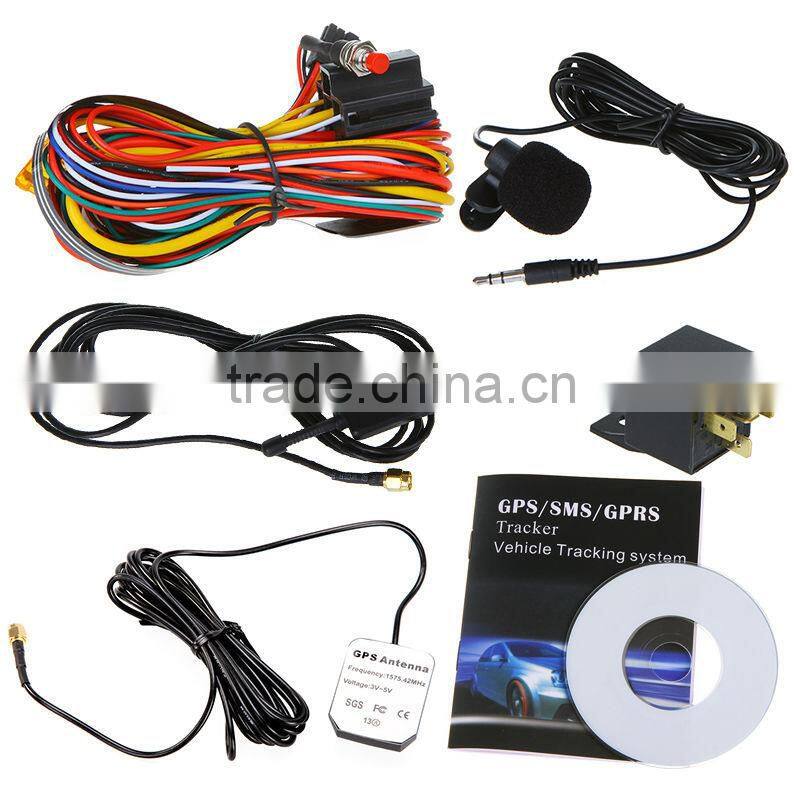

Item Includes:
1 * GPS tracker

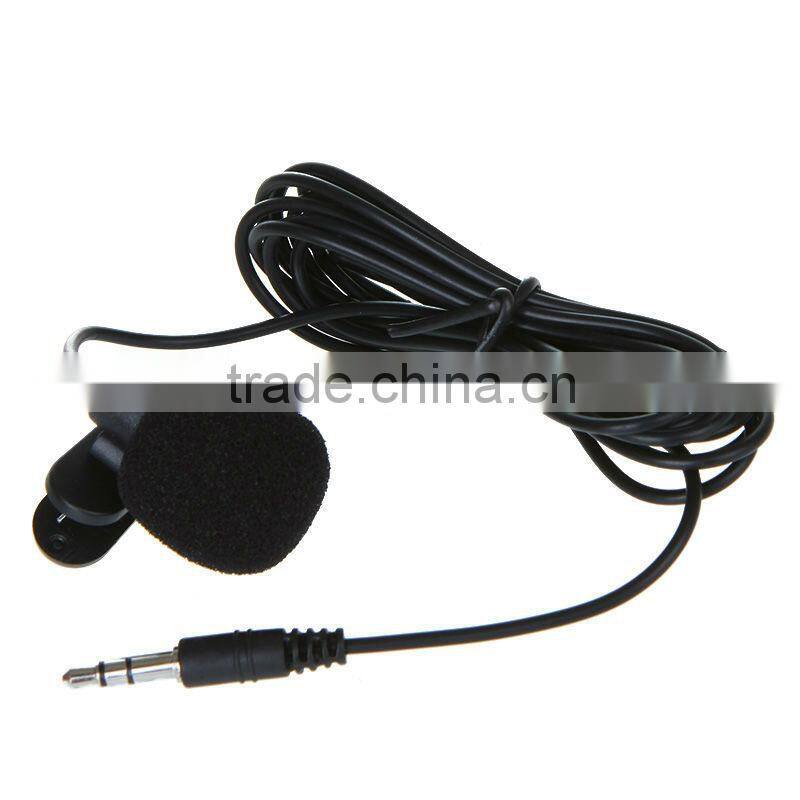

1 * Microphone (1.5 meters)

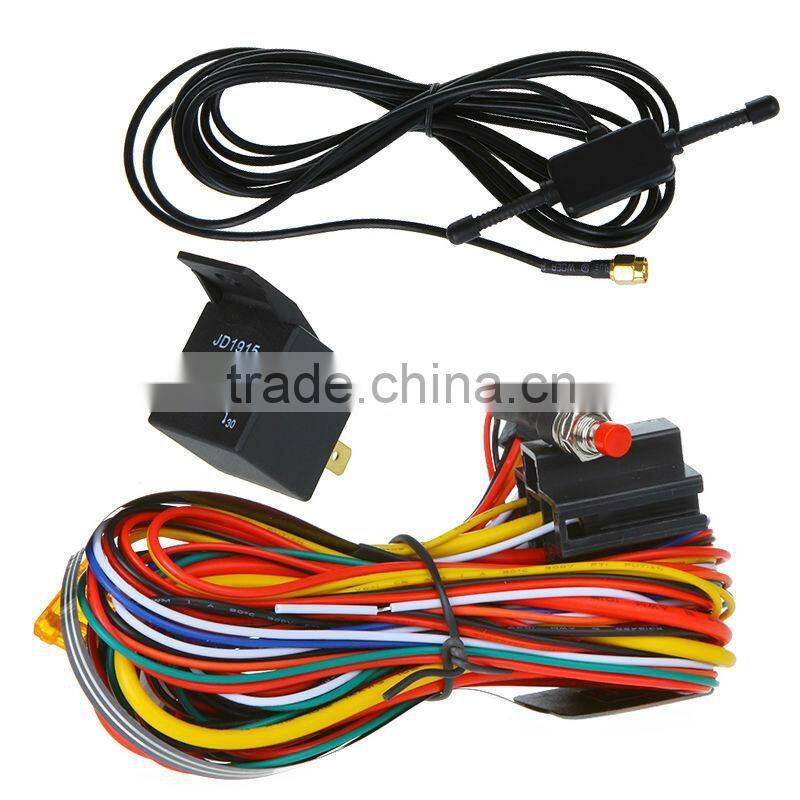

1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Relay
1 * Harness (10 Pin)
1 * User manual
1 * CD with software
