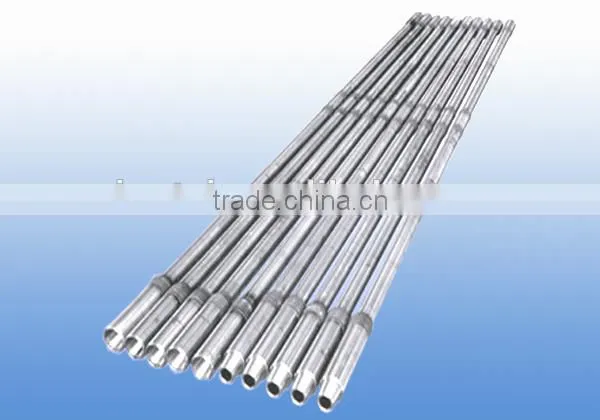

Low Price!! Oilfield 4145H Integral Heavy Weight Drill Pipe

Name: Low Price!! Oilfield 4145H Integral Heavy Weight Drill Pipe
Brand: Sinotai
SKU: 119534679
Availability: InStock

US$ 100 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

Sinotai

Type:

Drill Pipe

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Tianjin / Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Sinotai

Type Drill Pipe

Machine Type Drilling Tool

Certification API

Material Other, High Manganese Steel, 4142H OR 4145H

Processing Type Casting

Use Well Drilling

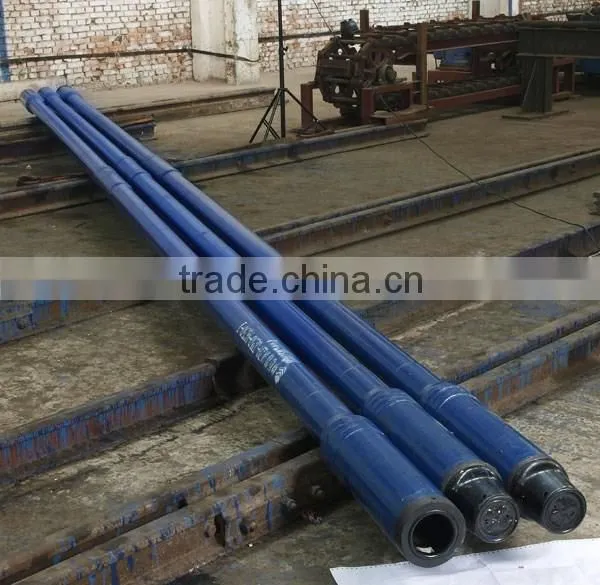

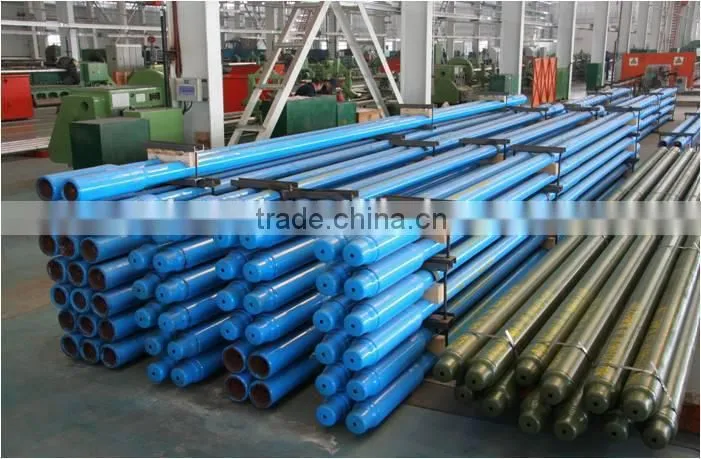

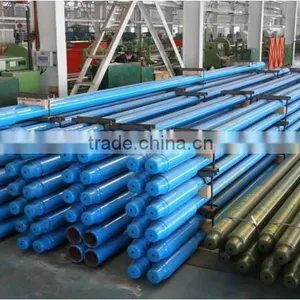

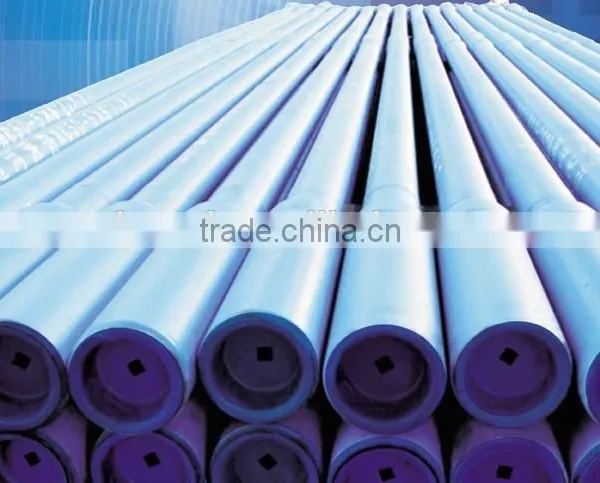

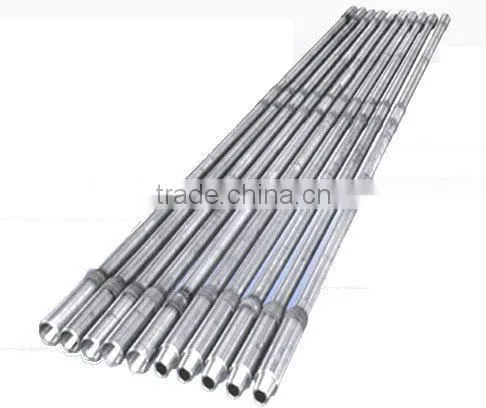

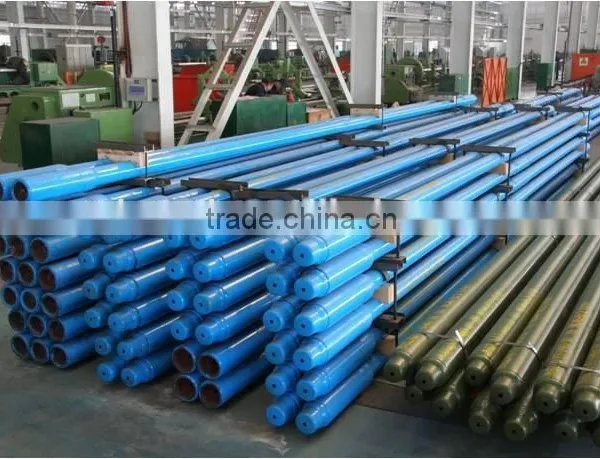

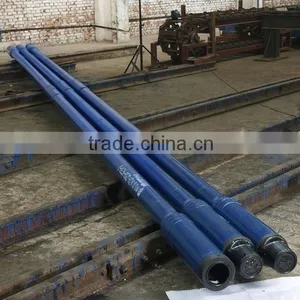

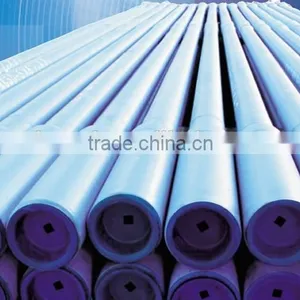

Integral heavy weight drill pipe

Features:

Made of AISI 4142H - 4145H alloy structural steel.
Production complies with the provisions under the Standard SY/T 5146-1997. Connector screws comply with the provisions of the Standard API SPEC 7-1.
Heavyweight drill pipe is a kind of drilling tool of medium weight which is similar to the drilling rod. Its wall thickness is greater than that of the drill rod but smaller than that of the drill collar.
The prolonged tool joint is linked to the pipe with thick walls. Generally, it is placed between the drill rod and the drill collar during the formation of the drilling string to prevent the unexpected change in the section of the drill string and reduce fatigue of the drill rod.
It can be used for directional well drilling, to work quickly when the torque is rather low in order to cut wear and damage of drilling string. As its steel performance is lower than that of the drill collar and the contact area on the well wall is small, differential pressure jamming is rare.

Specifications :

Size	Outside Diameter		Inside Diameter				Connection						Body		Single of Weight kg
							Type	Outside Diameter				Bevel edge of pin and box shoulder DF mm	Upset Section Size
	mm	in	mm		in			mm			in		Central Section DF mm	End Section B mm
I type (single length is 9300mm)
ZH-JZ55-5 1/2FH-	139.7	5 1/2	92.1		3 5/8		5 1/2FH	177.8			7	170.7	152.4	144.5	730
ZH-JZ50-NC-	127.0	5	76.2		3		NC50 (4 1/2IF)	165.1			6 1/2	154.0	139.7	130.2	700
ZH-JZ45-NC46-	114.3	4 1/2	71.4		2 13/16		NC46(4IF)	158.8			6 1/4	145.3	127.0	117.5	585
ZH-JZ35-NC38	88.9	3 1/2	52.39		2 1/16		NC38	120.7			4 3/4	116.3	101.6	92.1	370
II type (single length is 13500mm)
ZH-JZ50-NC50-	127.0	5	76.2	3		NC50(41/2IF)			165.1	6 1/2		154.0	139.7	130.2	945
ZH-JZ45-NC46-	114.3	4 1/2	71.4	2 13/16		NC46(4IF)			158.8	6 1/4		145.3	127.0	117.5	790
