API 5DP Drill Collar, Oil Machinery

API 5DP Drill Collar, Oil Machinery thumbnail-1
API 5DP Drill Collar, Oil Machinery thumbnail-2
API 5DP Drill Collar, Oil Machinery thumbnail-3
API 5DP Drill Collar, Oil Machinery photo-1
API 5DP Drill Collar, Oil Machinery photo-2
API 5DP Drill Collar, Oil Machinery photo-3
US$ 100 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SInotai
Type:
Drill Collar
Contact Supplier Request Quote Chat Now
Sinotai Petroleum Equipment Co., Ltd.
Silver Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanhai / Tianjin / Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name SInotai
Type Drill Collar
Machine Type Drilling Tool
Certification API
Material Other, High Manganese Steel, 4145H
Processing Type Casting
Use Well Drilling

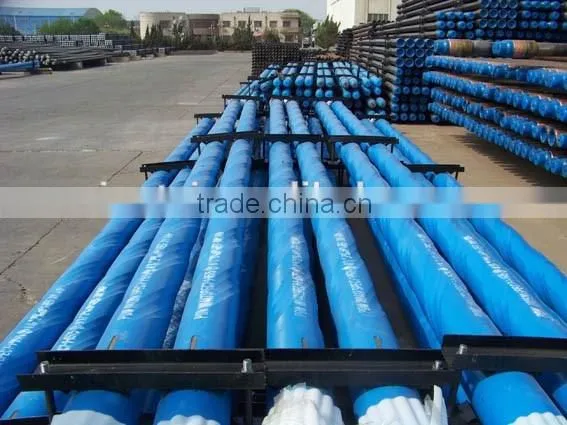

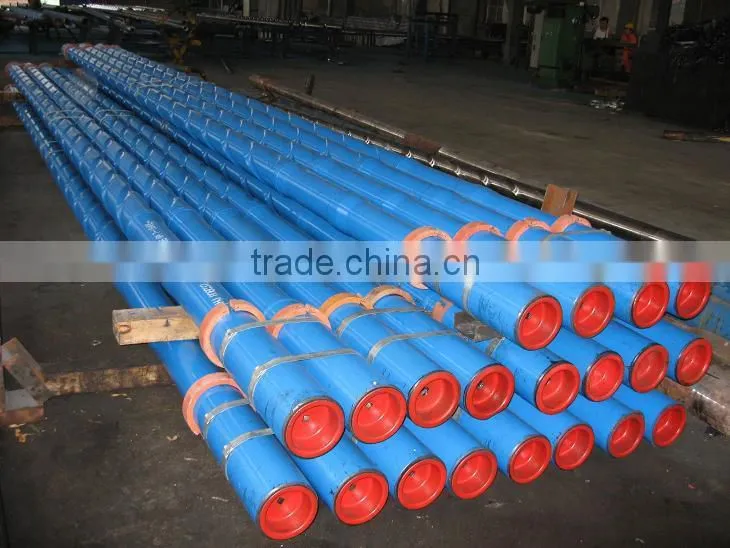

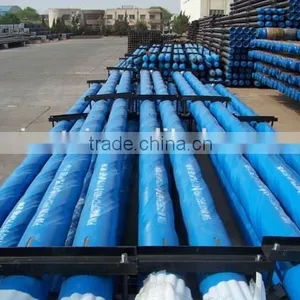

Drill Collar

Features:

  1. Drill collars are manufactured from AISI 4145H modified steel, and are supplied in the "as rolled" surface finish condition. Alternative surface finishes are available.

  2. All connections are phosphate-coated or copper plated to improve resistance to corrosion.

  3. We offers optional slip and elevator recesses to improve handling efficiency and safety. Unless otherwise specified, slip and elevator recesses are machined in compliance with API spec 7-1 guidelines.

  4. Our company offers steel, cast steel and plastic steel thread protectors for its drill stem products.

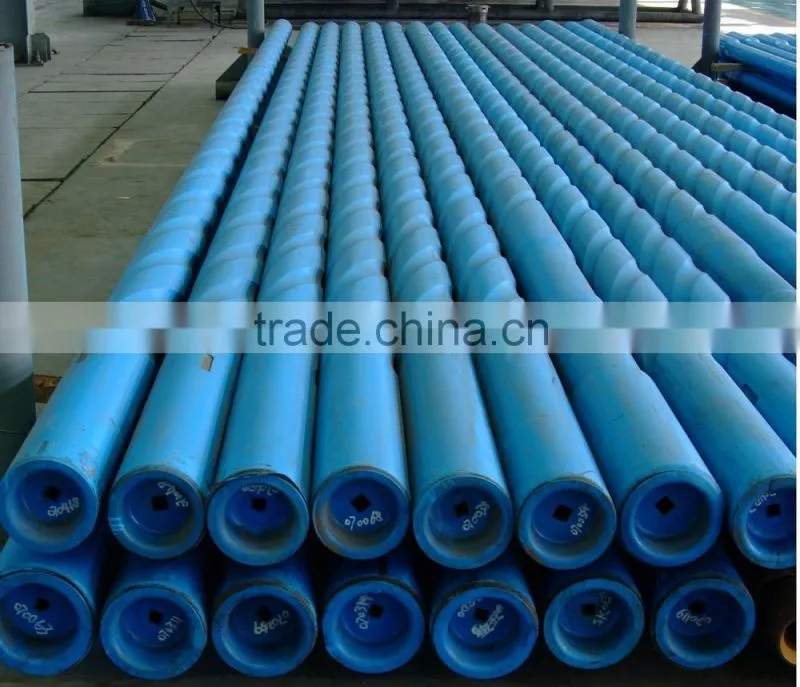

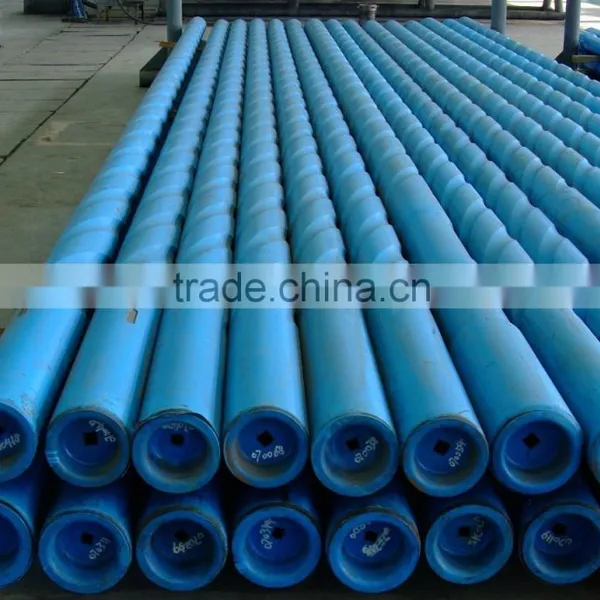

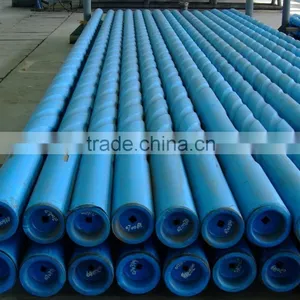

  5. We also supply spiral drill collars.Spiral drill collars utilize spiral grooves to make mud circulate freely around the drill collar to equalize pressure and prevent a seal from forming.

    Specifications:

Drill Collar Number

Outside Diameter

Inside Diameter

Length

mm

Bevel Diameter DF mm

Ref.Bend g

Strength Ratio

mm

in

mm

in

NC23-31

79.4

3 1/8

31.8

1 1/4

9150

76.2

2.57:1

NC26-35(2 3/8IF)

88.9

3 1/2

38.1

1 1/2

9150

82.9

2.42:1

NC31-41(2 7/8IF)

104.8

4 1/8

50.8

2

9150

100.4

2.43:1

NC35-47

120.7

4 3/4

50.8

2

9150

114.7

2.58:1

NC3850(3 1/2IF)

127.0

5

57.2

2 1/4

9150

121.0

2.38:1

NC44-60

152.4

6

57.2

2 1/4

9150or9450

144.5

2.49:1

NC44-62

158.8

6 1/4

57.2

2 1/4

9150or9450

149.2

2.91:1

NC46-62(4IF)

158.8

6 1/4

71.4

2 13/16

9150or9450

150.0

2.63:1

NC46-65(4IF)

165.1

6 1/2

57.2

2 1/4

9150or9450

154.8

2.76:1

NC46-65(4IF)

165.1

6 1/2

71.4

2 13/16

9150or9450

154.8

3.05:1

NC46-67(4IF)

171.4

6 3/4

57.2

2 1/4

9150or9450

159.5

3.18:1

NC50-67(4 1/2IF)

171.4

6 3/4

71.4

2 13/16

9150or9450

159.5

2.37:1

NC50-70(4 1/2IF)

177.8

7

57.2

2 1/4

9150or9450

164.7

2.54:1

NC50-70(4 1/2IF)

177.8

7

71.4

2 13/16

9150or9450

164.7

2.73:1

NC50-72(4 1/2IF)

184.2

7 1/4

71.4

2 13/16

9150or9450

169.5

3.12:1

NC50-77

196.8

7 3/4

71.4

2 13/16

9150or9450

185.3

2.70:1

NC50-80

203.2

8

71.4

2 13/16

9150or9450

190.1

3.02:1

6 5/8REG

209.6

8 1/4

71.4

2 13/16

9150or9450

195.7

2.93:1

NC61-90

228.6

9

71.4

2 13/16

9150or9450

212.7

3.17:1

7 5/8REG

241.3

9 1/2

76.2

3

9150or9450

223.8

2.81:1

NC70-97

247.6

9 3/4

76.2

3

9150or9450

232.6

2.57:1

NC70-100

254.0

10

76.2

3

9150or9450

237.3

2.81:1

8 5/8REG

279.4

11

76.2

3

9150or9450

266.7

2.84:1

API 5DP Drill Collar, oil machineryAPI 5DP Drill Collar, oil machineryAPI 5DP Drill Collar, oil machinery
