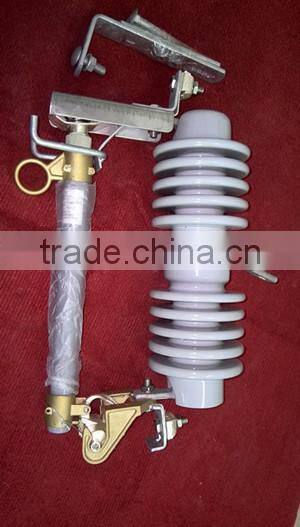

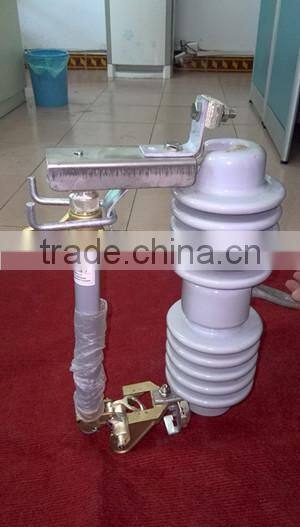

12kV/15kV Porcelain Dropout Fuse
- Qingdao port of China
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | LJ | |
| Model Number | RW-6~35 |
Product Description
Specifications
12kV/15kV Porcelain Dropout Fuse1.current limiting fuseCLFs
2.high voltage fuse for protecting the transformer
12kV/15kV Porcelain Dropout Fuse
Description
The RW Type outdoor AC high-voltage fuse is suitable for the 6,10,35KV electric transmission line and Power transformer short-circuit and Circuit protection

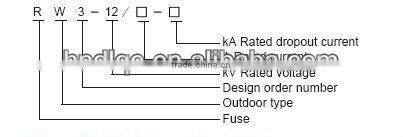

ORDERING CODE
Technical parameters
Model | RW-6-10~35 Type | Power frequency dry test voltage (kV) | 54 |
Rated voltage(kV) | 6~35 | Power frequency temperature test voltage(kV) | 34 |
Rated current(A) | 2~400 | Full wave surge voltage (kV) | 75 |
Rated three-phase Breaking capacity(upper limit) | 30~400 | the conduction and joint part except for fuse tube is allow the temperature rise(kV) | 60°C |
megavolt-ampere(Lower limit) | 10~120 | Single-phase weight(kg) |
|
Service environment
1.the Ambient air temperature is 25 °C ~ +40°C
2.The Installation of the ground elevation is not more than 1500m
3.Atmospheric conditions: Allow to use in the open air, rain and snow caused by pollution condition ,But not allow to have the serious conductive dust or cause metal corrosion environment.
