Specifications
1.Meet API & ISO certification
2.Competitive price
3.Superior quality
4.Best service

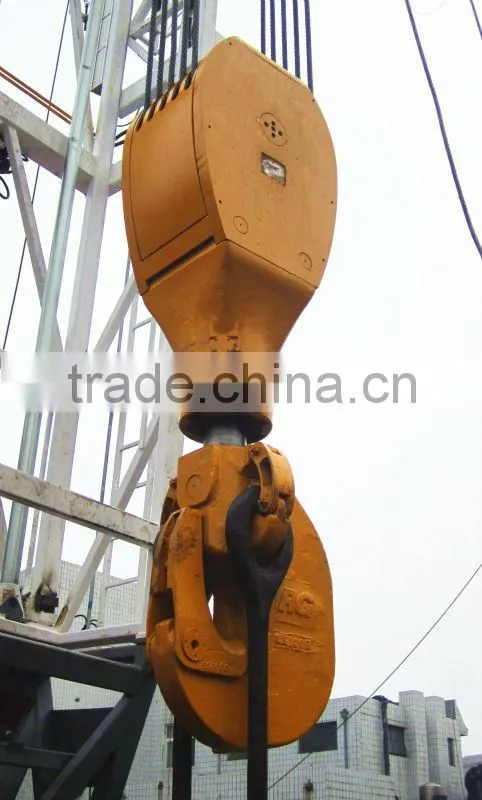

Hook Block
Main features of the hook block:
1. Joining the traveling block and the hook together reduced overall length to satisfy the requirement of a top drive.
2. The shaft of the traveling block are forged with alloy steel and provided with a lubrication hole of bearing for one sheave.
3. The sheave grooves are intermediate frequency quenched so as to improve surface hardness and extend service lift of sheaves.
4. All sheaves had double-row conical roller bearings and each bearing has individual lubricating channel.
5. There is a reliable safety device at the hook.
6. The primary-load-carrying parts of the hook are subject to NDE test.
7. The hook block conform to API Spec. 8A/8C and API monogram can be used.
The main technical performance and specification for the hook block:
Model |
YG90 |
YG135 |
YG170 |
YG315 |
YG450 |
|
|
Max. hook load KN |
900 |
1350 |
1700 |
3150 |
4500 |
|
|
Dia. of wire line mm |
26(1”) |
26(1”)/29(1-1/8”) |
29(1-1/8”)/32(1-1/4”) |
32(1-1/4”)/35(1-3/8”) |
35(1-3/8”)/38(1-1/2”) |
|
|
OD of sheave mm |
762(30) |
915(36) |
915(36) |
1270(50) |
1524(60) |
|
No. of sheave |
4 |
4 |
5 |
6 |
6 |
|
|
Major-hook opening mm(in) |
155(6-1/16”) |
165(6-1/2”) |
180(7”) |
220(8-5/8”) |
220(8-5/8”) |
|
|
Major-hook dia. mm(in) |
116(4-1/2”) |
140(5-1/2”) |
150(6”) |
180(7”) |
180(7”) |
|
|
Minor-hook dia. mm(in) |
80(3-1/4”) |
90(3-1/2”) |
90(3-1/2”) |
120(4-3/4”) |
120(4-3/4”) |
|
|
Size mm |
2908 |
3195 |
3294 |
4322 |
4887 |
2690 |
806 |
960 |
960 |
1350 |
1600 |
1350 |
|
533 |
616 |
630 |
784 |
880 |
800 |
|
|
Weight Kg |
2850 |
3590 |
4585 |
8787 |
12530 |
|
