Home > Industrial Equipment & Components > Compressor > Compressor Unit > 100HP INDUSTRIAL SCREW AIR COMPRESSOR(GS-0221R)

100HP INDUSTRIAL SCREW AIR COMPRESSOR(GS-0221R)

Name: 100HP INDUSTRIAL SCREW AIR COMPRESSOR(GS-0221R)
Brand: 100HP INDUSTRIAL SCREW AIR COMPRESSOR
SKU: 119528301
Availability: InStock

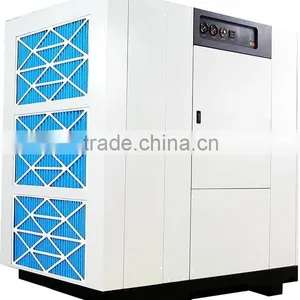

100HP INDUSTRIAL SCREW AIR COMPRESSOR(GS-0221R) thumbnail-1

100HP INDUSTRIAL SCREW AIR COMPRESSOR(GS-0221R) photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

100HP INDUSTRIAL SCREW AIR COMPRESSOR

Model Number:

GS-0221R

Contact Supplier Request Quote Chat Now

Golconda Source Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name 100HP INDUSTRIAL SCREW AIR COMPRESSOR

Model Number GS-0221R

Voltage 75KW/ 100HP

Dimension(L*W*H) L 2,800 * W 1,350 * H 1,625 MM

Weight 1800 KGS

GS-0221R 100HP INDUSTRIAL SCREW AIR COMPRESSOR

DESCRIPTION

* F.A.D. OF WORKING PRESSURE:

- 7 BAR: 13.30 M³/MIN; 470 CFM.

- 10 BAR: 11.20 M³/MIN; 395 CFM.

- 13 BAR: 9.60 M³/MIN; 340 CFM.

* MOTOR POWER: 75KW/ 100HP.

* AIR OUTLET PIPE DIAMETER: 2-1/2”

* COMPRESSOR DIMENSIONS:

L 2,800 × W 1,350 × H 1,625 MM.

* NET WEIGHT: 1,800 KGS.

* FEATURES:

- TEMPERATURE CONTROL SYSTEM: ONCE OIL TEMPERATURE EXCEED THE VALUE SET (STANDARD 70^OC/158^OF), THE CONTROL ACTIVATES, PART OF OIL FLOW PASSES THROUGH COOLER. IF IT REACHES A VALUE ABOUT 15^OC HIGHER, OIL VALVE CLOSES, ALL OIL PASSES THROUGH COOLER.

- OIL/ AIR SEPARATOR SYSTEM: Effective separation of oil and vapor, air discharged is clean with oil content below 2 ppm.

- COOLING SYSTEM: For markets with 38~40^oC and humidity 70~100%, we provide enlarged cooler suitable for ambient temperature 50^oC. It is 30% larger than AKG original design.

- INTAKE CONTROL: Allows for a closed inlet to reduce the starting load.
