HTB12 AC Motor

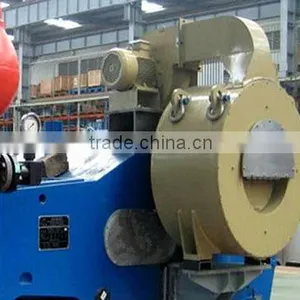

HTB12 AC Motor thumbnail-1
HTB12 AC Motor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SINOTAI
Model Number:
HTB12
Contact Supplier Request Quote Chat Now
Sinotai Petroleum Equipment Co., Ltd.
Silver Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SINOTAI
Model Number HTB12
Type Other, AC motor for drilling pump
Machine Type Drilling Equipment
Certification API
Material High Manganese Steel
Processing Type Casting
Use Well Drilling

Specifications

1.Great torque
2.Mall size, light weight
3.High efficiency
4.Maintenance-free
5.High reliability

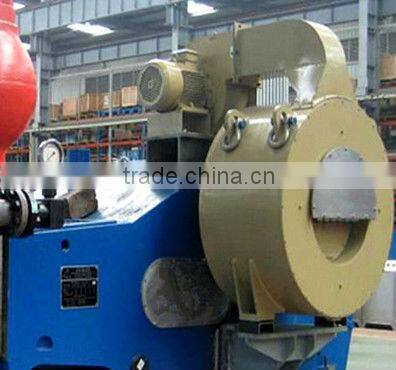

HTB12 AC motor for drilling pump



 [ Offshore Drilling Module - Component ]



Product Explanation:This engine is a three-phase squirrel-cage induction motor researched to support the 3NB-1600F direct drive slurry pump group drilling rig, it is directly used as the driving force of the slurry pump pinion shaft.




The engine is designed in accordance with the increased safety explosion-proof requirements , the main features are: great torque, mall size, light weight, maintenance-free, high efficiency and high reliability.



Product types and specifications:



Power rating

1200 kW

Voltage rating

575V

Maximum voltage

690V

Current rating

1531A

Torque rating

22918 N·m

Rated revolution

500r/min

Rated frequency

68Hz

Power factor

0.82

efficiency

96%

Max speed

700 r/min

Maximum constant frequency

93.5Hz

Connection mode

Y

Insulation class

H

Work characters

S1

Protection level

Main engineIP44,connecting boxIP55

Cooling method

Forced ventilation( with wind pressure testing switch)

Cooling draught fan

Explosion-proof type three-phase asynchronous motor11kW,380V,50Hz ,ExdⅡBT4

Heater

AC220V,290W,ExeⅡT4

Weight

4000 kg





 HTB12 AC motor
