ASTM A516Gr70/ASME SA516Gr70 is an excellent choice for service in lower than ambient temperature applications, has excellent notch toughness and is used in both pressure vessels and industrial boilers.ASTM A516Gr70/ASME SA516Gr70 offers greater tensile and yield strength when compared to ASTM A516Gr65/ASME SA516Gr65 and can operate in even lower temperature service.
steel plate specifications | |
Technique |
Hot Rolled |
Material Grade |
ASTM A516Gr70/ASME SA516Gr70
|
Thickness |
2mm-200mm |
Width |
600mm-3000(special specification is available) |
Length |
2000mm-12000mm(special specification is available) |
Packing |
Standard export packing or as per customer requirement |
Surface treatment |
Galvanized or Non galvanized or coated,etc |
Application |
Pressure vessel, tank farm, boiler etc. |

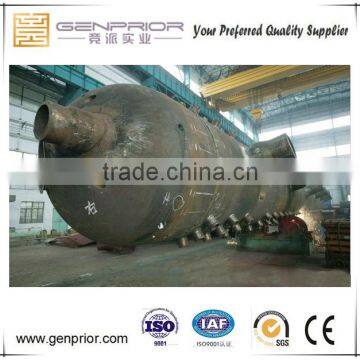

Counstruction of pressure vessel, boiler, tank farm.
Carbon(C) |
% |
Manganese(Mn) |
% |
Phosphorus(P) |
% |
|
12.55mm or less 12.5-50mm 50-100mm 100-200mm >200mm
|
0.27 0.28 0.30 0.31 0.31 |
12.5mm or less Heat Analysis Product Analysis Over 12.5mm Heat Analysis Product Analysis |
0.85-1.20 0.79-1.30
0.85-1.20 0.79-1.30 |
(max) |
0.035 |
Sulphur(S) |
% |
Silicon(Si) |
% |
|
|
(max) |
0.035 |
Heat Analysis Product Analysis |
0.15-0.40 0.13-0.45 |
||
Description |
Grade70 |
|
Tensile Strength(Ksi) Tensile Strength(MPa) Yield Strength(Ksi) Elongation in 200mm(min.%) Elongation in 50mm(min.%) Thickness(max/min) |
70-79 485-620 38 260 17 21 205 |
Our plates are sourced from the highest quality steel manufacturers in China and, like all our suppliers, these manufacturers have been vetted and assessed by our procurement team.
As well as being available from stock all steel plate can be cut to size and shape according to your fabrication and design requirements and all work is governed by our independently accredited and regularly audited quality systems to ISO 9001.
