API SF Type Plug ValvePressure: 6000psi~15000psi
Good sealing performance

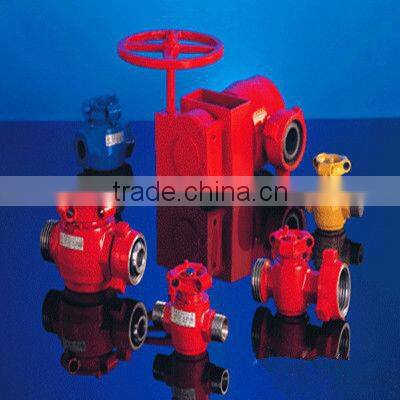

API SF Type Plug Valve
The model of plug valve available: SF42-1"×2",SF70-1"×2",SF105-1"×2",SF42-2"×2",SF70-2"×2",SF100-2"×2",SF42-3"×3",SF70-3"×3",SF105-3"×3",rated: 6000psi(42MPa)~15000psi(105MPa).
End connections of plug valves with sizes in English system may be union or male/female thread (LP,TBG), and they can be freely connected with products in international market;
Maintenance and repair of valve body can be done without removal, and no special tools are needed for removal;
The plugs have very good sealing performance;
Visible: There is a visible positioner where we can see if valve is open or closed. Brake spring will limit the position of valve;
3"hand wheel opener is suitable for opening in low temperature. Valves can be opened freely and flexibly.
