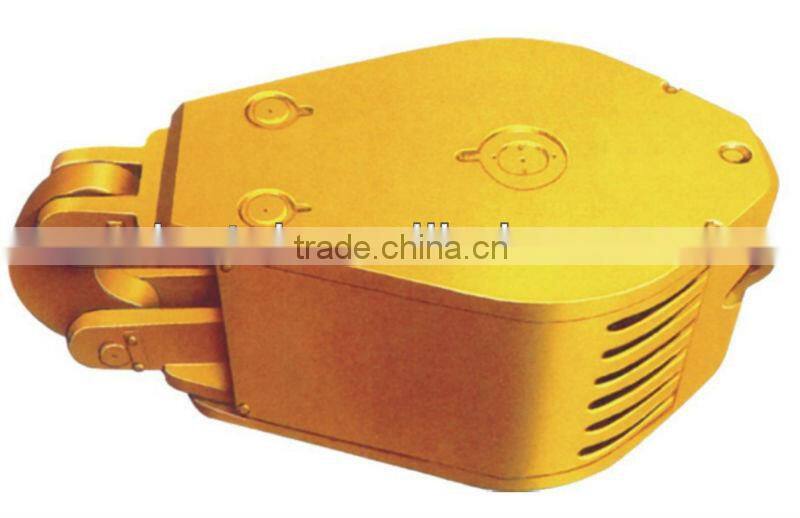

YC50 Traveling Block for Oilfiled Drilling Rig

YC50 Traveling Block

Main features of the traveling block:

1.The side plate assembly is made of thick steel plate. When hoisting or lowering the unloaded elevators, the wire line is always kept taut to facilitate the line spooled on the drum and the empty hook lowered.

2.The sheave grooves are intermediate frequency quenched so as to improve surface hardness and extend service lift of sheaves.

3.All sheaves had double-row conical roller bearings and each bearing has individual lubricating channel.

4.Quenched & tempered alloy steel shaft with lubrication hole of each bearing.

5.Heavy duty wire line guard.

6.High strength wire line elevator link.

7.The sheaves and the bearings are interchangeable with those of corresponding crown blocks.

8.The traveling block conform to API Spec. 8A/8C and API monogram can be used.

The main technical performance and specification for the traveling block:
