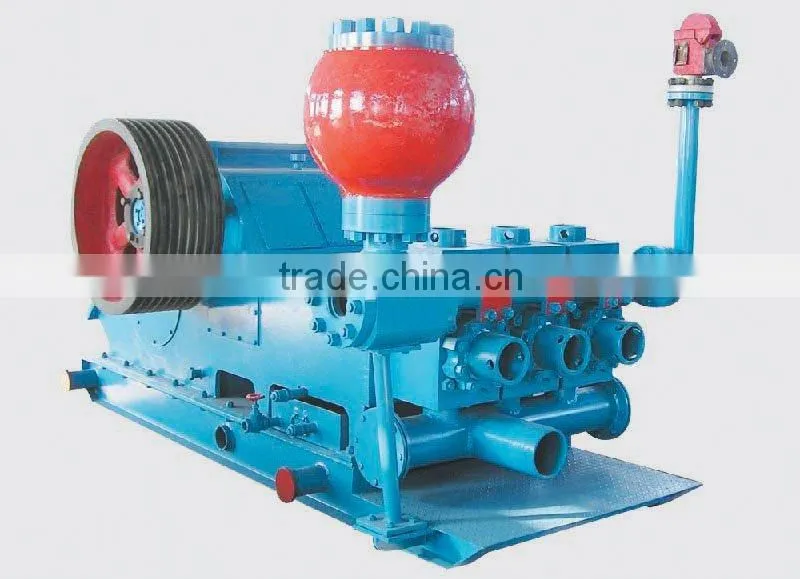

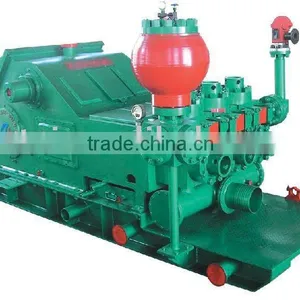

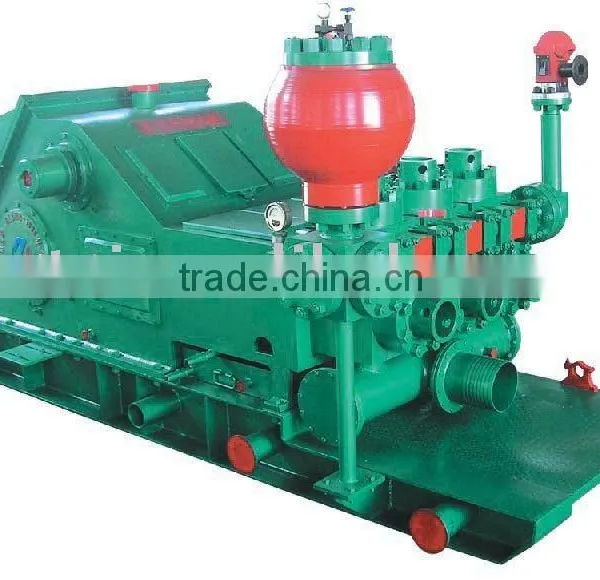

F1000 Mud Pumps for Drilling

Name: F1000 Mud Pumps for Drilling
Brand: sinotai
SKU: 119522305
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Shandong, China

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Shandong, China

Brand Name sinotai

Model Number F-1000

Usage Other, Oil Well

Specifications

F1000 mud pumps
1.standard: API Spec. 7K.
2.Type:F-500,F-800,F-1000,F-1300,F-1600,F-2200

F1000 mud pumps

The F-Series mud pumps conforms to API Spec. 7K.
Type:F-500,F-800,F-1000,F-1300,F-1600,F-2200
F-Series mud pumps adopt forced lubricating mode to solve the problem of temperature rising due to long time use
Compact structure and small volume.

Model	F-500	F-800	F-1000	F-1300	F-1600	F-2200
Max. input power KW(HP)	373 (500)	597 (800)	746 (1000)	969 (1300)	1193 (1600)	1341 (2200)
Rated pump speed spm	165	150	140	120	120	100
Max. fluid cylinder liner bore mm(in)	171 (6 3/4)	171 (6 3/4)	171 (6 3/4)	177.8 (7)	177.8 (7)	203 (8)
Stroks mm(in)	191 (7 1/2)	229 (9)	254 (10)	304.8 (12)	304.8 (12)	348 (15)
Hydrostatic test pressure of standard fluid cylinders psi(kg/cm2)	7500 (527)	7500 (527)	7500 (527)	7500 (527)	7500 (527)	7500 (527)
Gear ratio	4.38:1	4.31:1	4.32:1	4.31:1	4.3:1	4.27:1
Dia. of suction pipe in	8	10	12	12	12	--
Dia. of discharge pipe in	4	5	5	5	5	--
valve	API5	API6	API6	API7	API7	API8
