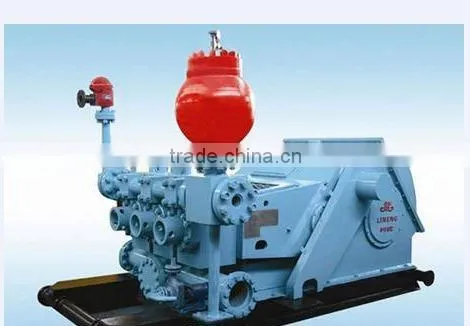

Help CenterN3NB-350 Mud Pump
Related Products
Specifications
3NB-350 mud pump1.Input power:350Hp
2.Rated input speed:582.8582.8
3.Weight:8.058t
4.Type:Triplex single role
Parameters
| Model | Type | Input power | Supporting force | Rated speed pump | stroke length |
| 3NB-350 | Triplex single role | 350Hp | 6190ZC-1(Diesel Engine) | 120Stroke /min | 180mm |
| Rated input speed (r/min) | Axle rated speed (r/min) | Suction Pipe Diameter | Y400-6.28KW (Motor) | Dimension(mm) | Weight |
| 582.8 | 540 | 203mm | Discharge Pipe Diameter 76mm | 3100×2080×2015 | 8.058t |
| Several pump | Bore (mm) | |||||||
| 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | |
| Stroke /min | Displacement(L/S) | |||||||
| 130 | 7.44 | 9.18 | 11.1 | 13.23 | 15.52 | 18.01 | 20.67 | 23.52 |
| 120 | 6.87 | 8.48 | 10.26 | 12.21 | 14.33 | 16.62 | 19.08 | 21.71 |
| 110 | 6.29 | 7.77 | 9.4 | 11.19 | 13.14 | 15.23 | 17.49 | 19.90 |
| 100 | 5.72 | 7.06 | 8.55 | 10.17 | 11.94 | 13.84 | 15.90 | 18.09 |
| Rated pump pressure(MPa) | 31 | 25 | 20.8 | 17.5 | 14.9 | 12.8 | 11.2 | 9.8 |
| Mechanical efficiency by 90% volumetric efficiency by 100% | ||||||||
Features
1.Power End
The power pump shell is the structure of steel plate welding and has been tested with its intensity by authority. The crankshaft is a composed structure of straight shaft and eccentric wheel. Its airproof part of elastic ripple tube has been awarded a patent certificate by the state. The transmission gear is of medium hard side to improve the enduring ability.
2.Fluid End
Liquid power side valve is of whole forging with a vertical structure, the volume interstice is minimum. The k1:6 wimble surface has been processed by roll pressing and therefore is improved significantly with its cooperative precision. The water supply valve is fastened reliably and conveniently. The valve box and the base holes conform to APL standard.
3.Design Features
Parameters were optimized and the stroke has been lengthened appropriately to reduce the number of strokes to enhance the intake performance of the pump and for longer endurance of the relatively weak parts. The pumps are widely used in oil fields and other industrial and mining enterprises, well drilling and well maintenance, etc. The serial products are produced strictly by SY5138 standards established by the Petroleum Industry Ministry of China and factory-leaving experiments are carried out accordingly.
