Home > Packaging & Printing > Packing Machinery > Wrapping Machine > FULLY AUTO STRAIGHT FEEDING SLEEVE SEALER AND SHRINK TUNNEL Quality Choice

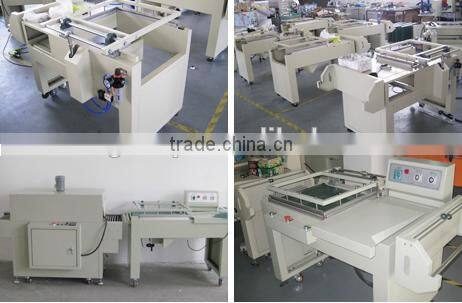

FULLY AUTO STRAIGHT FEEDING SLEEVE SEALER AND SHRINK TUNNEL Quality Choice

Name: FULLY AUTO STRAIGHT FEEDING SLEEVE SEALER AND SHRINK TUNNEL Quality Choice
Brand: MOTECH
SKU: 119514737
Availability: InStock

FULLY AUTO STRAIGHT FEEDING SLEEVE SEALER AND SHRINK TUNNEL Quality Choice thumbnail-1

FULLY AUTO STRAIGHT FEEDING SLEEVE SEALER AND SHRINK TUNNEL Quality Choice photo-1

US$ 7500.00 - 9800.00 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Application:

Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type:

Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch

Contact Supplier Request Quote Chat Now

Shanghai Motech M& E Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch

Packaging Material Glass, Metal, Paper, Plastic, Wood

Automatic Grade Automatic

Driven Type Pneumatic

Voltage 110V/220V 50/60Hz

Power 2.5KW

Place of Origin Shanghai, China

Brand Name MOTECH

Model Number MGH-6030AZ+MSF-6040E

Dimension(L*W*H) 550*450*120

Weight 225KGS

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

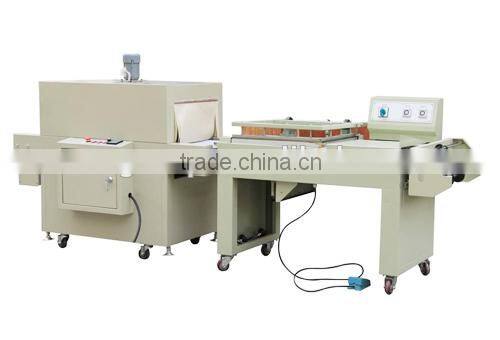

GH-6030AZ+SF-6040E fully-auto Straight Feeding Sleeve Sealer& Shrink Tunnel adopts the unique linear design and compact structure. It is very suitable for some limited space and don’t need to adjust the forward direction packing. What’s more, there is no length limits;
It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes.
The foreign advanced technology and production process make sure the stable performance.
Schneider “PLC” programmable process controller makes it achieve the mechanical, electrical and pneumatic integration.
After a special modification, the light and small products can also be packed;
It has advantages of speed and connection compared with the common side feed machine.
The sealing line is solid without cracking by cutting and anti- sticking by using special blade.
Two groups of imported level photoelectric devices are used to accurate positioning;
The imported conveyor belt is durable and the conveyor speed is controlled by frequency inverter.
The user-friendly control box makes the operator’s operation much easier;
The pressure device equipped behind the sealing makes sure the position is stable even for the light product during the procession.
SF-6040 shrink tunnel adopts the imported double recycling motor; so that the hot air in the tunnel is even to have more beautiful shrink effect.
The outside security cover can be installed according to the customer requirement.
The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according the products shape and material.
The frequency inverter controls the speed of the conveyor.
The separate control box makes sure the electrical components have good ventilation.
This machine is mainly applied to the longer products, such as cartons or paper trays which contain drink, beer, water, can or glass bottles collection or single shrink wrapping.

Model	MGH-6030AZ	MSF-6040E
Power	1.5	18kw
Power Supply	AC 220V 50/60Hz 1/3PH	AC 380/220V 50/60Hz 3PH
Max Packing Size L×W×H	L(unlimited ) W+H≤500mm,H≤300mm	W500×H300mm
Tunnel Size L×W×H	/	1800×600×400mm
Blade Length	670mm	/
Air Temperature	0~300℃	0~300℃
Packing Speed	0~15m/min.	0~20m/min.
External Air Source	6-8kg/cm2	/
Shrink Film	PE	PE
Machine Size L×W×H	3030×1000×1870mm	2800×950×1750mm
Packaging Size L×W×H	3080×1050×2020mm	2850×1000×1900mm
G./N. Weight	670/620kgs	625/565kgs

The Parts we Use

Sealing Part
Item Name	Brand	Remarks
Sensor	Banner	U.S.A
Solid Relay	Aole	Taiwan
Cylinder	AIRTAC	Taiwan
Solenoid Valve	AIRTAC	Taiwan
Reducing Motor	GPG	Taiwan
PLC	Omron	Japan
All Switches	Siemens	Germany
Heating Elements	Home-made	China
Cutter	Home-made	China

Shrink Tunnel
Item Name	Brand	Remarks
Solid Relay	Aole	Taiwan
Reducing Motor	GPG	Taiwan
Recycling Motor	Surfon	Taiwan
Temperature Controller	Autonics	Korea
Frequency Inverter	Schneider	France
All Switches	Siemens	Germany
Insulation	Aluminum Silicate	5cm thickness
Intermediate Relay	Siemens	Germany
