Automatic Shrink Packing Machine (MTS 400LB + MTS 4525B)
Product Detail

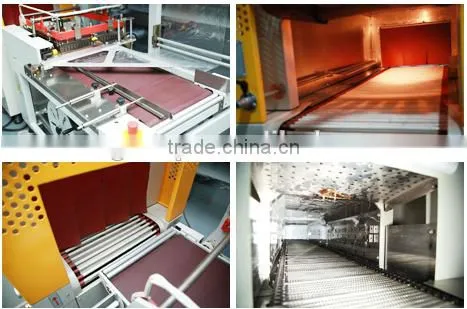

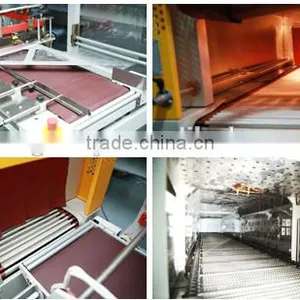

This automatic L-Bar Sealer Shrink Wrap Machine with POF film.
- After products delivered onto the sealing machine, it automatically delivering film, bag-wrapping, cutting and sealing, shrinking.
- food, beverage, medicine, cosmetic, etc
- Product Feature
- 1) This automatic L-Bar Sealer Shrink Wrap Machine uses a belt to belt transfer system together with a
synchronized film advance to transfer product from the in feed belt into the L-bar sealing area
2) This automatic L- bar sealer is a production sealing machine capable of speeds up to 25 packages per
minute - depending on package size and configuration of product
3) Full closed packing. Firstly cutting and sealing, then delivering into shrinking tunnel to be shrunk.
4) After products delivered onto the sealing machine, it automatically delivering film, bag-wrapping,
cutting and sealing, shrinking.
5) Multi pin perforator wheel for air evacuation
6) Teflon coated sealing blade
7) Film rack-cradle roller style or film cores and shafts
8) Film rack side adjustable for perfect alignment of film rack and inverting head
9) Power film unwind
10) Film inverter for inline product feed with hand wheel for product adjustment
11) Omron digital temperature controller with PID function
12) Horizontal and vertical photocell for package detection
13) Safety shut down switches
14) Able to pack single or multiple packages
15) Seal head height-max 130mm
16) Widely used in medicine, stationery, hardware tools, food, toys, cosmetic, electronic products, etc.Technical parameter
Model MTS 400LB (sealing machine) MTS 4525( shrinking tunnel ) Machine dimension L×W×H(mm) 1685×828×1480 1300×700×1465 Max packaging size L+H(mm) H<130 ≤500 700×350×200 Max packaging size W+H(mm) H<130 ≤430 / Max sealing size L×W(mm) 550×450x120 / Packing speed(pcs/min)
Conveyor speed(m/min)15-25 0-15M Net weight (kg) 225 260 Power (kw) 2.5 9 Power supply 1PH 110V/220V 50/60Hz 3PH 220v/380V 50/60Hz Air pressure (kg/cm2) 6-8 / Applicable film POF POF Case show
box shrinking, bottles shriking and other package shrinking
Our Factory:
Motech. has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing
Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of “pack”, and smart design ensure that hygiene standards and maintained at all times.
We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
Q1.Are you a manufacturer or a trading company ?
A:We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:
We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:
L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
