Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525)

Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-1
Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-2
Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-3
Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-4
Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-5
Semi Auto L Type Air Push Seal Machine and Heat Shrink Machine (MTS-5045B+MTS-4525) photo-6
US$ 7500.00 - 9800.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Glass, Metal, Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 110V/220V 50/60Hz
Power 2.5KW
Place of Origin Shanghai, China
Brand Name MOTECH
Model Number MTS 400LB
Dimension(L*W*H) 550*450*120
Weight 225KGS
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)

Product Detail

 This machine is suitable for small size package product.

  •  Adopted high quality parts,air push seal,perfect package appearance.
  •  5-20PCS/min
  •  Food, electron, c, stationery, hardware, cosmetic, drug.

Product Feature1) Full closed packing.

2) Semi-automatic operation. Place product on firstly, the machine do film feeding, bag wrapping, cutting and sealing, shrinking.
3) Temperature of the sealing knife is adjustable according to the film material
4) Temperature in shrinking tunnel also is adjustable.
5) Widely used in medicine, stationery, hardware tools, food, toys, cosmetic, electronic products, etc
 Technical parameter
 Model    MTS-5045B                MTS-4525
Max seal size      L500×W400                L1000×W450
Max package size  L500×W400×H350         L1000×W450×H250
power Single/220V      1.2KW/H Single,220V/Phase,380V   1.2KW/H
 Speed  800-1000//H 2000-3000/H
 Package size L1400×W700×H1000  L1330×W750×H1400
 Net  95KG  170KG





The Parts we Use

Sealing Part



Item Name

Brand

Remarks

Sensor

Banner

  U.S.A

Solid Relay

Aole

  Taiwan

Cylinder

AIRTAC

  Taiwan

Solenoid Valve

AIRTAC

  Taiwan

Reducing Motor

GPG

  Taiwan

PLC

Omron

  Japan

All Switches

Siemens

  Germany

Heating Elements

Home-made

  China

Cutter

Home-made

  China



Shrink Tunnel



Item Name

Brand

Remarks

Solid Relay

Aole

  Taiwan

Reducing Motor

GPG

  Taiwan

Recycling Motor

Surfon

  Taiwan

Temperature Controller

Autonics

  Korea

Frequency Inverter

Schneider

  France

All Switches

Siemens

  Germany

Insulation

Aluminum Silicate

5cm thickness

Intermediate Relay

Siemens

  Germany

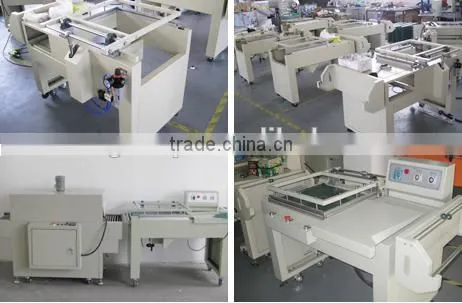

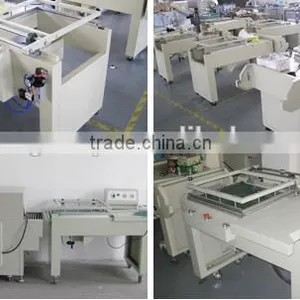

  • Machine DetailsSemi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)
  • Photo of Finished Products:
  • Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)
Packaging & Shipping



Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)

Semi auto L type air push seal machine and heat shrink machine (MTS-5045B+MTS-4525)
