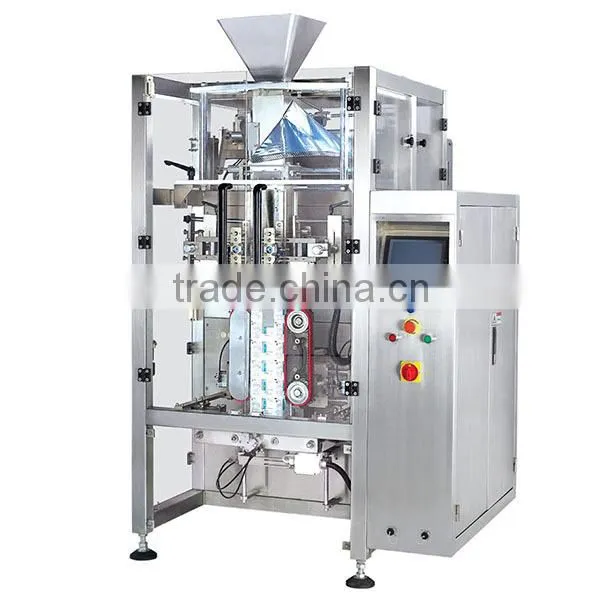

Help CenterMKDS-52OT Hot Quadrilateral Powder Packing Machine
Related Products
-
MKDS-72OTStainless Steel Automatic Vertical Form Fill And Seal MachineUS$ 23000.00 - 28000.00MOQ: 1 Piece -
SMT-ASPM006 Full-auto Alcohol Pre-pad Wipes Packing MachineUS$ 6000.00 - 15000.00MOQ: 1 Piece
-
MTP-T80SD Automatic Facial Tissue Packing MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
-
MR Series Tissue Packing MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
-
HY-2035(A) Single Line Wet Tissue MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
Technical characteristics:
1. using colour touch screen and stable and reliable biaxial high accuracy output PLC control, bag making, measuring, filling, sealing, cutting, finished in one operation code.
2. pneumatic control circuit and a control electric box are separated, the noise is small, the circuit is more stable.
3. using the double belt servo film: film pulling resistance is little, packaging bag forming, more beautiful, the belt is not easy to wear.
4. using the servo control, the realization of high precision positioning, accurate size.
5. by using the external film releasing mechanism, packaging film simpler and easier installation.
6. Deviation adjustment 6 packaging bag only adjustment can be on a touch screen, simple operation.
7. the machine adopts closed institutions, effectively prevent the dust into the inside of the machine.
With a variety of metering device, packaging can be of different materials.
Technical parameters :
Technical characteristics:
1 using the touch screen and a stable and reliable PLC control, bag making, measuring, filling, sealing, cutting, finished in one operation code.
2 box type packaging bag forming, more beautiful.
3 film pulling with servo motor control, to realize the high precision positioning, accurate size.
4 by using the external film releasing mechanism, easier installation of packing film.
5 longitudinal seal process, automatically adjust the deviation, greatly reduce the labor intensity.
6 type of bag making angle hot side, new luxury, is the world's mainstream pocket.
The applicable range of packaging:
With a variety of metering device, packaging can be of different materials.
Technical parameters :
| Type | KDS-520T |
| Measuring range | 1000ml(Max) |
| Bag-mking size | |
| Front width | 75-130(mm) |
| Side width | 40-80(mm) |
| With of side seal | 5-10(mm) |
| Bag length | 100-380(mm) |
| Packaging speed | 10-60(bags/min) |
| Packing material | OPP/CPP OPP/CE PET/PE etc. complex film |
| Max width of film roll | 520mm(:460mm) |
| Voltage three phase | 220VAC/50HZ |
| Machine power | 5.5KW |
| Dimension | 1500(L)x1220(W)x1800(H)mm |
| Machine weight | 600Kg |
Q1.Are you a manufacturer or a trading company ?
A:
We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:
Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:
Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:
Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:
1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:
We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:
L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
