Help CenterMTP-T80SD Automatic Facial Tissue Packing Machine
Related Products
-
MR Series Tissue Packing MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece -
HY-2035(A) Single Line Wet Tissue MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
-
DZP-250KT/400KT Wet Tissues Packaging MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
-
SZP-400KT Szp-Wet Towels Packaging MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
-
TMP-300ZF 400ZFAutomatic Drawable Square Facial Tissue Packing MachineUS$ 20000.00 - 80000.00MOQ: 1 Piece
Technical Specifications |
Description |
Scope of application |
Facial tissue, napkin tissue |
Infeed |
ASF Full automatic |
mechanical speed
|
80 packs per min |
Max. stable operation speed |
70 packs per min |
Film change over time |
≤2 min |
Napkin length |
120mm-210mm |
Napkin wiidth |
90mm-120mm |
Napkin heigth |
40mm-100mm |
Packing Material |
CPP |
Film Thickness |
0.04mm-0.05mm |
Max film diameter |
400mm |
Film core diameter |
76mm |
Max film width |
340mm |
Air pressure |
≥5MPA
|
Power supply |
380V/50HZ |
Total drive power |
6.02KW |
Total heating power |
4.6KW |
Voltage variation |
+/-10% |
I/O Input/ I/O |
24VDC |
I/O Output/ I/O |
24VDC |
Machine dimensions (L*W*H) |
4600*3600*1770mm |
Machine Weigth |
3500 KG
|
Machine standard color |
Gray, International color RAL 7032 |
Machine run control pattern |
Three axle servo and axle location control |
Packing format |
Three-dimensional wrap |
|

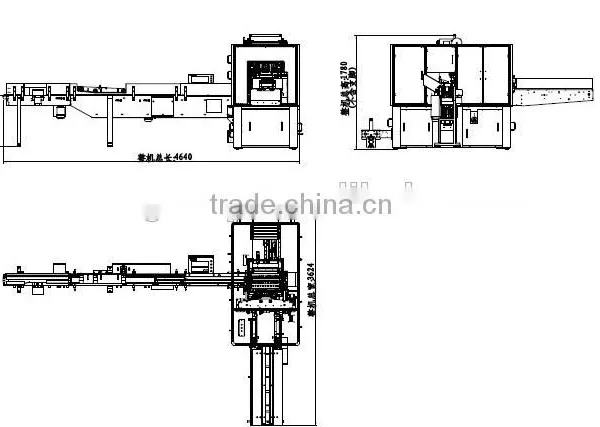

B. Machine layout |
Packing sample
Q1.Are you a manufacturer or a trading company ?
A:
We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:
Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:
Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:
Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:
1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:
We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:
L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
