Education Visualizer P06,document and 3D Object Presenter, Teaching Aid Equipment

Education visualizer P06,document and 3D object presenter, teaching aid equipment

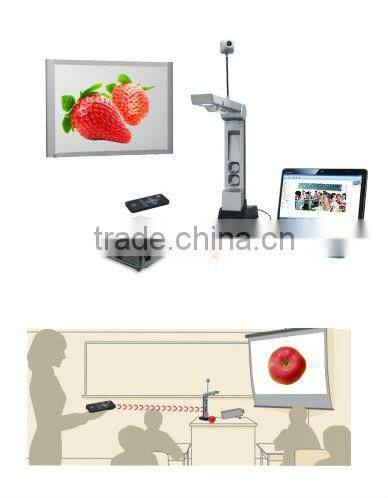

The Dual-Mode Document Camera with two camera design, supports real-time display document and object, scan paper document, object to high-quality digital files and work as webcam to face capture. It is the quick and easy way to allow you to manage, edit, send or upload them to the cloud, which apply for education industry, health care institutions, enterprises,etc.

Hardware Operation

VGA mode: Connect it with any VGA displayer such as projector or LCD monitor via VGA cable, operate it through remote controller or key buttons.

USB mode: Connect it with PC via USB cable, operate it with the multifunctional application software which has been pre-installed in PC, whatever documents, books, pictures, objects and other teaching materials can be gained easily and quickly.

Functions of the remote controller

Remote controller with distance of 8 meters and only be used in VGA mode, try to point the infrared receiver of the product when operate the remote controller.

1,Power: Press it for 3 seconds to power on &off the device.

2,Lighting: Press it to turn on & off the light

3, PC/Visualizer:Switch between PC mode and Visualizer mode

4,Capture: Take photo of the document or object

5,Zoom in/out:Zoom in and Zoom out the image

6,Freeze:Freeze the image

7,Previous/Next: View image

8,Auto/Confirmation:In browse mode,press it to choose the image,

                   in visualizer real time displayer mode,

                   press it to automatic balance, auto exposure.

9,Resolution:In visualizer mode,press it to change among SVGA,XGA,

  SXGA,720P and 1080P.

10,Shift focus:Auto focus

11,Browse:Press it to browse the scanned image

12,Delete:Delete the scanned image

13,Esc:In browse mode, press it to exit and enter into visualizer mode

14,Rotation:In visualizer mode,press it to rotate image

15,Mirror:In visualizer mode,press it to mirror image

16,Image/Text: Press it to switch image and text.

17,Title freeze:In visualizer mode,press it to freeze the title of the text.

18,Screen split:In visualizer mode,press it to split one screen into two screen,each screen can be in different style by press this button, and press it one more time to recover.

19,Color mode:Cycle key, in visualizer mode,pressing it to switch among color  /monochrome / negative.

Working in VGA mode

1.Plug AC adapter to DC in port of the product, and press“ONOFF”button to turn on product.

2.Connect the product with projector or any VGA displayer via VGA cable

3.Press the function key or click the remote controller to operate the product

Working in PC mode

1.Power on product

2.Connect product to PC via USB cable, the scanner will be detected by computer.

(The way to check whether scanner connected with computer well is open “device management” from computer and see if there is new USB video device under option “Image device”.)

Remarks: In VGA mode, press the button of PC/Visualizer, the VGA signal will be transfer to PC mode.

When used with PC, there should be a special software be installed in PC.

Details about how to operate, please refer the software manual in software CD-ROM
